Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 179
Confidential

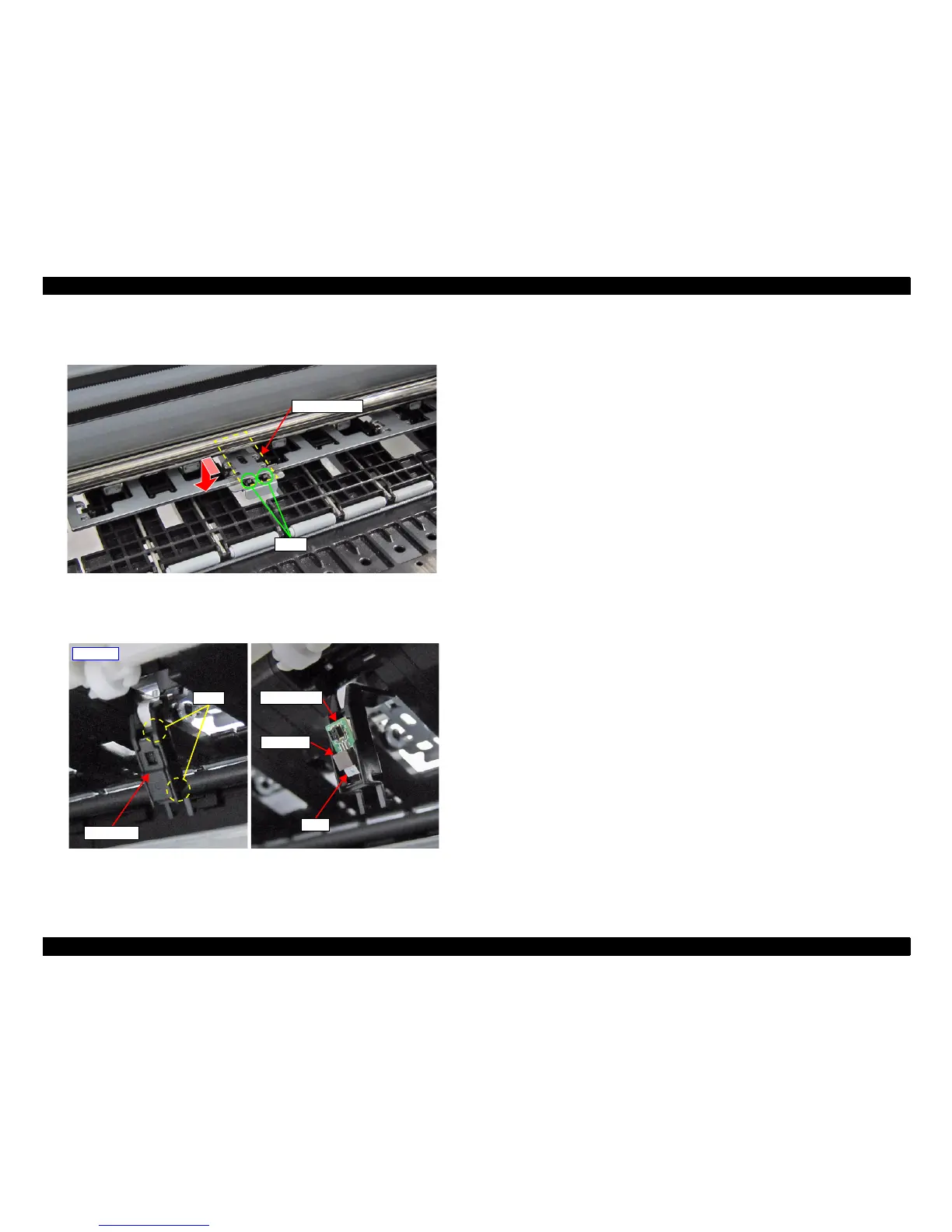

8. Release the two hooks on the PE Sensor Assy, and remove the PE Sensor Assy to
the back side.
Figure 3-139. Removing the PE Sensor Assy
9. Disengage the two hooks, and remove the Sensor Cap.
10. Disconnect the FFC from the PE SENSOR.
Figure 3-140. Removing the PE SENSOR (THICK PAPER)
PE Sensor Assy
Hooks
Hooks
Sensor Cap
Back side
PE SENSOR
Connector
FFC
