Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 189
Confidential
5. Disconnect the connector (CN17) on the TAKE-UP REEL MAIN BOARD.
6. Remove the four screws that secure the TAKE-UP REEL SWITCH, and remove the
TAKE-UP REEL SWITCH from the Panel Cover.
B) Black, Phillips, Bind P-tite screw M2x7 (bit: No.1): 4 pcs

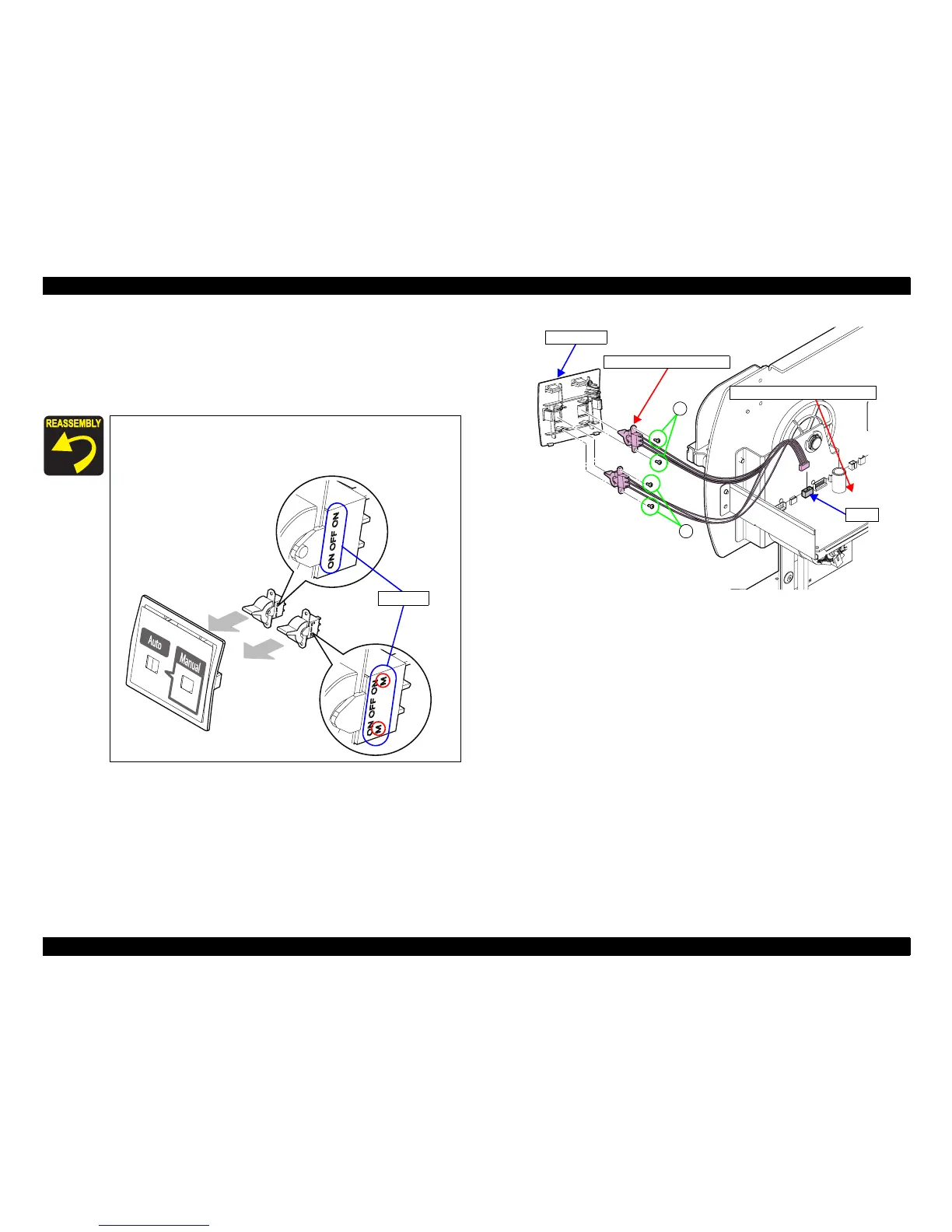

Figure 3-157. Removing the TAKE-UP REEL SWITCH
Install the TAKE-UP REEL SWITCH with the “ON/OFF/ON”
inscription to the right. And install the TAKE-UP REEL SWITCH
with “M” inscription to the Manual side.
Inscription
TAKE-UP REEL SWITCH
CN17
Panel Cover
B
B
TAKE-UP REEL MAIN BOARD
