SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 191
Confidential
5. Remove the six screws that secure the TAKE-UP REEL PS BOARD, and remove the
TAKE-UP REEL PS BOARD.
D) Black, Phillips, Bind S-tite M3x6: 6 pcs
6. Disconnect the connectors (CN1, CN2) on the TAKE-UP REEL PS BOARD.

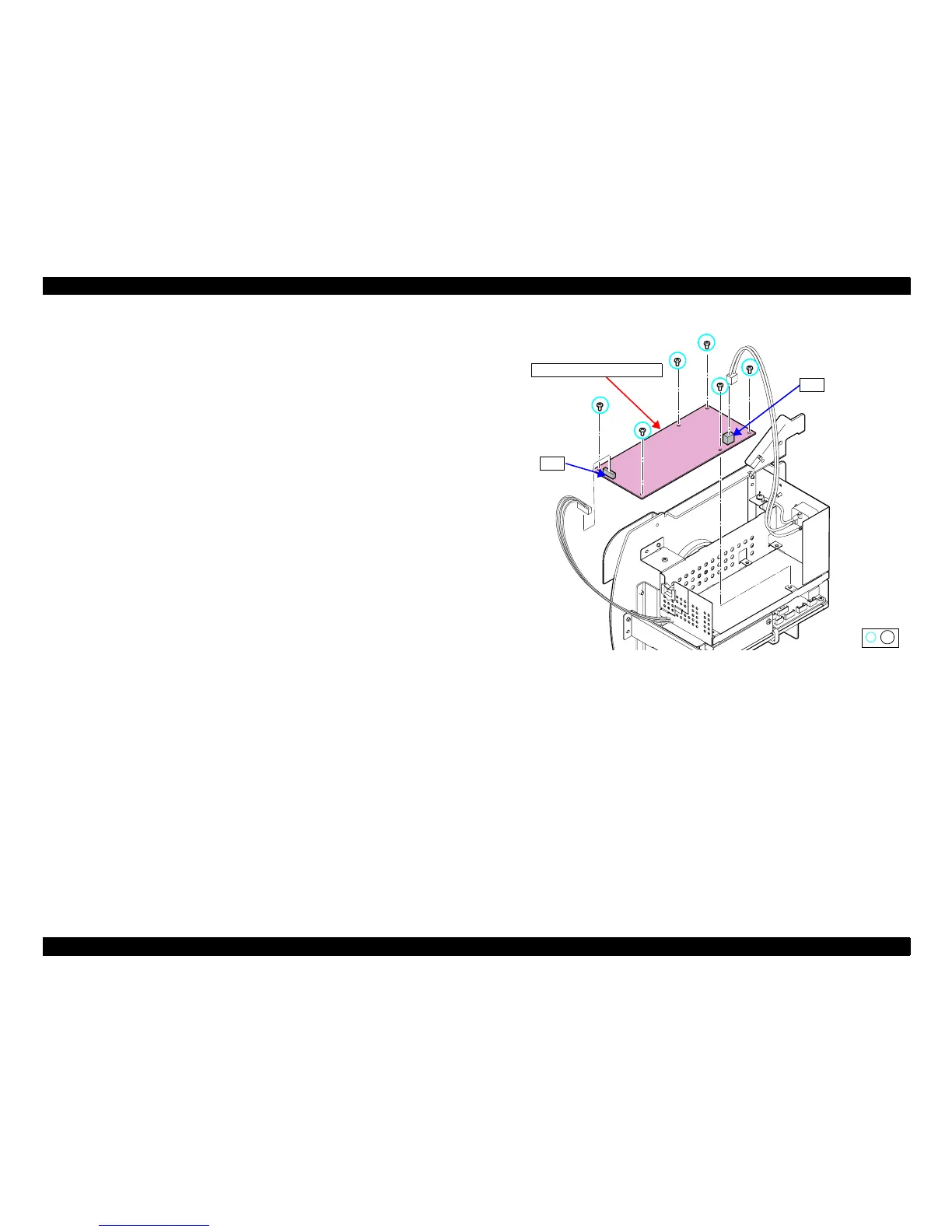

Figure 3-160. Removing the TAKE-UP REEL PS BOARD
TAKE-UP REEL PS BOARD
CN1
CN2
D
