ADJUSTMENT Head Related Checks and Adjustments 255
Confidential

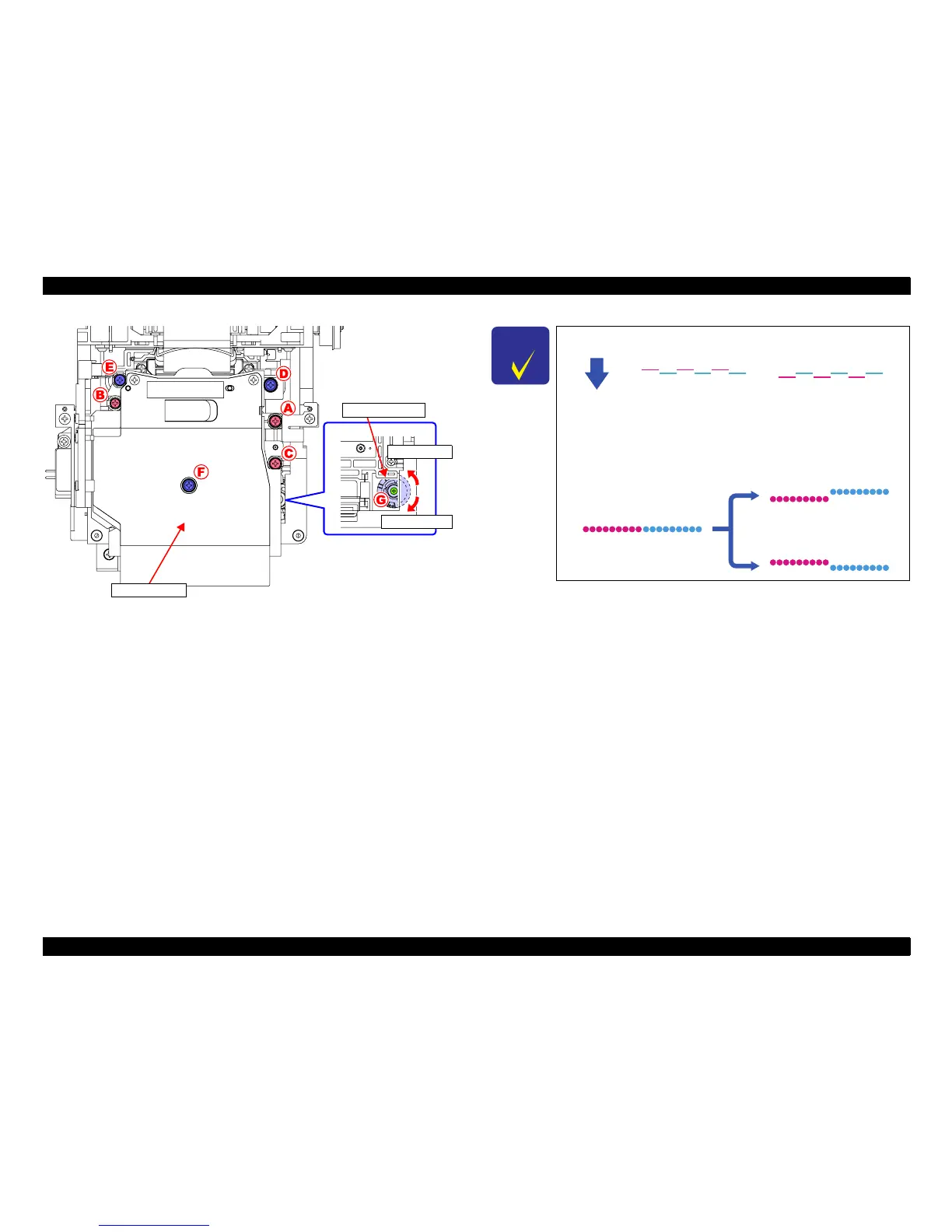

Figure 4-47. Correcting the Head Inclination
8. Tighten the three screws to secure the head holder. Tighten them in the order
shown below. D - E - F
9. Tighten the screw to secure the adjustment knob.
10. Tighten the three screws to secure the DAMPER KIT. (there is no particular order
to tighten them.)
11. Attach the CR COVER.
12. Print the pattern and see if the inclination is corrected. If not, repeat the procedure
until the pattern becomes normal.
13. When finished, click [Finish] and turn the printer OFF.
DAMPER KIT
Minus direction
Plus direction
Adjustment knob
C H E C K
P O I N T
îš„ For which direction to turn the knob, see below.
îš„ The lines move about one-dot's width when the knob is moved
by five or six notches.
When Cyan lines lie below
Magenta lines, turn
clockwise
When Cyan lines lie above
Magenta lines, turn
counterclockwise
Paper feed
direction
To Next Page
