5. Turn the printer ON.
6. Start the Service Program and select PF Belt Tension check.
7. Click [Run].
The PF roller rotates 30 revolutions.

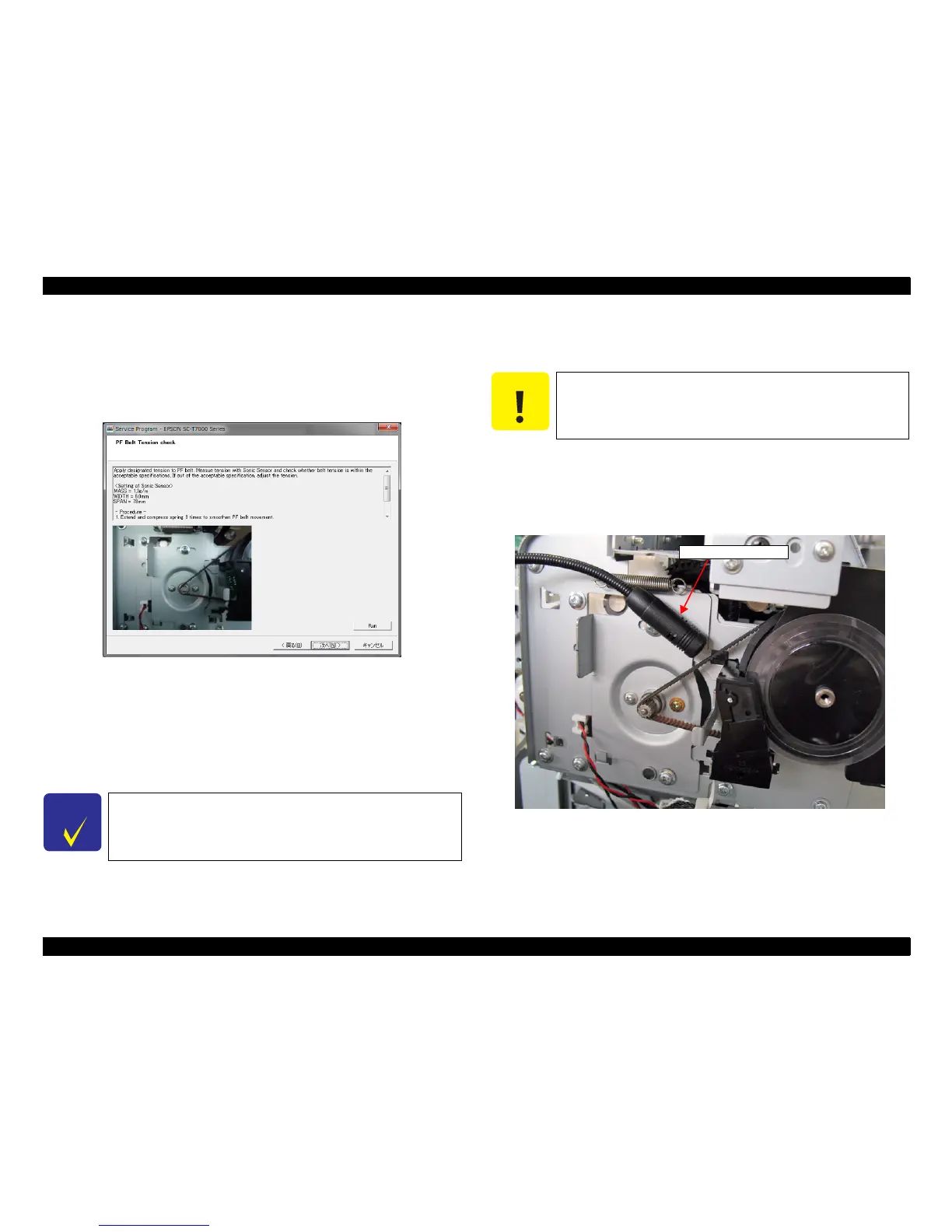

Figure 4-58. [PF Belt Tension check] Screen
8. Input the following information on the belt into the tensimeter.
MASS: 1.3 g/m
WIDTH: 6.0 mm/R
SPAN: 78 mm
9. Bring the microphone of the tensimeter close to the belt as shown in Figure 4-57.
10. Click [MEASURE] on the tensimeter, and flip the timing belt with tweezers or a
similar tool.
11. Measure the belt tension three times, and check if the average is within the
standards.
Within the standards: Go to Step 12
Out of the standards: Go to Step 2
Figure 4-59. PF Belt Tension Check
12. Click [Finish].
13. Turn the printer OFF to finish the adjustment.
C H E C K
P O I N T
The distance between the microphone and the belt surface should
be 5 mm or less, but do not let it touch the belt.
C A U T I O N
Flip the timing belt as weak as the tensimeter can measure it.
Be careful not to let the microphone touch the timing belt when
flipping the belt.
Measuring microphone
To Next Page
