Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Parts Diagram 74
Confidential

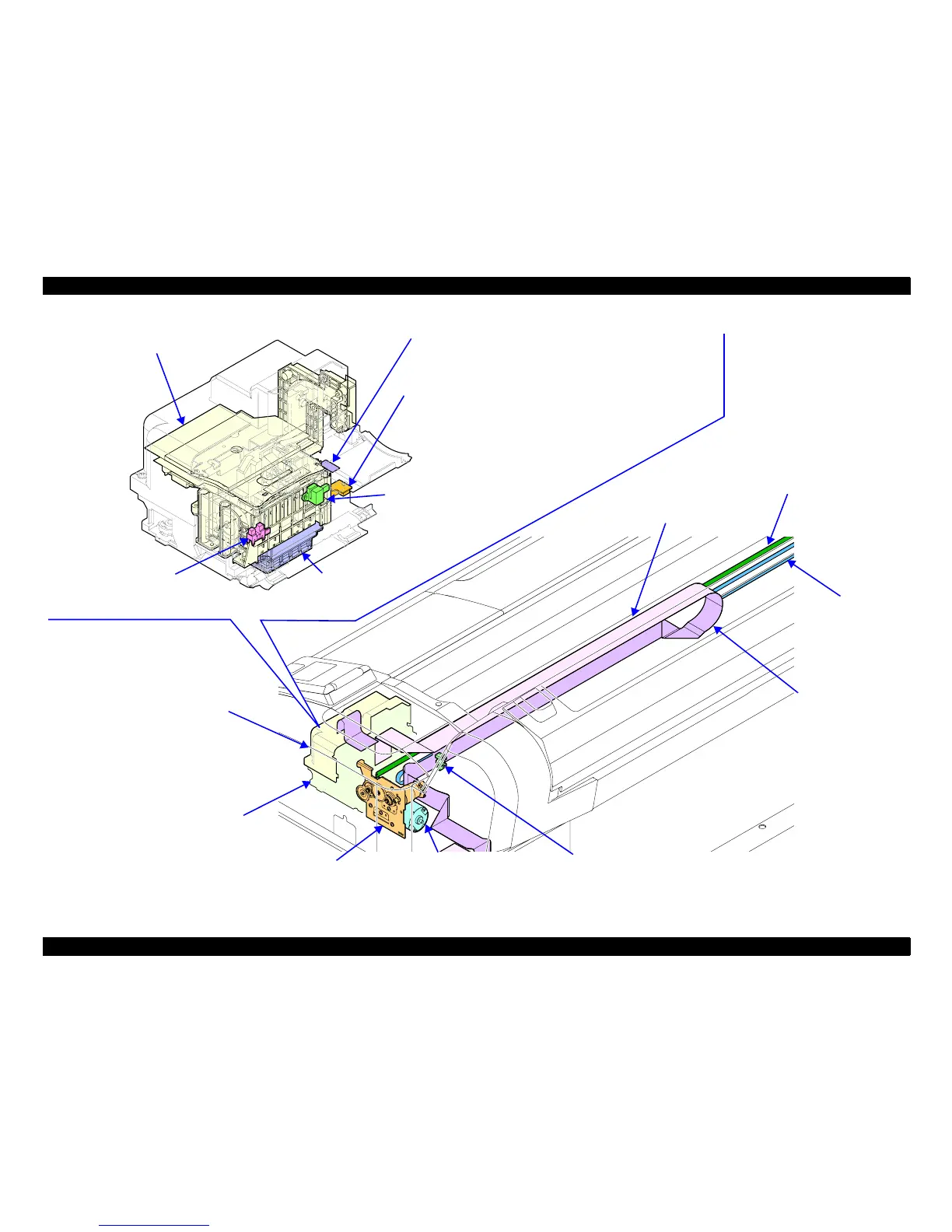

Figure 3-5. Carriage Mechanism
 CR COVER (p. 122)
 DAMPER KIT (p. 123)
 PRINT HEAD
(p. 126)
 CR SCALE (p. 135)
 CR FFC (p. 131)
 CR TIMMING BELT
(p. 139)
 CR MOTOR (p. 141)
The motor to drive the CR UNIT.
 CR HP SENSOR (p. 143)
Detects the home position of the CR UNIT.
 APG UNIT (p. 144)
 PG SENSOR (p. 146)
Detects the origin position of the
platen gap.
 IM SENSOR (p. 159)
Reads print patterns in the following adjustments.
•Auto Bi-D adjustment
•Auto Uni-D adjustment
•Roll paper remaining
amount detection
•Auto PF adjustment
•IMS sensitivity adjustment
 CR UNIT (p. 156)
 HEAD FFC (p. 127) (x2)
 PW SENSOR (p. 161)
Detects the width of paper on the platen. This is a reflective photo
interrupter and detects the difference of the amount of reflection between
paper (white) and the platen (black).
 CR ENCODER (p. 138)
Detects the pattern of the CR
SCALE to control the position of
the CR UNIT.
•IMS position adjustment
•IMS inspection
•Head inclination adjustment
•Head slant adjustment
