DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 91
Confidential
13. Disengage the two hooks that secure the CARTRIDGE COVER SENSOR, and
remove the CARTRIDGE COVER SENSOR from the IH COVER.

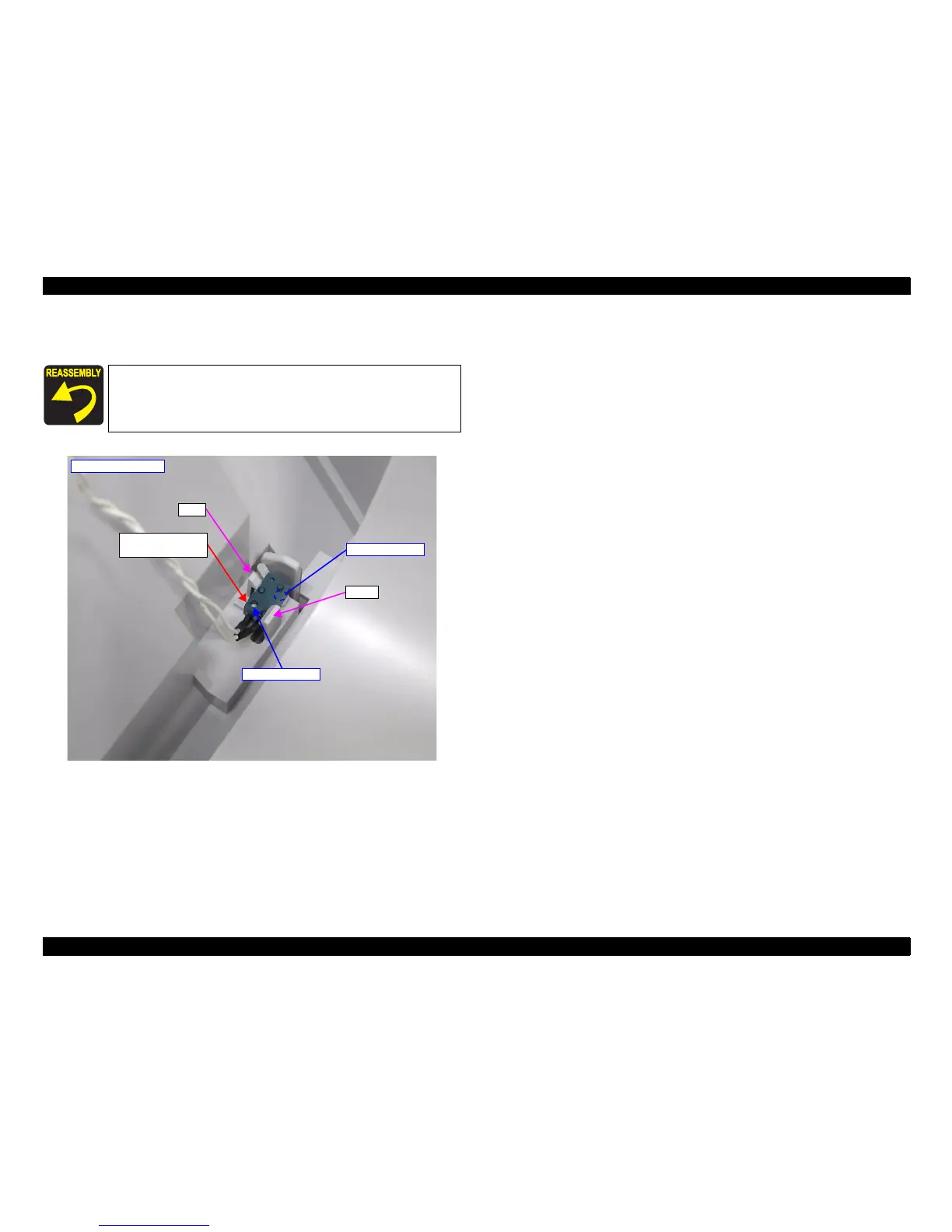

Figure 3-18. Removing the CARTRIDGE COVER SENSOR
Pay attention to the positioning points (See Figure 3-18).
CARTRIDGE
COVER SENSOR
Hole
Hook
Inside of IH COVER
Positioning point
Positioning point
