EPSON Stylus Color 980 Revision A
Adjustment Adjustments 138

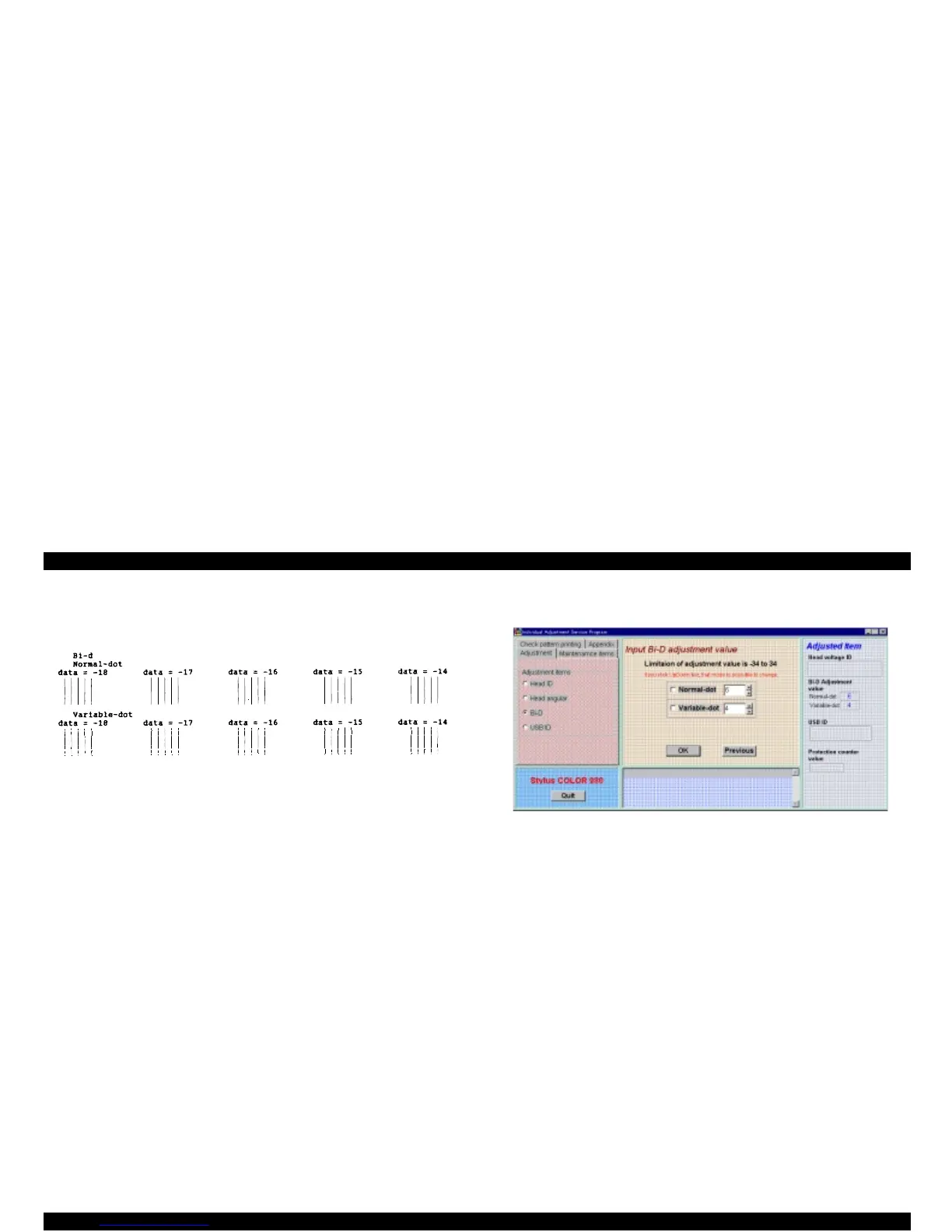

Figure 5-10. Bi-D Adjustment Pattern Sample
9. The sample pattern is printed as shown Figure 5-10. Select the
value the most closely aligned vertical line. (In case of Figure 5-10,
data No.-16 is most closely aligned at normal dot)
10. Click “Previous” to return to the Bi-Directional Adjustment Screen
(Figure 5-8).
11. Select “Input Bi-D adjustment value”.
12. Click “OK”.
13. The following screen appears.
Figure 5-11. Bi-D Adjustment Mode Screen
14. Set the normal dot and vertical dot values according to the value on
step 9. (In case of Figure 5-10, Set to the value to -16 at normal dot.)
NOTE:
Regardless of the value you have input, the center value (selected
value) in the next Bi-D pattern sample will be “0”. The value in the
range from -34 to 34 can be input.
