Stylus Pro 4880 Field Repair Guide 1/17/08
Print Head Replacement Procedure Printer Component, Software Item, LCD Display, Printer Button Page 83.

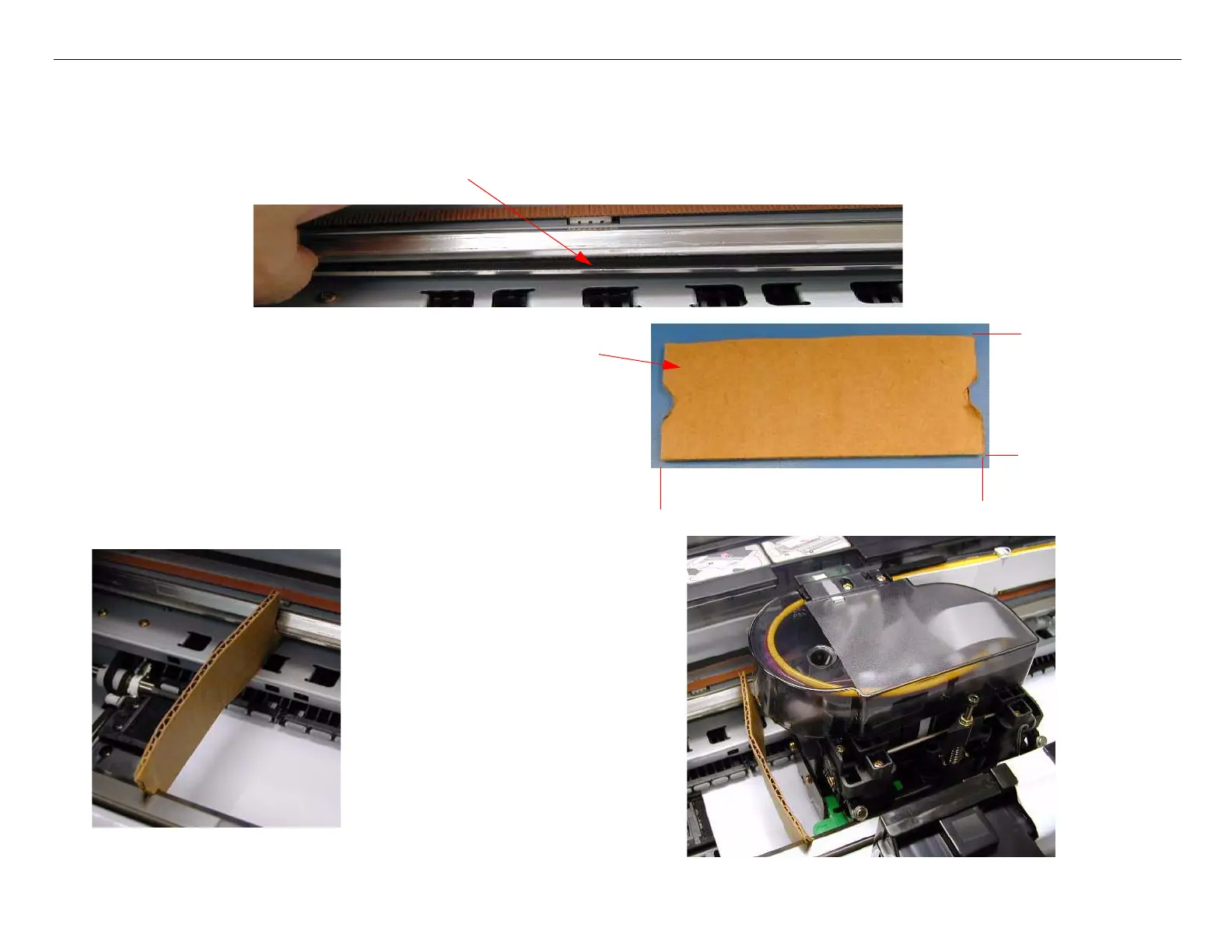

7. Carriage Rail Cover (Wheel Track) protection steps.
The Carriage Rail Covers will separate and bend when removing the Print Head if not protected.
1. Make a double wall cardboard jig as shown.
5” long
1.75” wide
.5” wide, and1/4” deep V slot
2. Place the jig so that the
V slots support the Car-
riage Rail Covers
Note:The jig should be placed
so that it supports the
Carriage Rail Covers
beside to the Print
Head, when it is in the
removal position (see
step 8).
To Next Page
