EPSON Stylus Scan 2000
Revision A
Maintenance
Lubrication
137

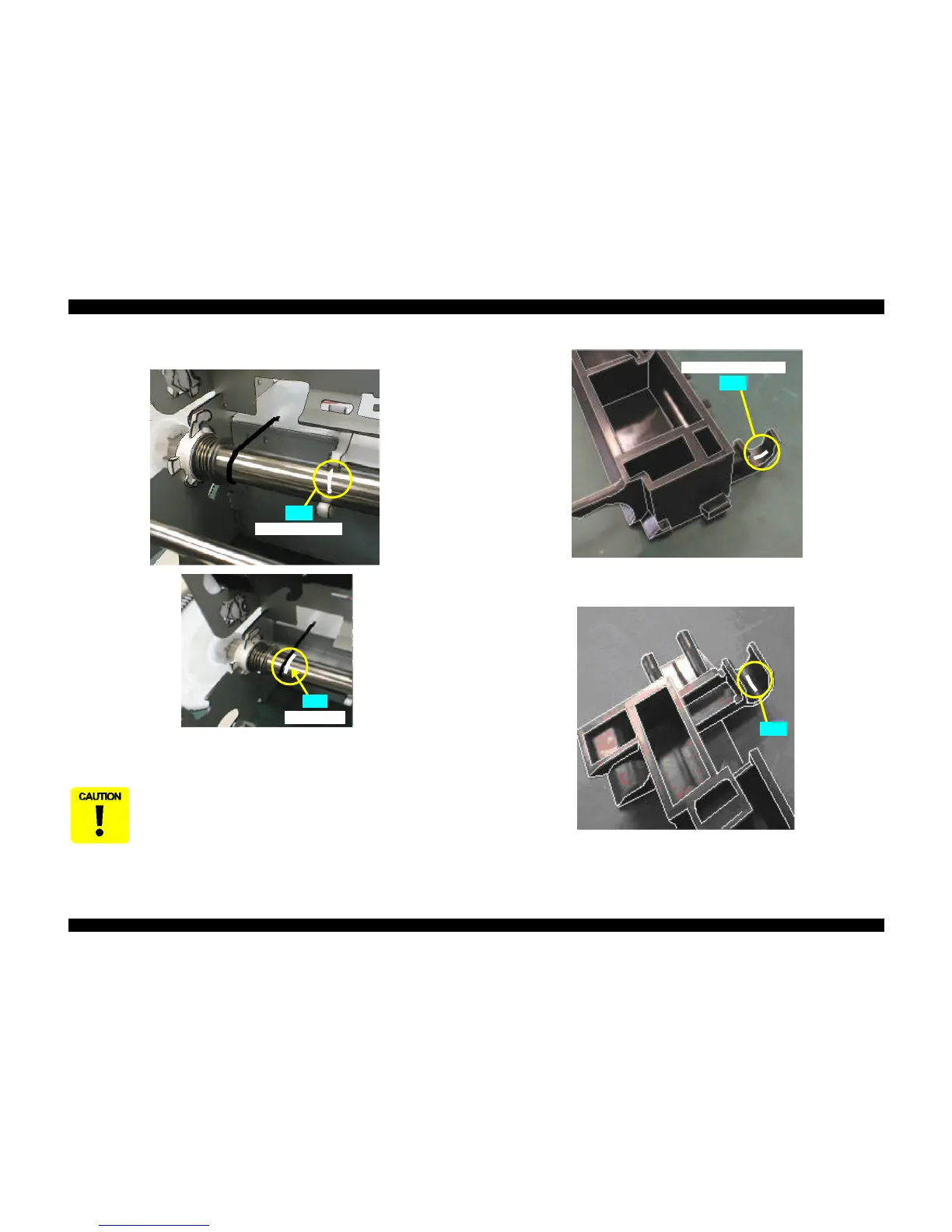

Figure 6-1. #1 Paper Feed Roller x two places
Figure 6-2. #2 Front Paper Guide - A
Figure 6-3. #2 Front Paper Guide - B
When rotating the Paper Feed Roller, only touch the projections
on the outside surface of the 73.6 precision gear. Do not touch the
teeth of the gear.
ROLLER, PF UNIT
G-26
ROLLER, PF
G-26
PAPER GUIDE, FRONT
G-26
G-26
