MULTI-FEED PREVENTION MECHANISM
Like the Stylus COLOR 740 ASF, the ASF built in the Stylus Scan has the multiple-
paper-feeding-prevention mechanism to provide accurate and consistent paper feeding.
This mechanism prevents a sheet of paper from falling from the paper set position into
the paper path. A paper return lever in the mechanism pushes paper that may have
fallen off back onto the hopper. After this motion is completed, the LD roller starts
loading paper. The multiple-paper-feeding-prevention operation is described in the
following steps.
1. When the printer power is turned on, the ASF/Pump motor rotates counterclockwise to
detect ASF home position. Then the motor rotates clockwise specified steps to set the
LD roller and paper return lever to their proper positions. (See “Standby State” in
Figure 2-9.)
2. When the paper loading signal is sent from the PC or the Load/Eject button is pressed,
the PF motor turns counterclockwise to let the LD roller load paper. (See “Paper Pick
Up State” in Figure 2-9.)
3. Due to the design of the ASF, the LD roller loses friction on the paper and stops at the
point where the paper is fed by the PF roller. (See “PF Roller Paper Feed State” in
Figure 2-9.)
4. When the next print signal is sent or the Load/Eject button is again pressed, the PF
motor rotates clockwise a specified number of steps to set the LD roller and the paper
return lever in place. (See “Standby State” in Figure 2-9.)
NOTE: If no print signal is sent for a predetermined number of seconds in step 4,
the LD roller and the paper return lever automatically return to the
standby state.

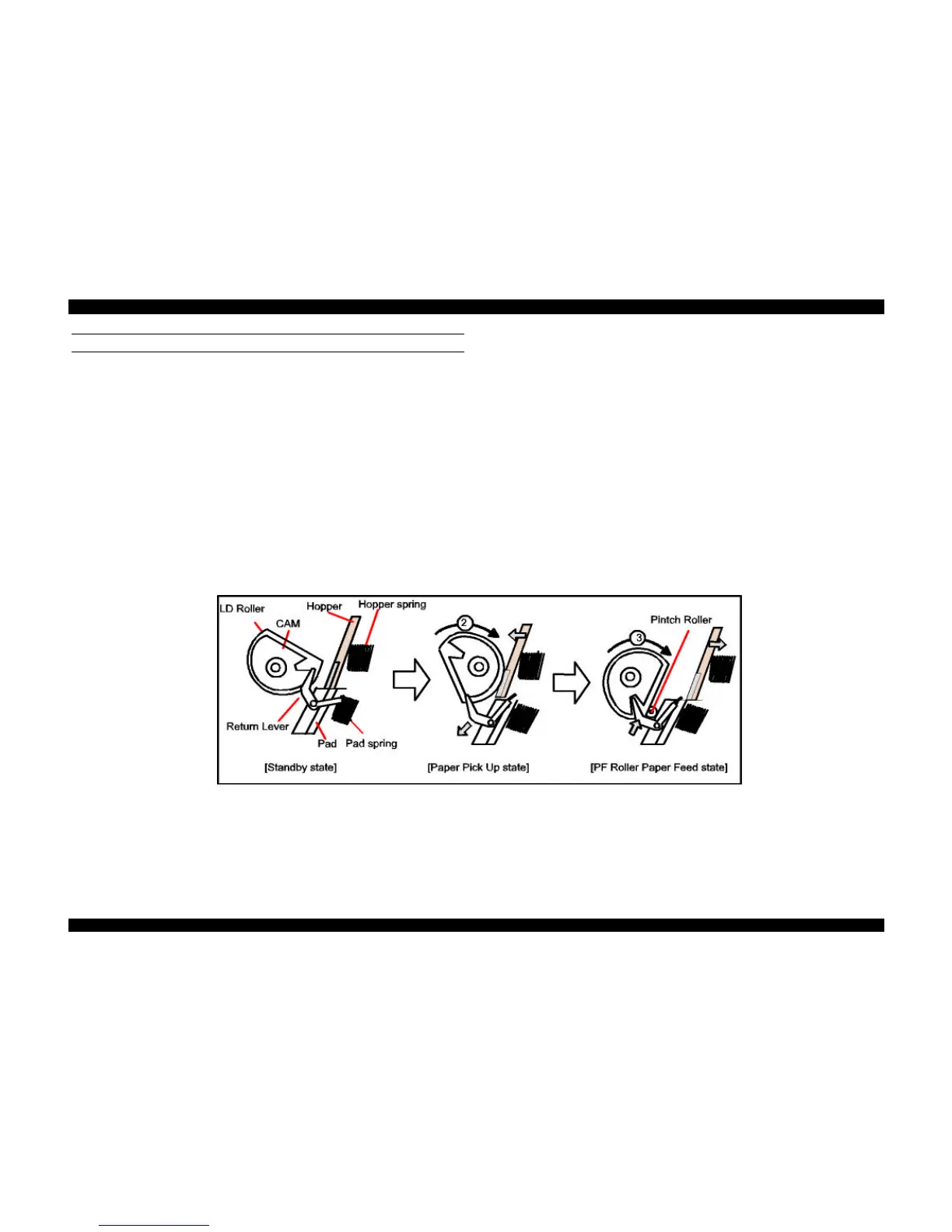

Figure 2-9. Multiple Paper Loading Prevention Mechanism (right side view)
