4.5.9 PF Encoder Sensor
 Parts/Components need to be removed in advance
Scanner Unit/ADF Unit/Upper Housing /Hinge/Middle Cover/Printer Mechanism/
Card Slot Cover/Main Board Unit/Left Frame
 Removal procedure
1. Peel off the acetate tape (x1) from the PF Encoder Sensor.
2. Release the PF Encoder FFC from the connector (x1) of the PF Encoder
Sensor.
3. Remove the screw (x1) that secures the PF Encoder Sensor, and remove the
PF Encoder Sensor.

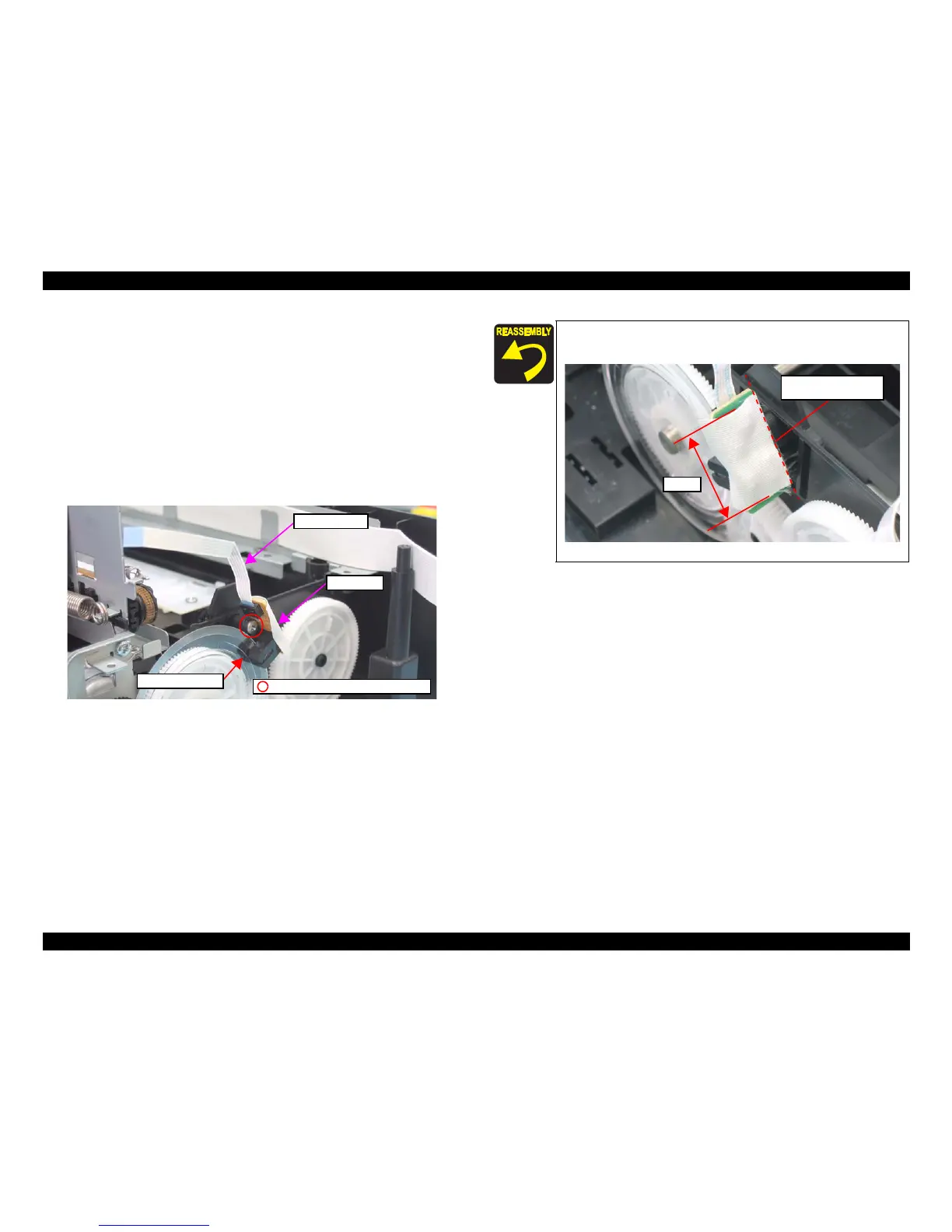

Figure 4-70. Removing the PF Encoder Sensor
C.B.P. 2.5x8, F/Zn-3C (4±1kgfcm)
Acetate tape
PF Encoder FFC
PF Encoder Sensor
When installing the PF Encoder Sensor, be sure to attach the
acetate tape (x1) referring to the figure below.
Figure 4-71. Acetate tape position
30mm
Align here with edge of
the PF Encoder Sensor
