EPSON WorkForce 600/EPSON Stylus OFFICE TX600FW/BX600FW/EPSON Stylus SX600FW/ME OFFICE 700FW Revision A
TROUBLESHOOTING Error Indications and Fault Occurrence Causes 59
Confidential

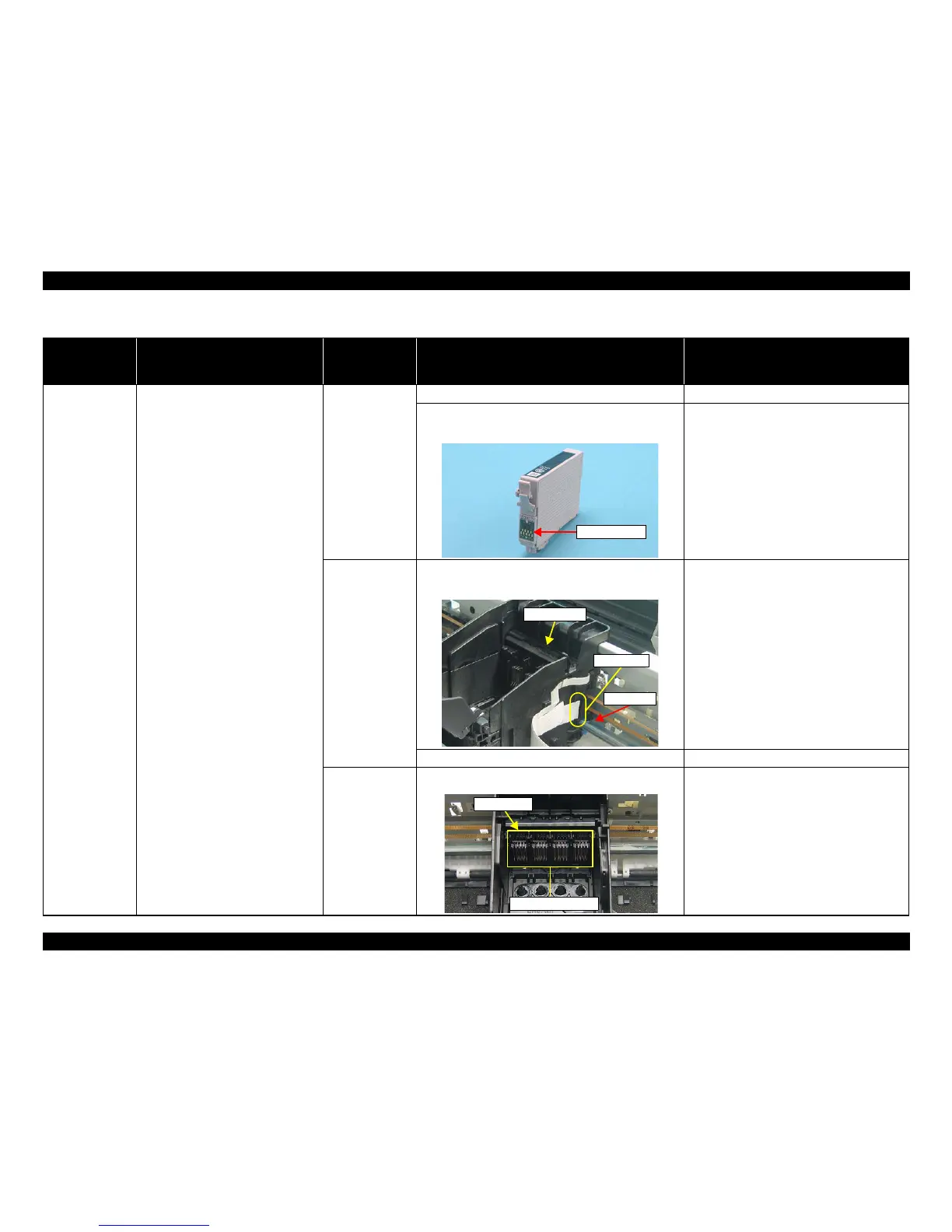

Table 3-7. Check point for Ink end / No ink cartridge / Incorrect ink cartridge error according to each phenomenon
Occurrence
timing
CR position
Detailed phenomenon
Defective
unit/part name
Check point Remedy
• Power on
•Inside HP
After the printer detects that the carriage
is at the home position, an error is
displayed.
Ink Cartridge
1. Check if Ink Cartridge is properly installed. 1. Install the Ink Cartridge properly.
2. Check if the Memory Chip is not disconnected or not
chipped.
2. Replace the Ink Cartridge with a new one.
CSIC Board
1. Check if the Head FFC is connected to connector on the
CSIC Board.
1. Connect the Head FFC to connector on the
CSIC Board.
2. Check if the CSIC Board is not damaged. 2. Replace the CSIC Board with a new one.
CSIC Connector
3. Check if the CSIC Connector is not damaged. 1. Replace the CSIC Board with a new one.
Memory Chip
Connector
CSIC Board
Head FFC
CSIC Board
CSIC Connectors
