Erbe VIO 50 - Page 70

8 • Monopolar Modes
70 / 106
80113-101_V25087 2023-11

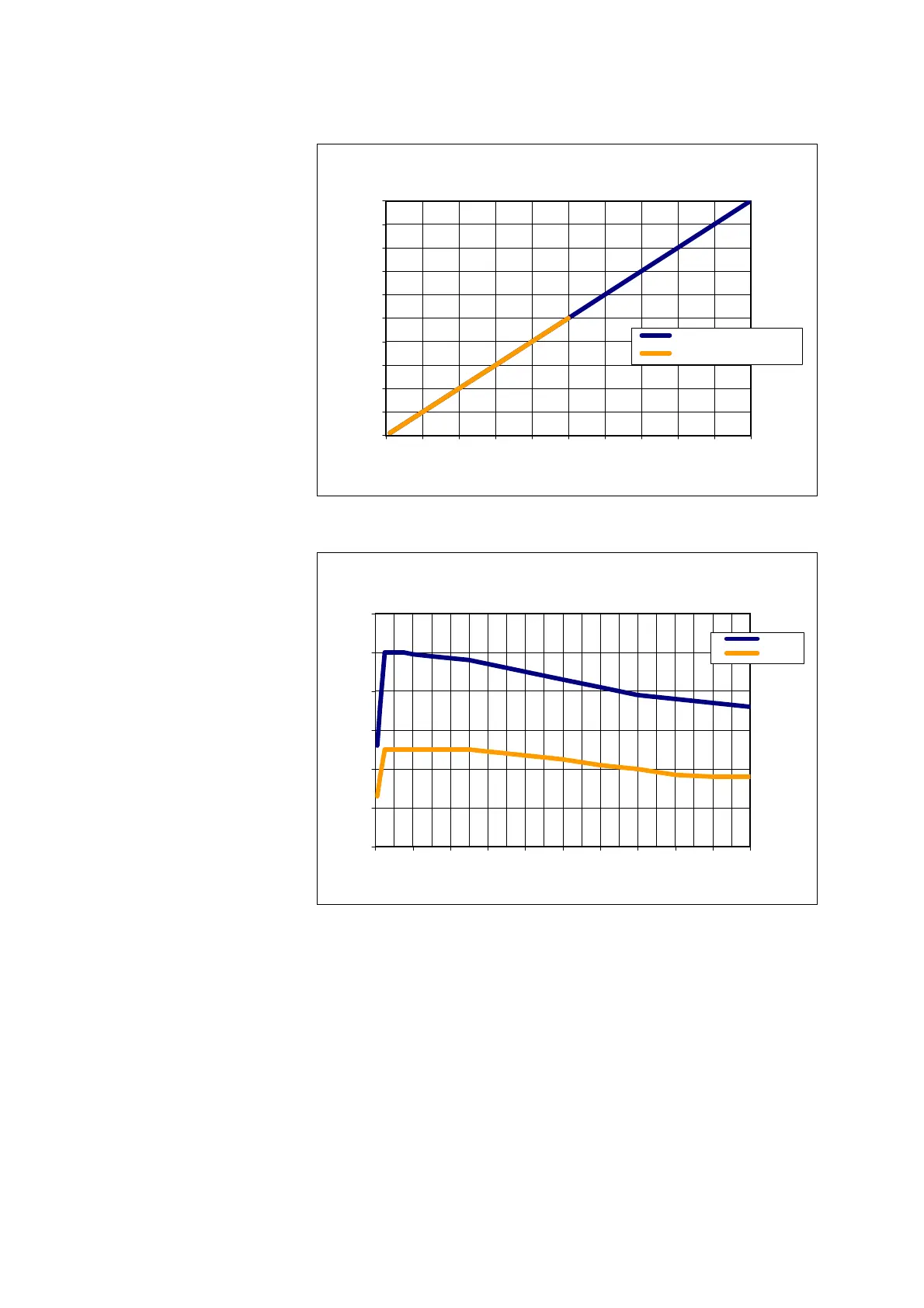

Diagrams
Fig. 8-1
Fig. 8-2
AUTO CUT
0
10
20
30
40
50
60
70
80
90
100
0 102030405060708090100
Power HF max. (W)
Power HF output (W)
VIO 100 C
VIO 50 C / VIO 100 C
R
L
=500 Ohm
AUTO CUT
0
10
20
30
40
50
60
0 200 400 600 800 1000 1200 1400 1600 1800 2000
Resistance (Ohm)
Power HF output (W)
50 W
25 W
VIO 50 C
