Monopolar socket
Cutting and coagulation modes
The following modes are available for the monopolar socket:
• AUTO CUT
• DRY CUT
• SOFT COAG
• FORCED COAG
Instrument compatibility

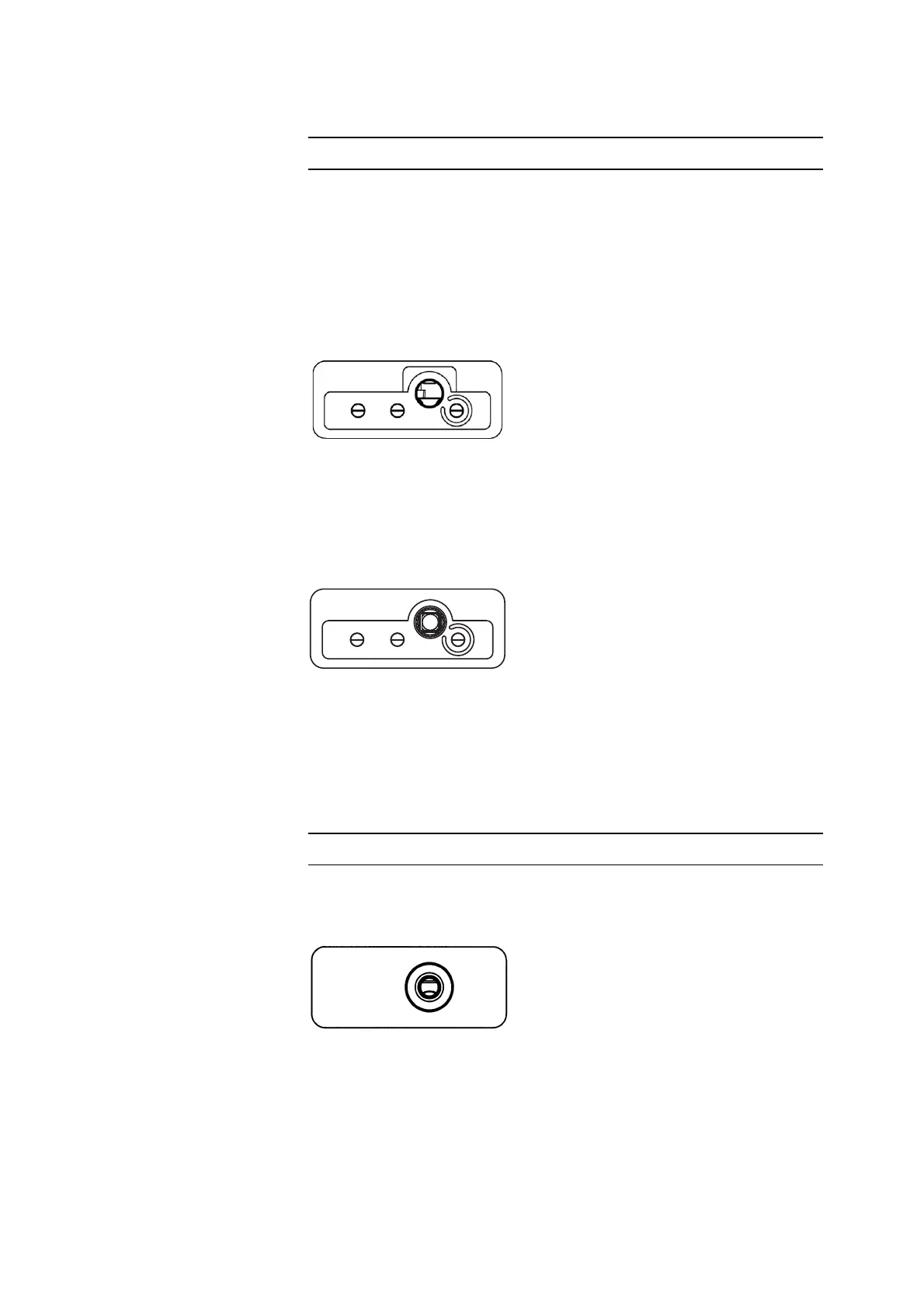

Socket module MO 3-pin Bovie
Fig. 7-3
REF No. 20140-622
You can connect ONE of the following connectors as required: a monopolar 3-pin con-
nector; a Bovie connector; a monopolar connector dia. 4 mm to the input marked blue.
Socket module MO 3-pin 9 / 5
Fig. 7-4
REF No. 20140-623
You can connect ONE of the following connectors as required: a monopolar 3-pin con-
nector; a monopolar socket based on Erbe standard; a monopolar connector dia. 4 mm
to the input marked blue.
Socket for neutral electrode
Function
The socket is used to connect a neutral electrode with monopolar modes.
Connector compatibility
Socket module NE 6
Fig. 7-5
REF No. 20140-640
The socket module is suitable for the following connectors: Erbe neutral electrode con-
nector Ø 6.35 mm.
