9 • Bipolar Modes
82 / 106
80113-101_V25087 2023-11

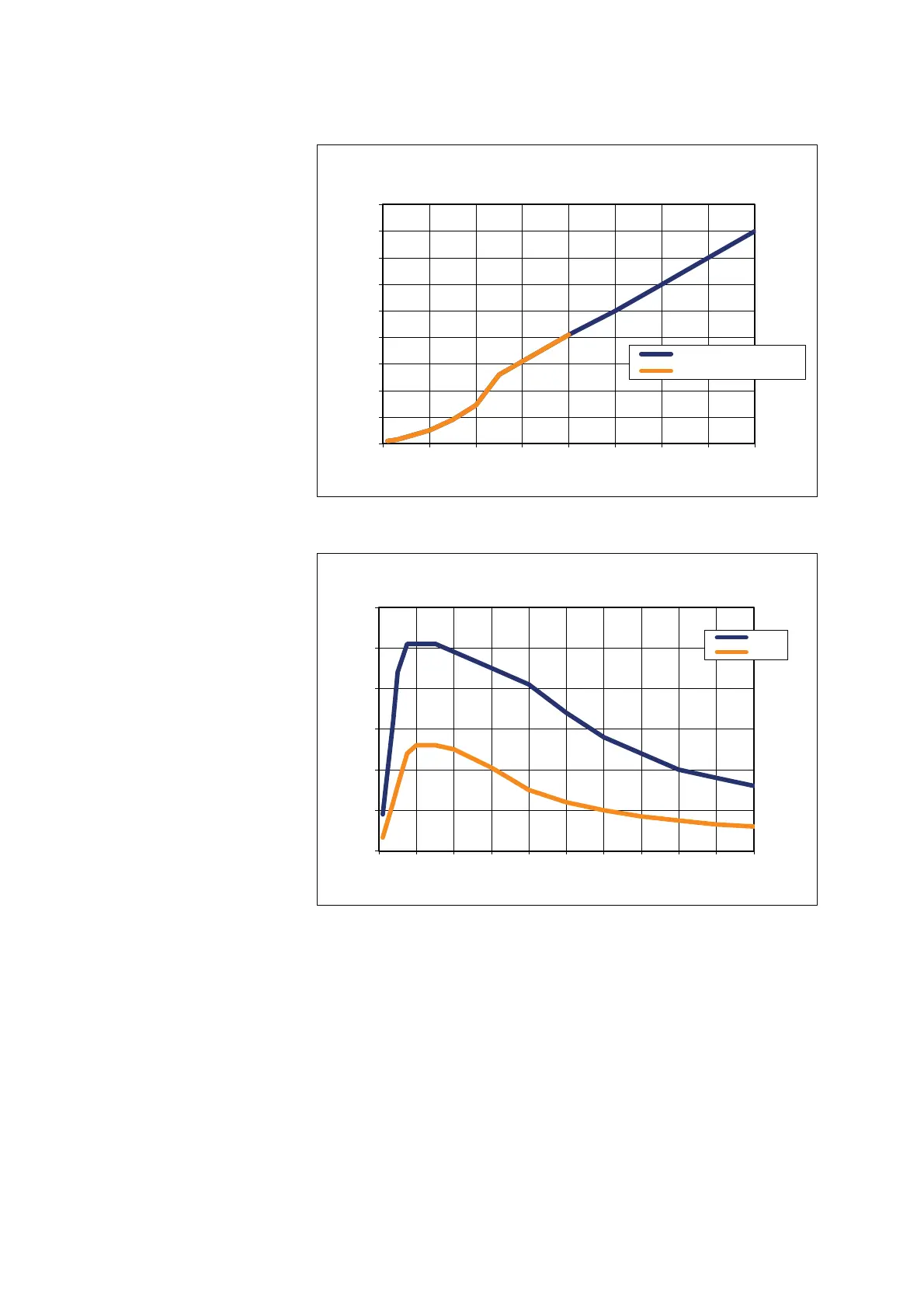

Diagrams
Fig. 9-1
Fig. 9-2
0
10
20
30
40
50
60
70
80
90
0 1020304050607080
Power HF output (W)
Power HF max. (W)
BIPOLAR SOFT
VIO 100 C
VIO 50 C / VIO 100 C
R
L
= 100 Ohm
0
10
20
30
40
50
60
0 100 200 300 400 500 600 700 800 900 1000
Power HF output (W)
Resistance (Ohm)
BIPOLAR SOFT
50 W
25 W
VIO 50 C
