10 • Installation
88 / 106
80113-101_V25087
2023-11
Note: When connecting the footswitch, make sure that you insert the 4 pins on the
plug of the connecting cable with the correct alignment into the corresponding con
-
tacts of the footswitch socket.
3. Connect the one pedal or two pedal footswitch VIO C to the footswitch socket (2).

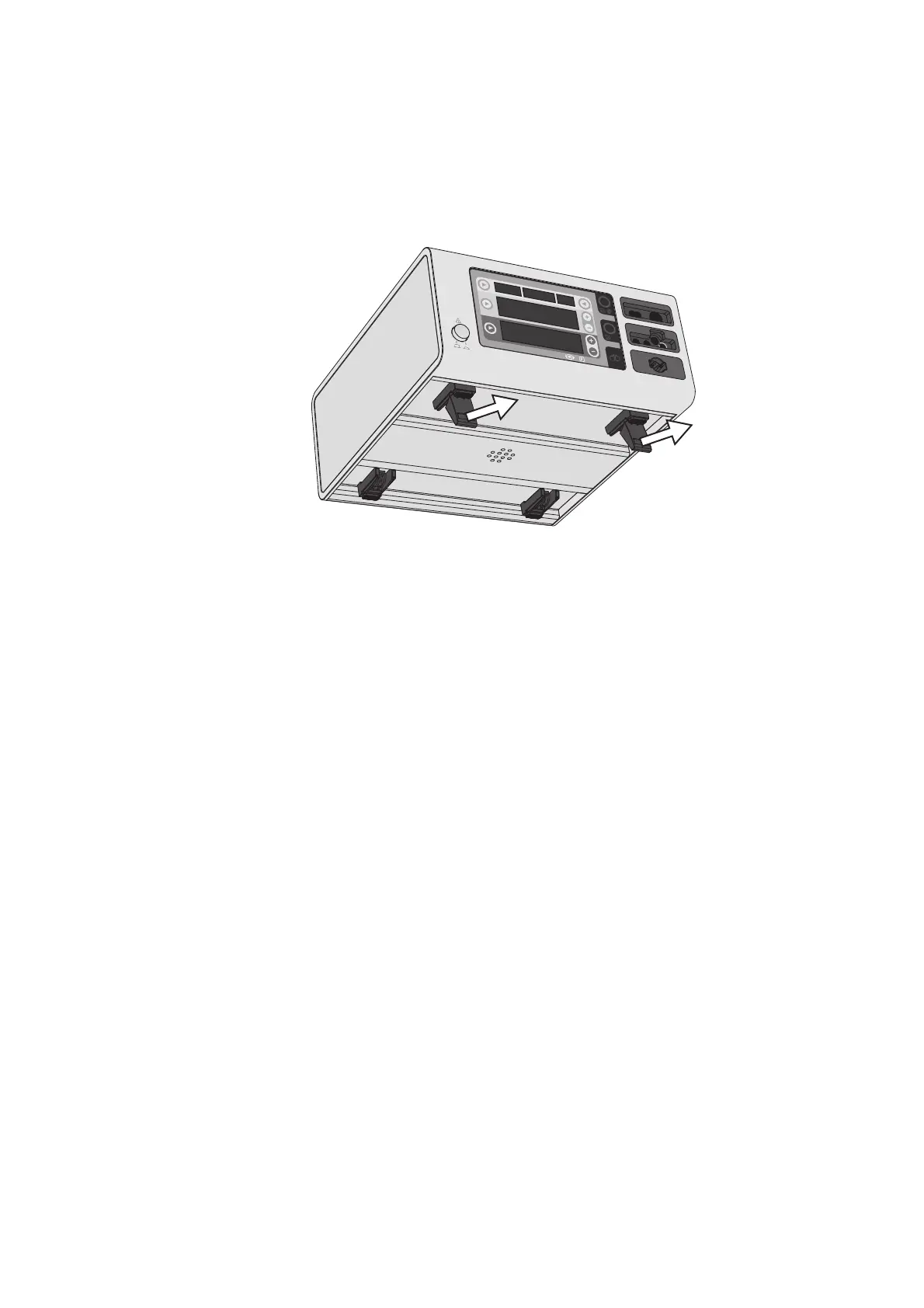

Fig. 10-2
4. Fold out the setting feet as required.
