7 MEMORY MANAGEMENT
0460 949 274
- 36 -
© ESAB AB 2015

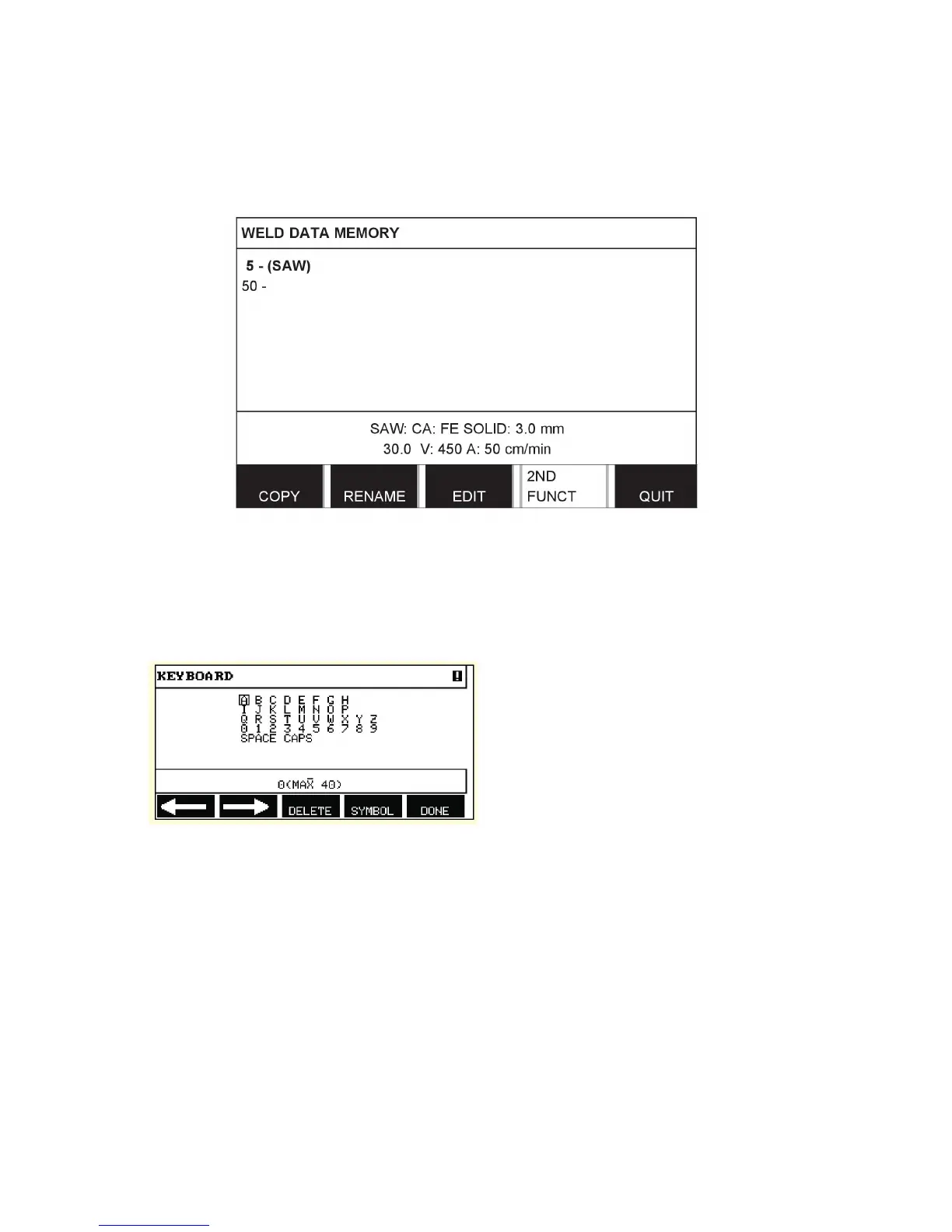

7.6 Name
To give a stored weld data set its own name, proceed as follows:
Press 2ND FUNCT. Select the memory position you want to rename and press RENAME.
Here you have access to a keyboard that is used as follows:
• Position the cursor on the desired keyboard character using the arrows and the
positioning knob. Press DONE. Enter a complete text string with a maximum of 40
characters in this way.
• Press DONE to store. The alternative you have named can now be seen in the list.
