4 GAS METAL ARC WELDING
0460 949 274
- 21 -
© ESAB AB 2015
4 GAS METAL ARC WELDING
The process is available for certain machine types.
Main menu → Process
During Gas Metal Arc Welding (GMAW), an arc melts a continuously supplied wire. The weld
pool is protected by shielding gas.

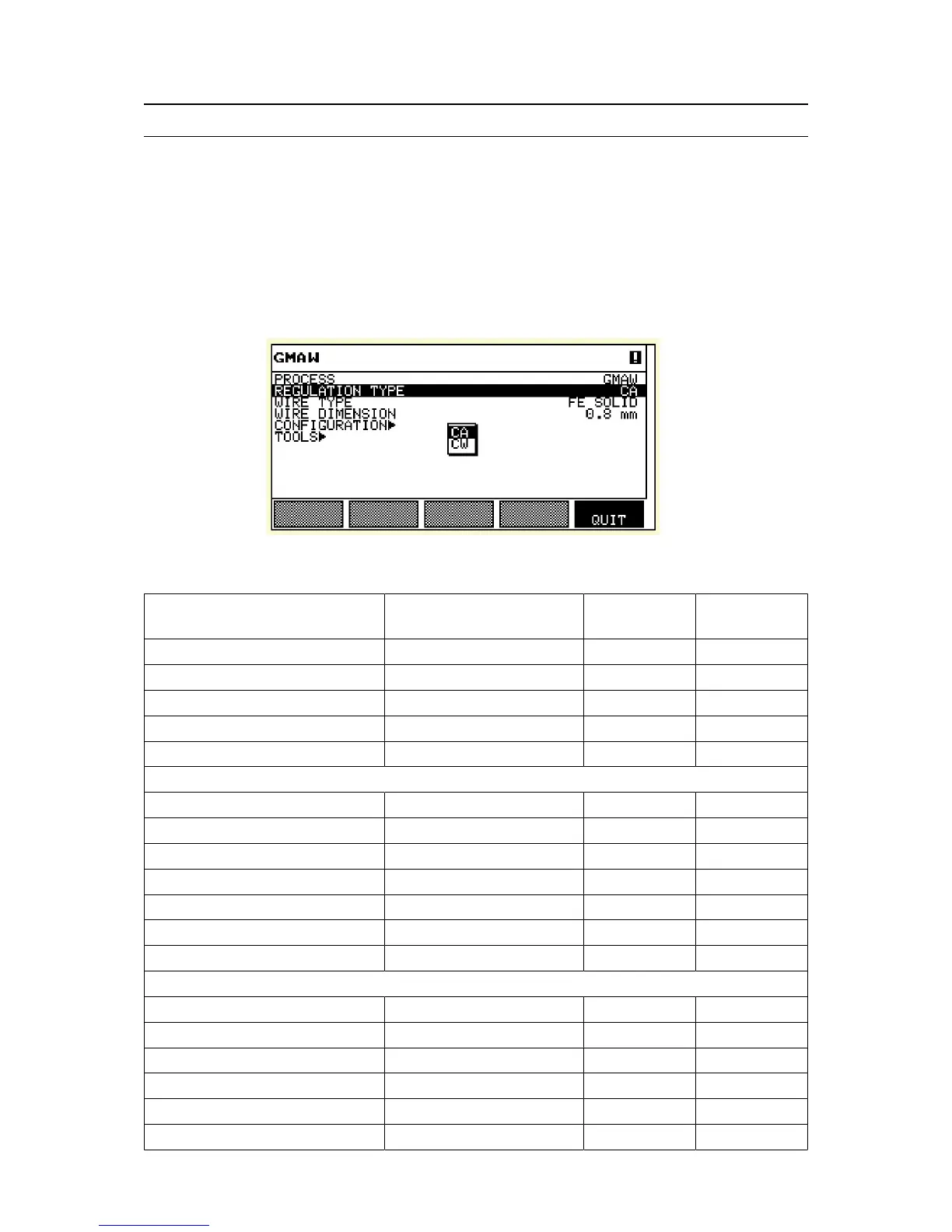

When the Gas Metal Arc Welding (GMAW) process is selected, you can choose between two
control methods by marking REGULATION TYPE using the positioning knob and pressing
ENTER. Choose between constant amperage CA or constant wire feed CW, see explanation
in “CA, constant amperage”, page25 and “CW, constant wire feed”, page25.
4.1 Settings for Gas Metal Arc Welding
Settings Setting range In steps of Value after
resetting
Arc voltage* 14 - 50 V 0.1 V (1V) 30 V
Welding current* (CA) 0 - 3200 A 1 A 400 A
Wire feed speed* (CW) 0 - 2500 cm/min 1 cm/min 300 cm/min
Travel speed* 0 - 200 cm/min 1 cm/min 50 cm/min
Welding direction ▲-■ - ■
Start data
Gas pre-flow 0 - 99.0 s 0.1 s 2.0 s
Start type Direct or Scrape - Direct
Wire creep start Auto or Set speed - Auto
Wire creep start speed 0 - 1000 cm/min 1 cm/min 20 cm/min
Start phases OFF or ON - OFF
Open-circuit voltage OFF or ON - OFF
Maximum open-circuit voltage 5 - 60 V 0.1 V 50 V
Stop data
Gas post-flow 0 - 99.0 s 0.1 s 2.0 s
Crater filling OFF or ON - OFF
Crater filling time 0 - 10 s 0.01 s 1 s
Burnback time 0 - 10 s 0.01 s 1 s
Stop phases OFF or ON - OFF
Dynamic regulation Auto or Set value - Auto
