SYNCRONIZED AC WELDING
Synchronized AC welding means that the frequency and balance, the AC pulses, are
synchronized to the same values for all welding heads in the tandem system.

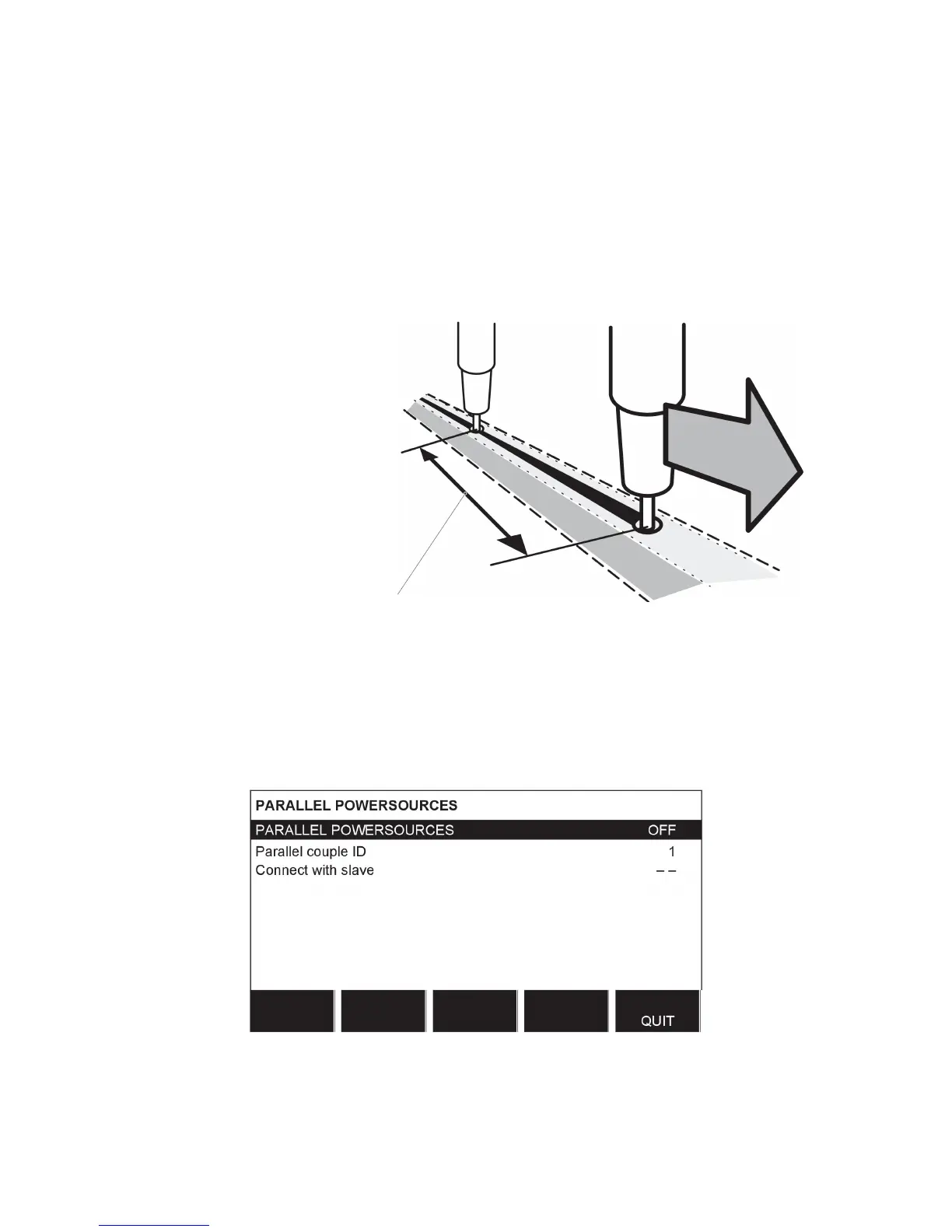

WELD HEAD OFFSET
WELD HEAD OFFSET is the distance in millimetres between the welding heads. The weld
head offset should always be set, whether a synchronised welding start is selected or not. If
a non-synchronised welding start is selected, the offset is used to calculate a timedelay for
the welding start on the TAIL welding head.
TAIL HEAD
WELD HEAD OFFSET
PHASE SHIFT (applies only to AC welding)
Phase shift means a phase offset in relation to the front welding head. The unit is degrees.
8.3.8 Parallel power sources (applies only to Aristo 1000 power sources)
To be able to setup two power sources in parallel, only the two power sources that are to be
connected should have power on and be active on the CAN2 bus.
