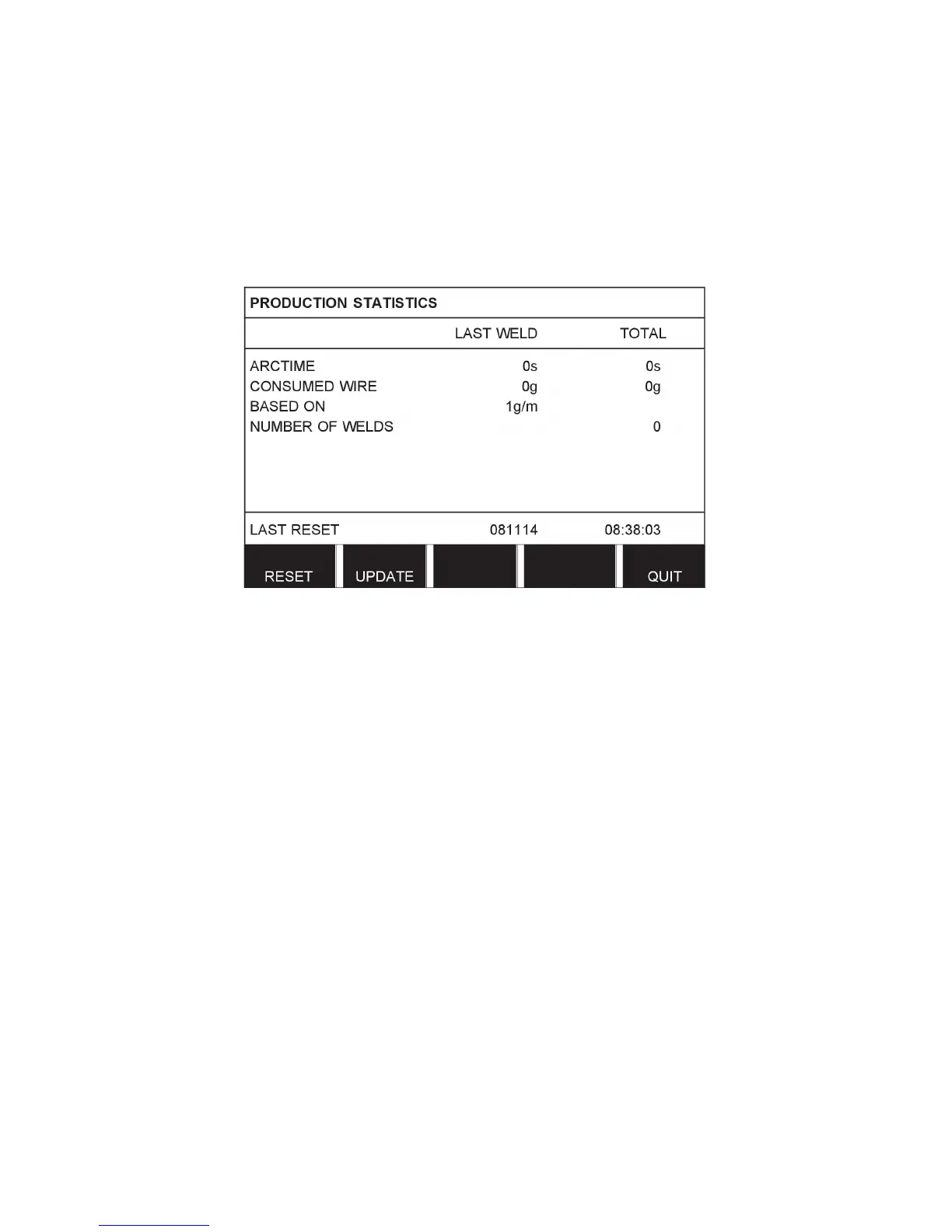

9.6 Production statistics
Main menu → Tools → Production statistics
The production statistics will keep track of the total arc time, the total amount of material and
the number of welds since the most recent reset. They will also keep track of the arc time
and the amount of material used in the most recent weld. For information purposes, the
melted wire material per length unit that has been calculated and when the most recent
reset occurred are also displayed.
When you press RESET, all counters are reset. Date and time show the most recent reset.
If you do not reset the counters, these are all automatically reset when one of them has
reached its maximum value.
Maximum counter values
Time 999 hours, 59 minutes, 59 seconds
Weight 13350000 grams
Quantity 65535
9.7 Quality functions
Main menu → Tools → Quality functions
Quality functions keep track of various interesting weld data for individual welds.
These functions are:
• Time of welding start.
• Duration of welding.
• Maximum, minimum and average current during welding.
• Maximum, minimum and average voltage during welding.
• Maximum, minimum and average energy per unit length during welding.
The number of welds since the most recent reset is displayed in the row at the bottom.
Information can be stored about a maximum of 100 welds. In the event of more than 100
welds, the first one is overwritten.
