1 INTRODUCTION
0460 949 274
- 5 -
© ESAB AB 2015
1 INTRODUCTION
To benefit as much as possible from your welding equipment, we recommend that you read
this instruction manual.
For general information about operation, see the instruction manual for the control unit,
automatic welding machine, column and boom or power source.
The text presented in the display is available in the following languages: English, Swedish,
Finnish, Norwegian, Danish, German, French, Italian, Dutch, Spanish, Portuguese,
Hungarian, Polish, American, Czech, Chinese and Russian.

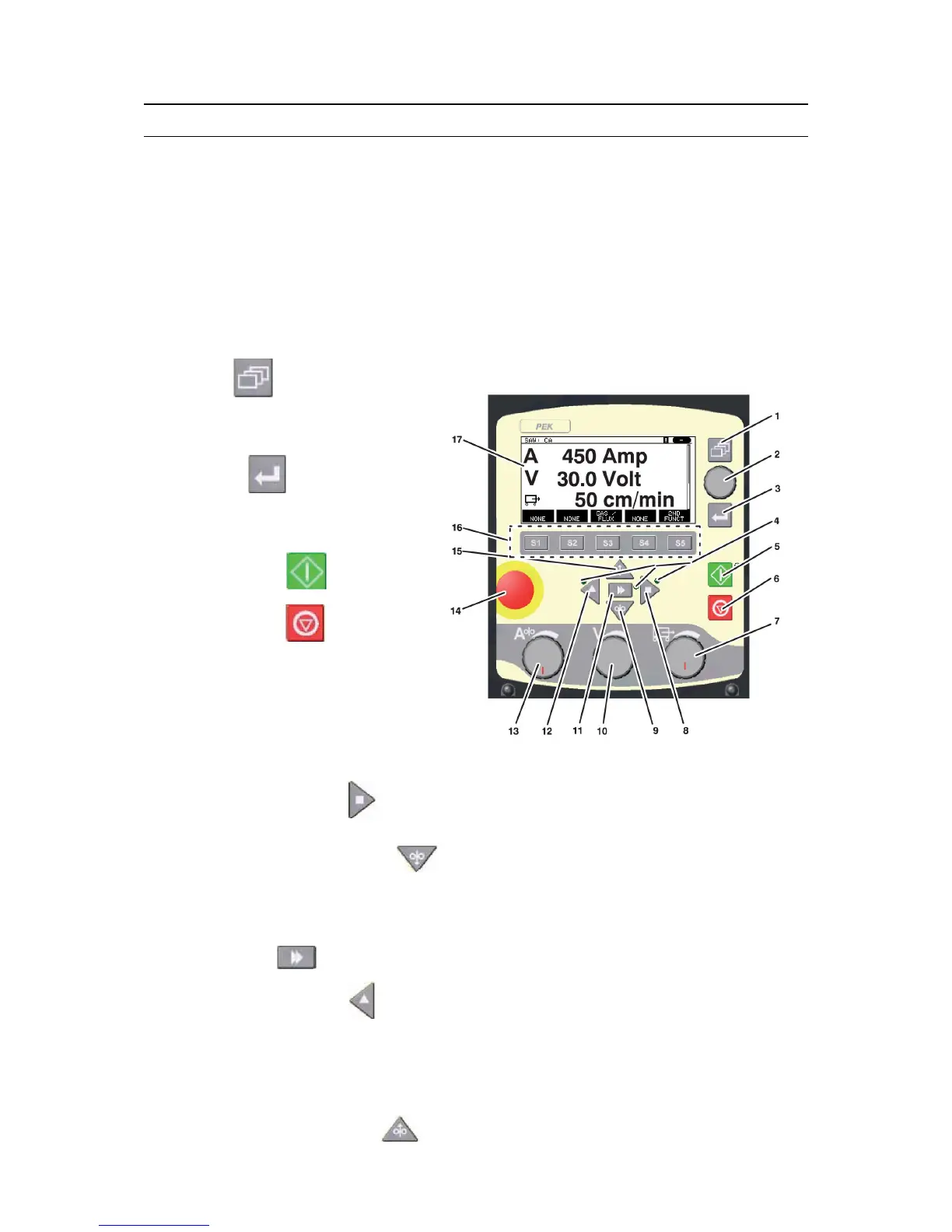

1.1 Control panel
1. Menu
2. Knob for moving cursor (positioning
knob)
3. ENTER
4. Green indicating lamp, illuminates
when the function is active
5. Welding start
6. Welding stop
7. Knob for setting the travel speed in
the measurements menu, in other
menus to increase or decrease the
set values (setting knob)
8. Manual travel motion
9. Manual wire feed downwards
10. Knob for setting the arc voltage in the measurement menu, in other menus to increase
or decrease the set values (setting knob)
11. Fast motion
12. Manual travel motion
13. Knob for setting the welding current / wire feed speed in the measurements menu, in
other menus to increase or decrease the set values (settings knob)
14. Emergency stop
15. Manual wire feed upwards
