Encoder Buttons
Note: The encoder buttons are used with the encoders for shutter control. These buttons
do not work with the shutter graphic control.

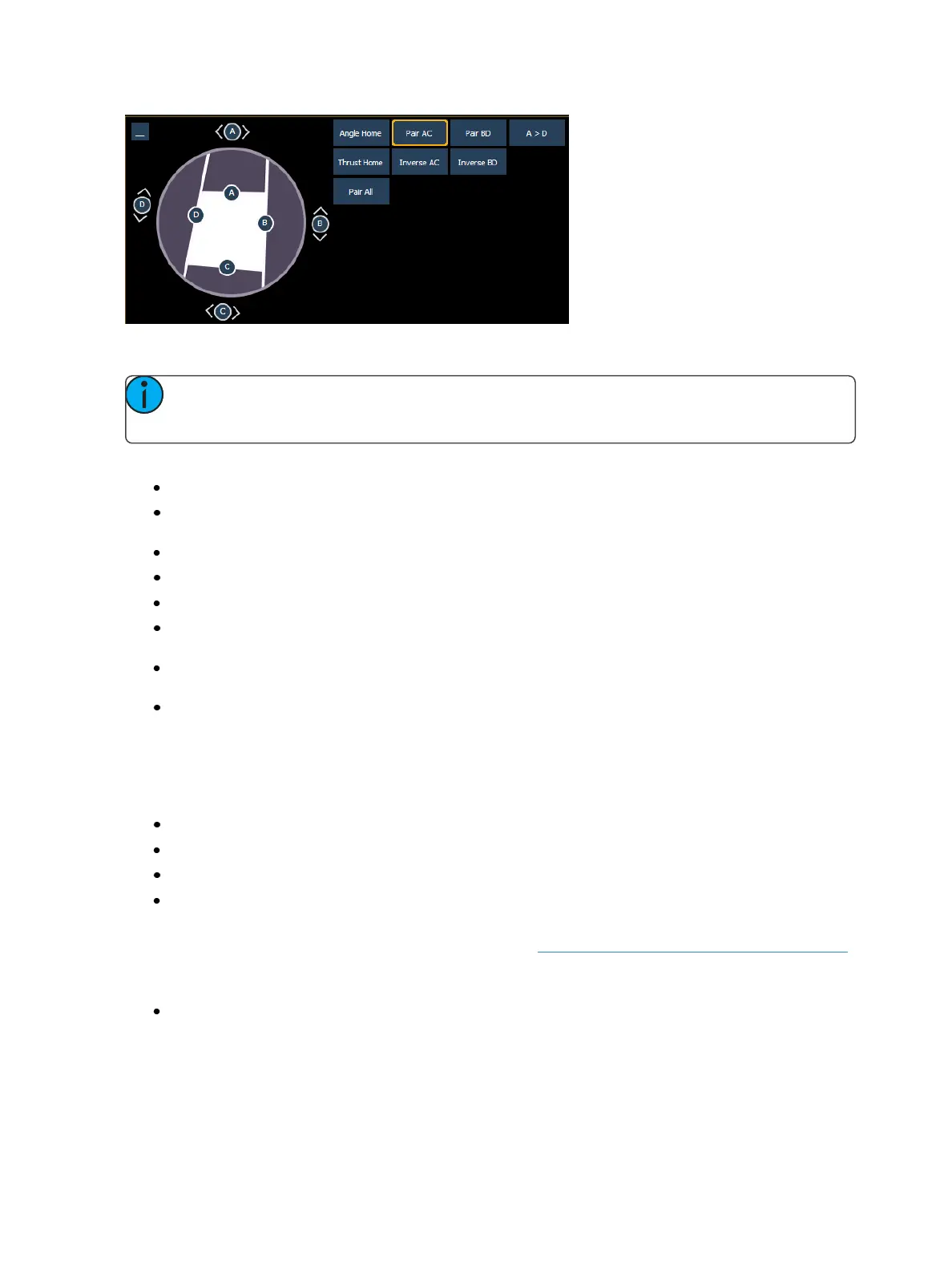

The following buttons are available for shutter control:
AngleHome- sets the angle of all of the shutters to their home position.
Thrust Home- sets the thrust (how far in or out of the beam the shutter travels) of all of the
shutters to their home position.
Pair AC - pairs the A and C shutters together so they move together.
Pair BD- pairs the B and D shutters together so they move together.
Pair All- pairs all of the shutters so they move together.
InverseAC - pairs the A and C shutters so they move in the opposite directions from each
other.
Inverse BD - pairs the B and D shutters so they move in the opposite directions from each
other.
A>D - sets the encoders to use the custom encoder pages for the shutters. Thrust for all of
the shutters is on one page, Angle for all is on another page.
Color Control
Depending upon the specific device, color can be established manually with the encoders using:
CMY color-mixing
Hue and saturation color mixing
RGB color-mixing
Selection from a color wheel or scroller
You may also specify color by using the color picker. See Using the Color Picker (on the facing page)
for more information. It is also possible to set non-intensity parameter data with direct entry using
the control keypad and using the parameters on the CIA.
[1] [At] [4] <0> {Cyan} [5] [5] [Enter]
The first page of the color encoder will provide
The first page of the color encoder will provide some scroller control, such as frame selection, on the
top encoder. The next three encoders will control HS, CYM, or RGB color mixing. There will be
