2.1.8.1. FEEDBACK DIN
Sends MIDI from the MIDI-in DIN jack directly to the MIDI-out DIN jack.
2.1.8.2. FEEDBACK USB A
Sends MIDI from MIDI controllers plugged into the USB-A ports back to those very same MIDI
controllers.
2.1.8.3. FEEDBACK USB B
Sends MIDI from a USB host plugged into the USB-B port back to the very same USB host.

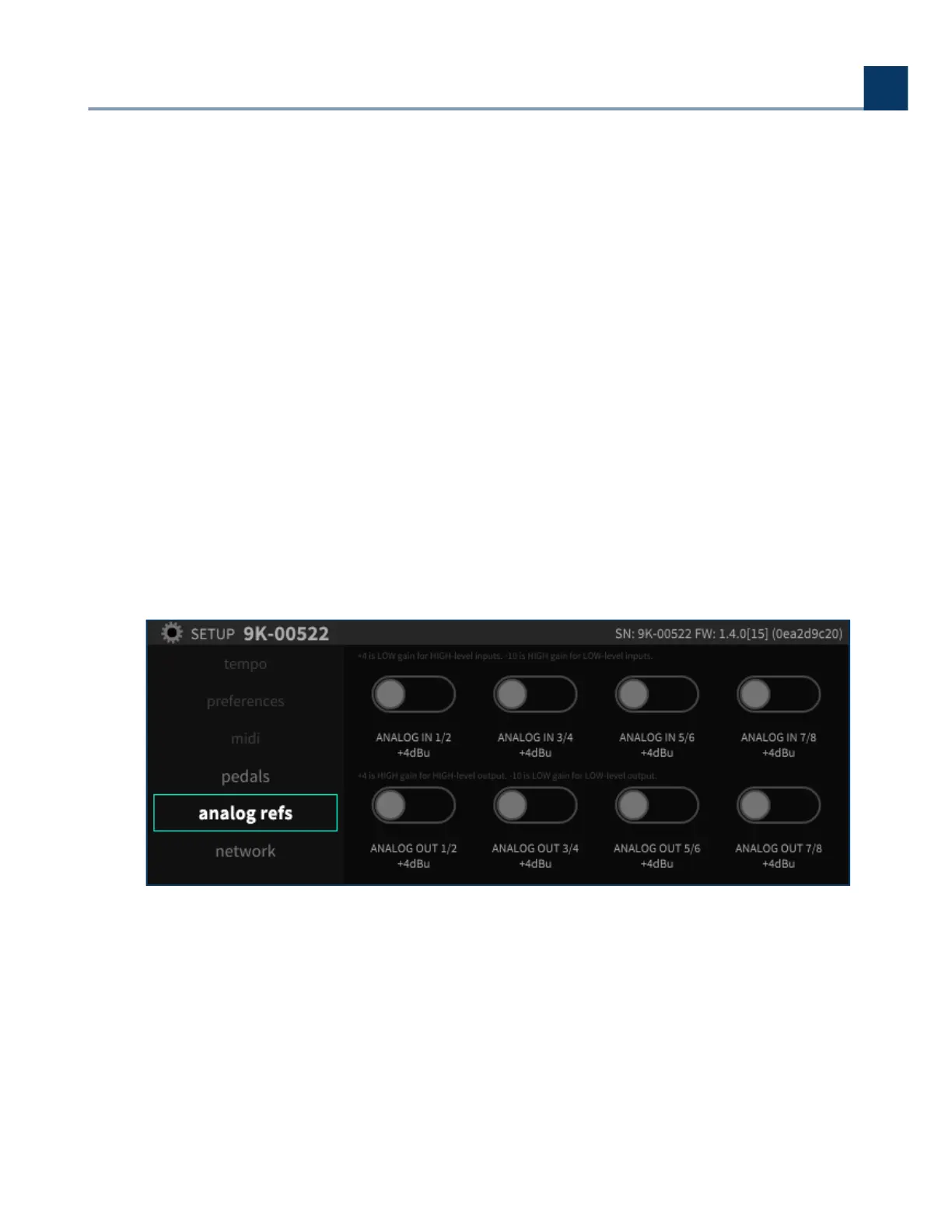

2.1.9. Analog Refs
The Analog Reference Levels screen allows you to set the levels for the eight analog inputs and
outputs present on the 25-pin DSUB connectors. This allows the H9000 to be installed in a wide
variety of environments, and interface at an optimum level with a professional and some consumer
equipment.
Each pair of analog inputs and outputs on the DSUB connectors can be separately selected between
-10dB and +4dB.
2. Setup
Copyright © 2021, Eventide Inc.
