NAV IP Access controller
16

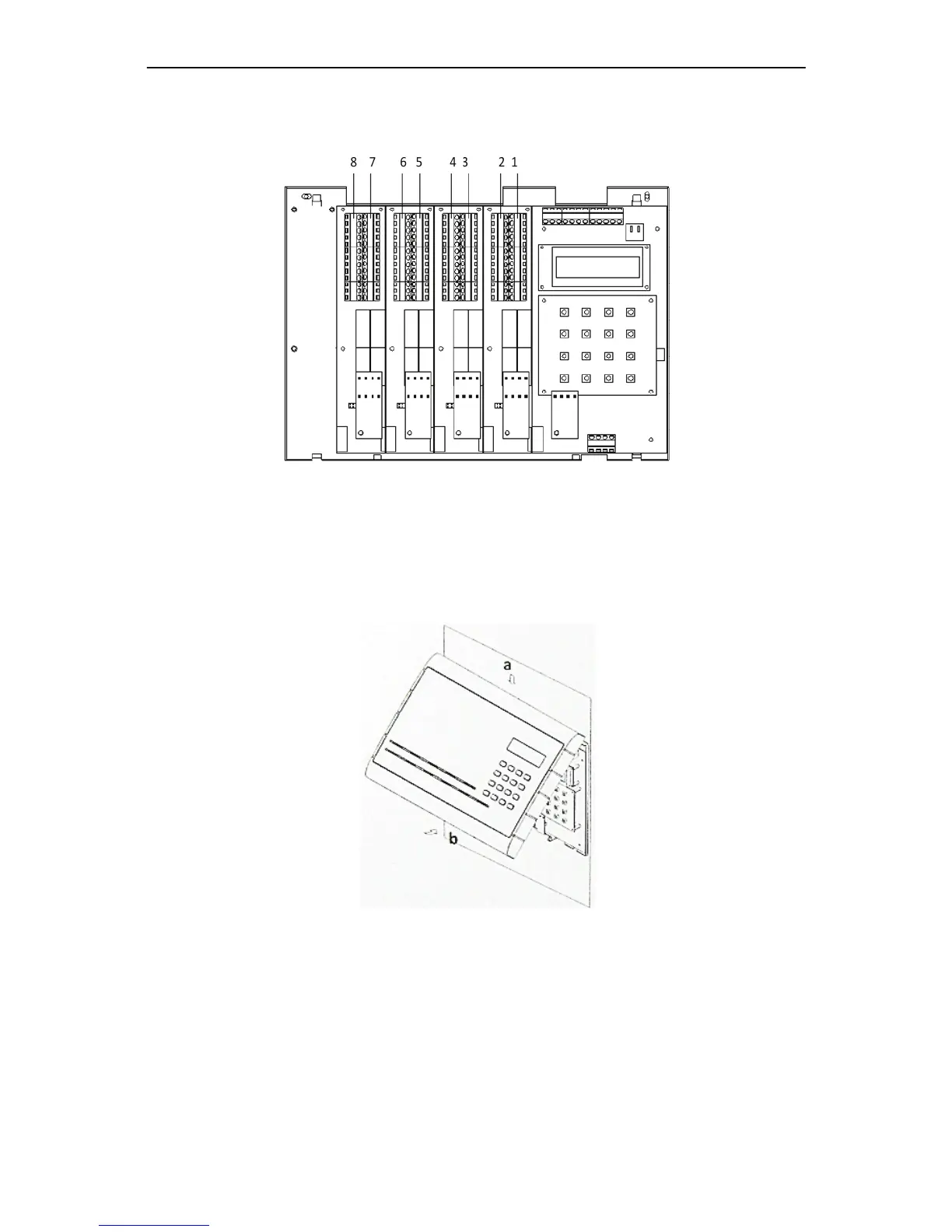

Theindexconversionofreadersisdisplayedasbelow.Thereaders/doorsare
counted1to8fromrighttoleft.

Figure2‐6

4. Placingbackthecoverofcontroller.
a. Thecoverhastwolatchesontheinteriorofthetophorizontaledge.Placethese
latchesinthecorrespondingholesonthetophorizontaledgeofthecontroller
baseboard.

Figure2‐7

b. Oncethelatchesareinplace,thebottomportionofthecoverwillfiteasilyover
therestofthecontrollerbaseboard.
c. Securethecovertothecontrollerbaseboardalongtheexteriorofthe
horizontalbottomedge.
