CP-2232E
Remote Control Panel
Revision 1.1 Page 1
1. OVERVIEW
The CP-2232E remote control panel features two high resolution color touch-screen LCD displays
alongside an array of function assignable and dynamic LCD buttons. The two LCD displays
intelligently interact with the panel's buttons and rotary controls, updating automatically as different
operation facilities are selected.
Each of the 32 LCD buttons is capable of displaying a multiple character text string or a graphical
image. They can also be configured with a menu structure which allows quick navigation through the
systems. When a menu button is pressed some or all of the buttons change their function and legend.
Their operation is then defined by the configuration setup for this new menu. The selection of a new
menu can also be configured to change the graphical display of one or both of the LCD screens.
The CP-2232E is the flagship panel of Evertz advanced control system, allowing control of automated
tielines and pathfinding, and advanced breakaway routing while still supporting basic routing concepts
like levels and categories. The CP-2232E requires the EQX SERVER Control System for router
control.
The CP-2232E panel incorporates advanced control of all of Evertz's SNMP enabled devices. Devices
or certain controls of devices can be grouped and/or ganged together and associated with sources
and destinations on routers so that when a particular source or destination is used the appropriate
controls are loaded up for interfacing on the panels LCD screens. This allows simple but powerful
interfaces to be built to control parameters and recall presets for SNMP equipment in your facility as
well as integrate with router systems.
The CP-2232E enables users to have real-time control over a MVP or VIP system, display graphical
visualizations of layouts prior to loading them, control what signal is routed to what multiviewer
window, select an audio to be monitored, etc. The CP-2232E is a very sophisticated advanced panel
that allows you to create a very powerful and very simple interface to your entire system so users
have real-time control over signals, displays and their router destinations.

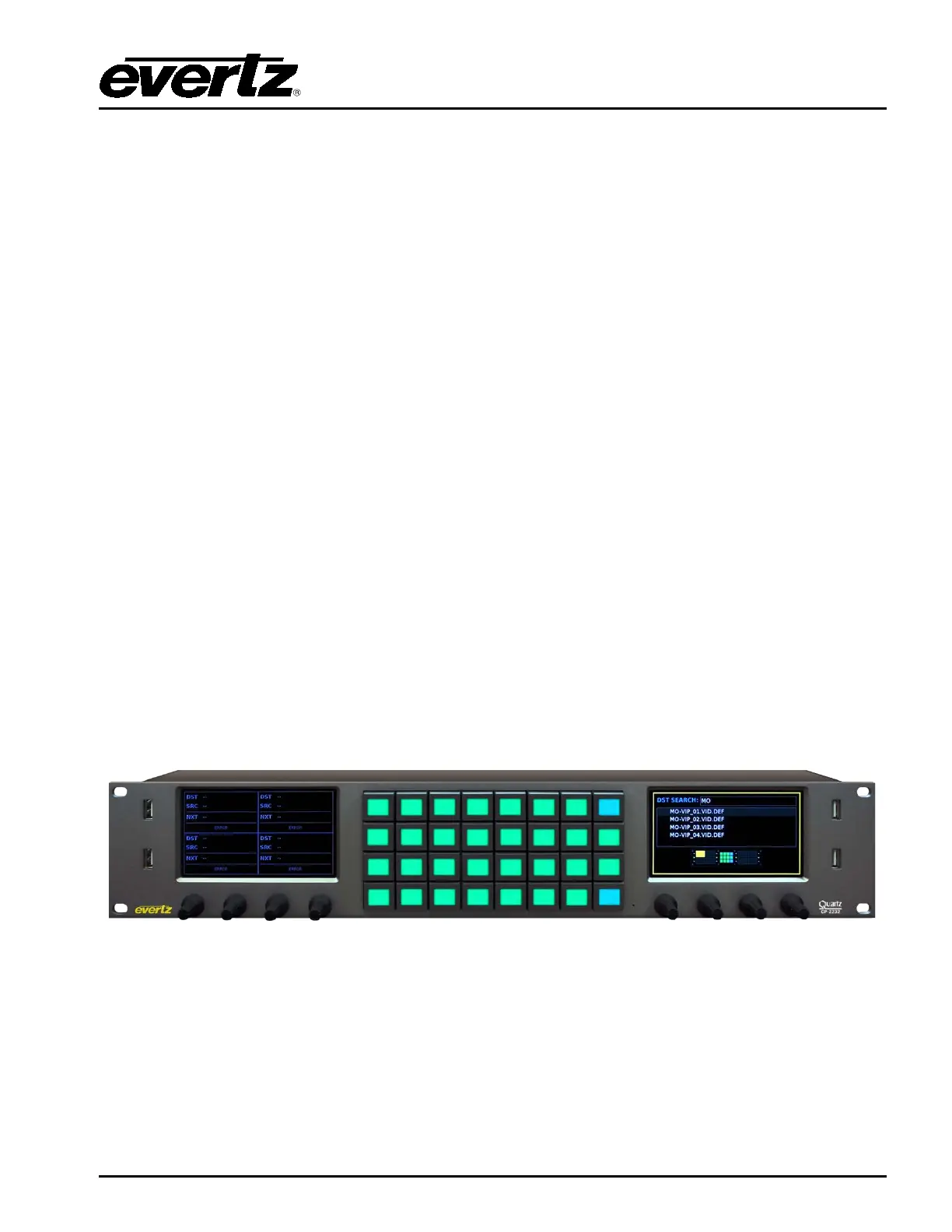

Figure 1-1: CP-2232E Control Panel
