• Inc: Entering a number in this field will assign a number value that the encoder will
increment when it is rotated. For example, if this value is set to 2, each time the
shaft encoder is turned (clicked over once) the value will increment by 2 instead
of a regular default unit of 1.
• Fine Inc: Entering a number in this field will assign a fine increment value that will be used
when the shaft encoder is pushed. This value will then be used each time the
shaft encoder is turned (clicked over once).
• Apply Type: This field enables the user to select an Apply Type. The user can select
“Pressed,” “Dynamic,” or “Cycle.”
• Filters: This field displays the range of values and control options available for the
selected parameter. The user can change the minimum and maximum values
and the parameter options using this field.
5.2.2.4. Creating a New Service Template
To create a new template follow the procedure outlined below:
1. Navigate to the Service Templates control menu and click on the New Template button or
select the Create a New One link. A new screen, as illustrated in Figure 5-9 will open.

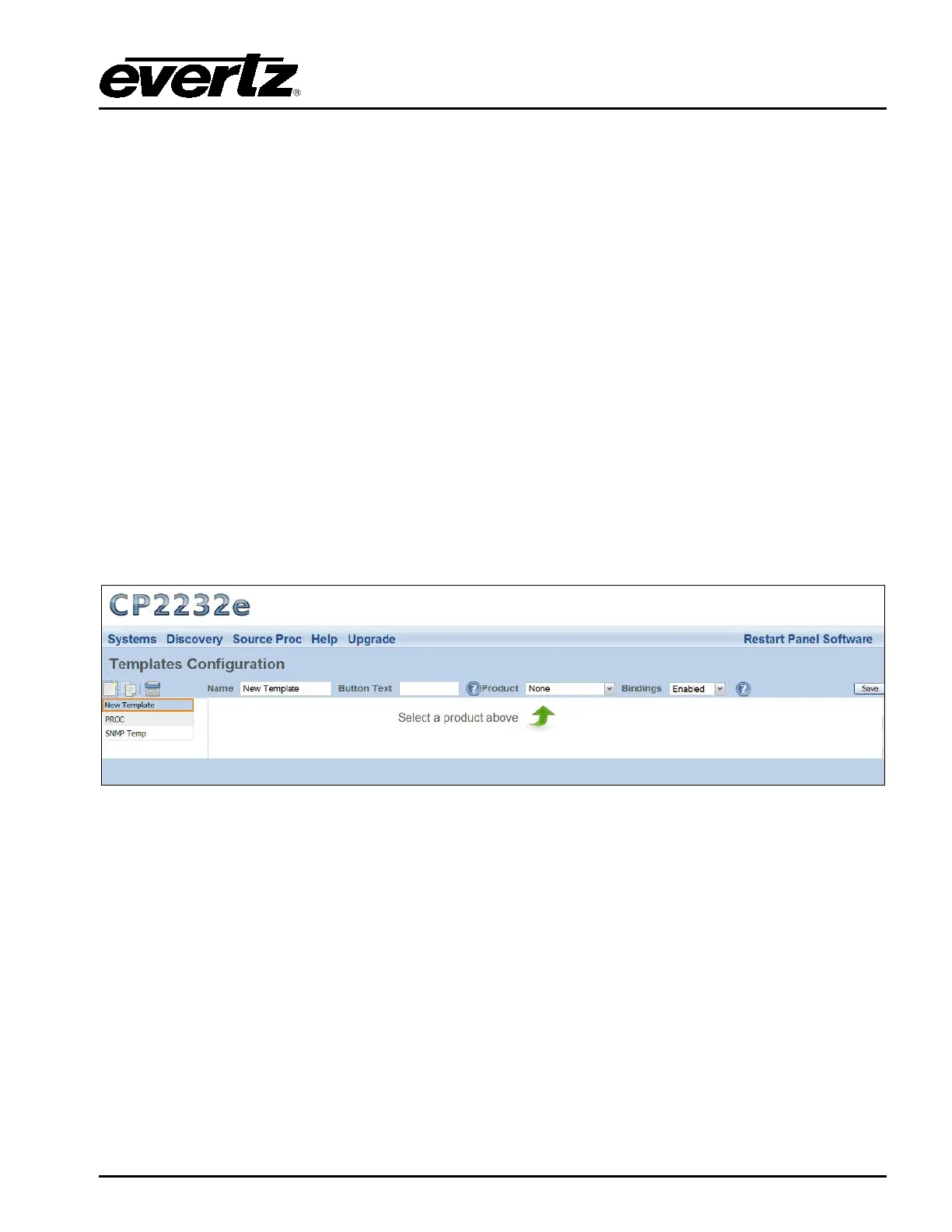

Figure 5-9: New Template Page
2. Assign a new name to the template by entering a name into the Name field.
3. Assign a name for the designated LCD button using the Button Text field.
4. Select a product using the Product drop-down menu. Once the desired product is selected, the
parameter tree will reflect the available parameter items for the selected product. More products
can be added to this list by uploading product jar files using the Products menu under the
Systems menu.
5. Enable or disable Bindings using the Bindings drop-down menu. Please refer to section
5.2.2.1 for more information.
6. Drag and drop a card parameter from the parameter tree to the template parameter list in the
middle of the screen. Please refer to Figure 5-10.
