5.4.1. Source Proc Page
The Source Proc page enables the user to attach an SNMP service to a router’s input port.

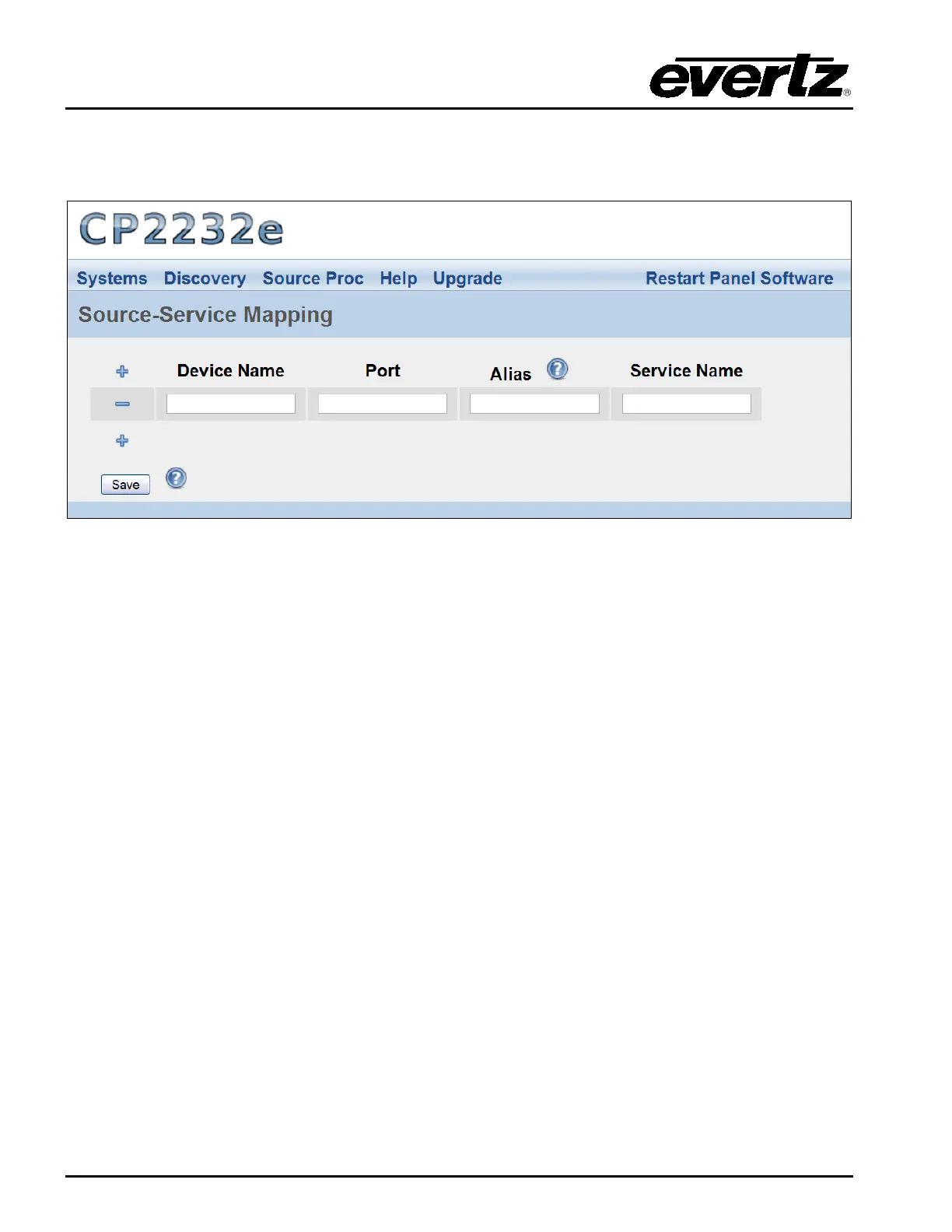

Figure 5-22: Source Proc Page
1. The following items will be required before you begin:
a. The PRECISE “short name” from the EQX Server for the router containing the input or
output you wish to map a service to.
b. The PRECISE port number (in other words, the numerical input) the service should be
mapped to. This number should be entered without any preceding zeros. Enter the
number one as: 1 not 001.
c. An Alias name for the router source (which will be used if the device name and port are
not provided).
d. A Service created and saved on the CP-2232E panel.
2. Select the plus sign to create a new mapping.
3. Enter the PRECISE “short name” of the router device to map to in the Device Name field.
4. Enter the port number (the numerical input) to map to in the Port field.
5. Enter an Alias name for the router source. Please note that this parameter is optional. An
Alias will be used if a device name and port are not provided. The alias would be the Global
name of the source as defined in the EQX Server.
6. Enter the name of the desired SNMP service in the Service Name field.
7. Once selected, click the Save button.
8. When you are finished mapping the SNMP Services, be sure to click the “Restart Panel
Software” link found at the top of each page.
