evertz CP-2232E - Figure 7-20: Selecting the ONE DST VIEW Button; Figure 7-21: Selecting the TAKE Button

CP-2232E
Remote Control Panel
Revision 1.1 Page 53

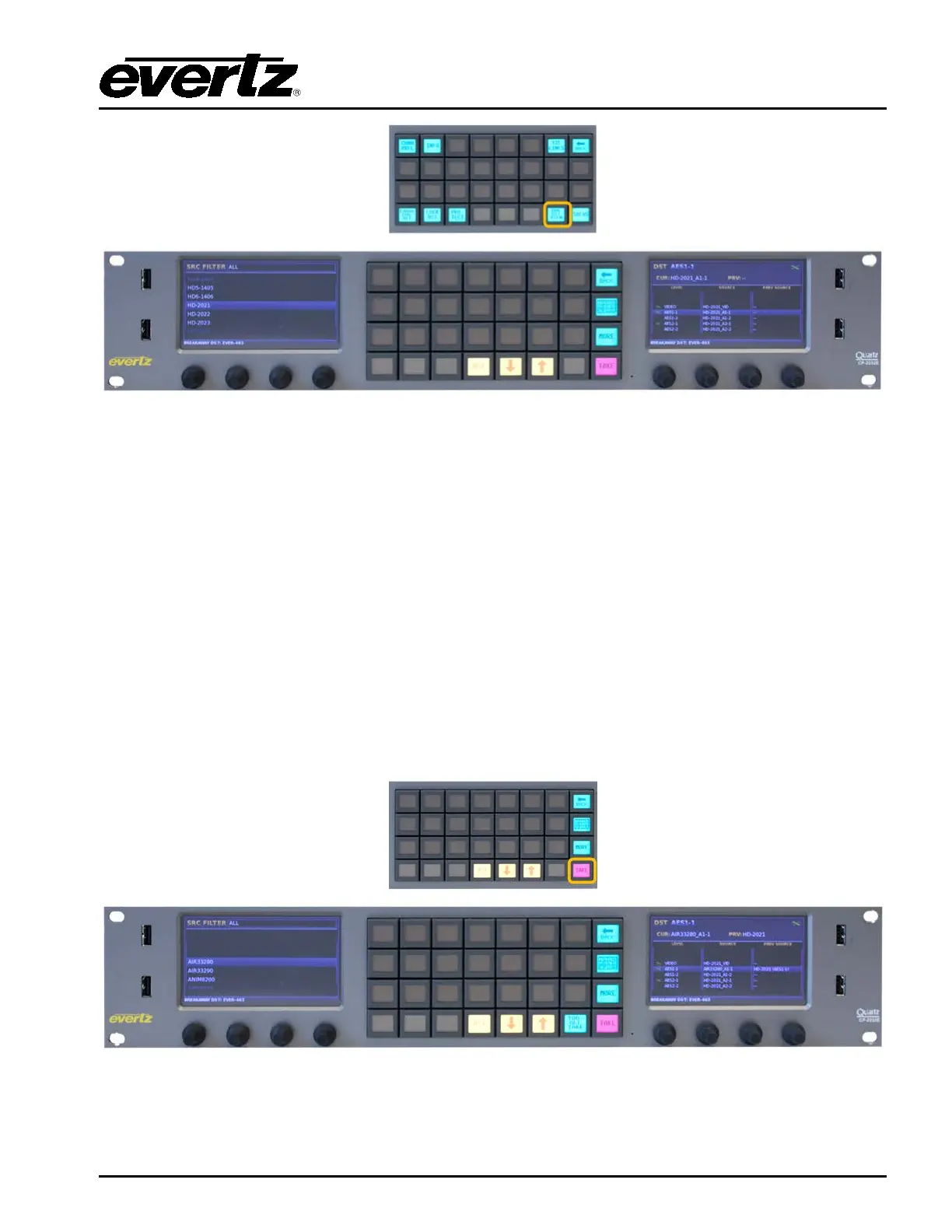

Figure 7-20: Selecting the “ONE DST VIEW” Button
The ONE DST VIEW button when pushed will Toggle the CP-2232E between the Eight Destination
View and One Destination View. When in One Destination View, the Left screen displays sources
and the Right Screen shows one destination. The left shaft encoder under the Left display is used to
navigate through the source lists by turning the left shaft encoder. When the required source is
highlighted, the Take button is used the Take button is used to route the source.
The Alpha-Numeric button when pressed will allow the user to type the name of the required source in
the Left screen. As the user types the CP-2232E will automatically filter the source list to display any
source that matches the characters typed. If a character is typed incorrectly the DEL button can be
used to delete the characters. The Left and Right buttons on the Left screen can be used to navigate
the SRC Search box. When the required source is highlighted, the Take button is used to route the
source. The Back button can be used to cancel the source search and display all sources.
The ONE DST VIEW right screen will display the Current Destination, the Current Source, and
Previous Source (Toggle is automatically enabled in ONE DST VIEW).
Figure 7-21: Selecting the “TAKE” Button
