CP-2232E
Remote Control Panel
Revision 1.1 Page 29
5.4.2. Destination Proc Page
The Destination Proc page enables the user to attach an SNMP service to a router’s output port.

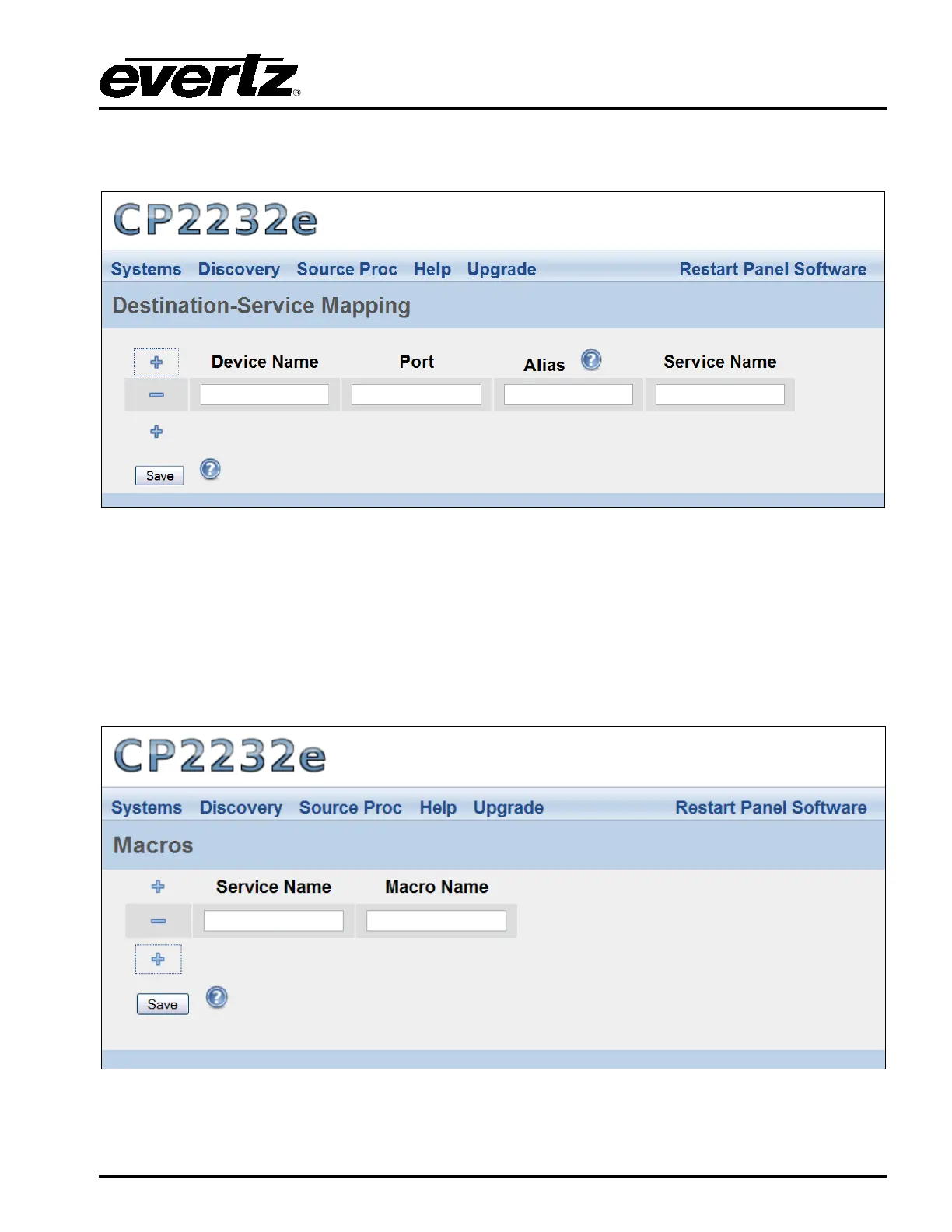

Figure 5-23: Destination Proc Page
To create a new Destination-Service Mapping, please follow the numbered instructions in section
5.4.1
5.4.3. Macros Page
The Macros page, as illustrated in Figure 5-24, enables the user to map a Macro to an SNMP Service.
This will automatically fire the Macro on the VistaLINK
®
Alarm Server when the Service is loaded.
Figure 5-24: Macros Page
