button is used to confirm the choice and return the user to Eight Destination view. The selected
destination will be automatically selected in the Eight Destination view. The quadrant view in the bottom
of the Left display will show the user where the destination will appear when returning to the Eight
Destination view. The Back button can be used to cancel the destination search and return to the Eight
Destination view
7.3. UP & DOWN ARROWS

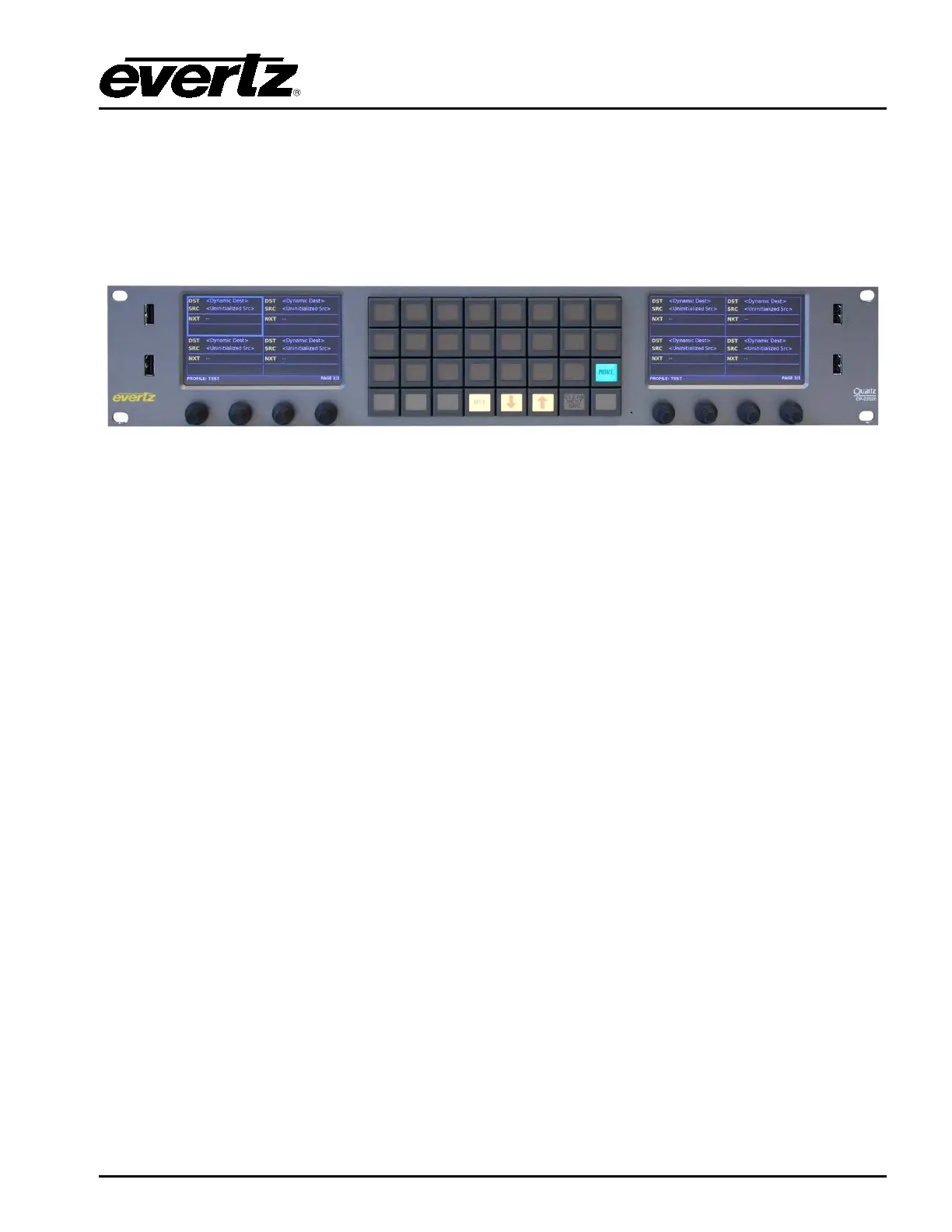

Figure 7-6: Up & Down Arrows Display
The Destination navigation buttons allow the user to scroll Up or Down through the pages of
destinations. The Current Page and Total Number of Pages is displayed in the bottom right corner of
each LCD screen. The last destination page contains “Dynamic Destinations”. The user can select a
Dynamic Destination quadrant and assign a destination to it by using the destination button. The
Dynamic Destination page allows the user to create custom destination pages with destinations
arranged by the user.
