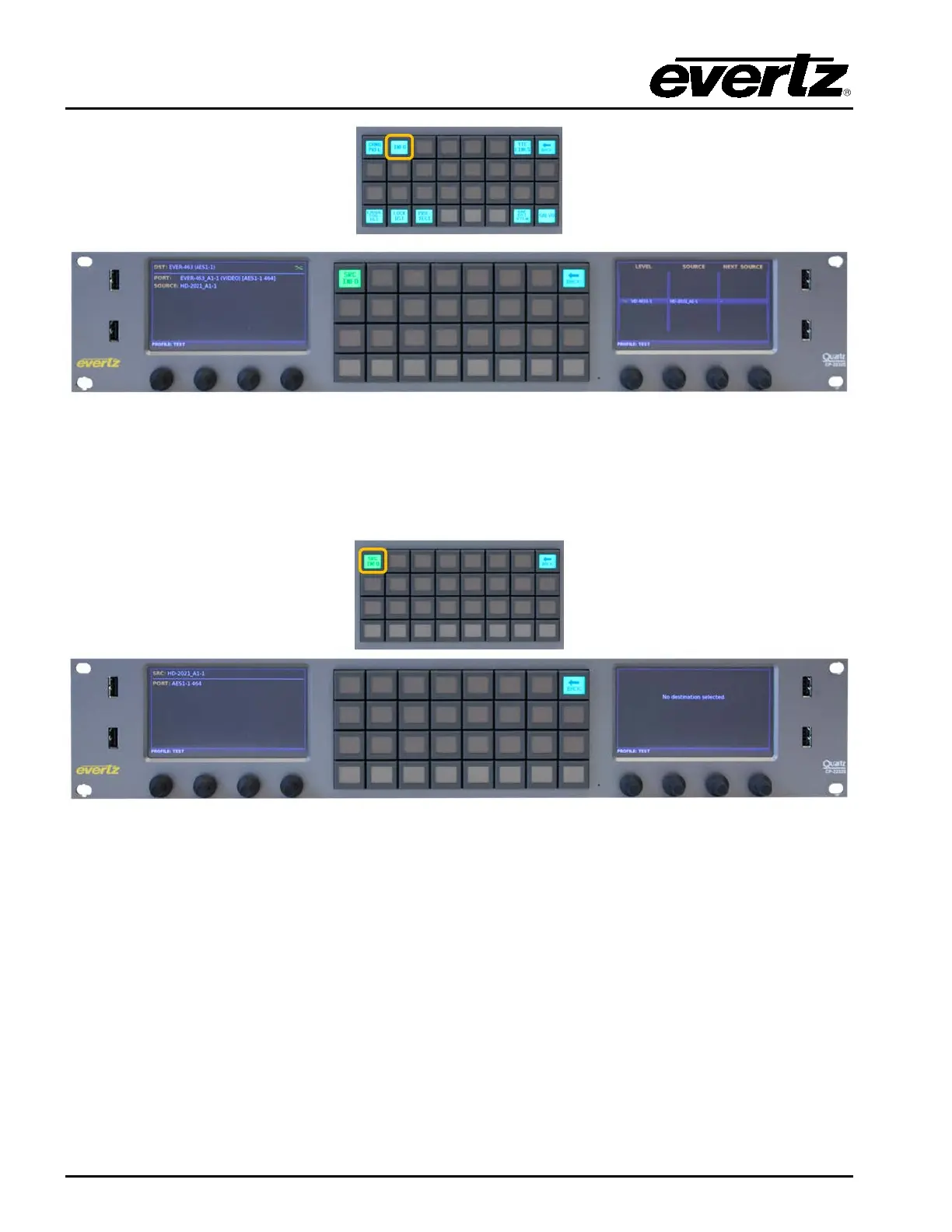

Figure 7-14: Selecting the “INFO” Button
The INFO button when selected will display information for the selected Destination, DST, Port,
Source, Lock/Protect Owner Information on the Left screen and Level, Source and Next Source
information on the Right Screen. The Back button can be used to return to the Eight Destination view.
Figure 7-15: Selecting the “SRC INFO” Button
The SRC INFO button when selected with display the Source Name and Physical Port information for
the source that is on the selected destination. The Back button can be used to return to the
Destination Info view.
