CP-2232E
Remote Control Panel
Revision 1.1 Page 33
5.5.1.4. Logs Tab
The Logs tab, as illustrated in Figure 5-30, enables the user to retrieve configuration logs.

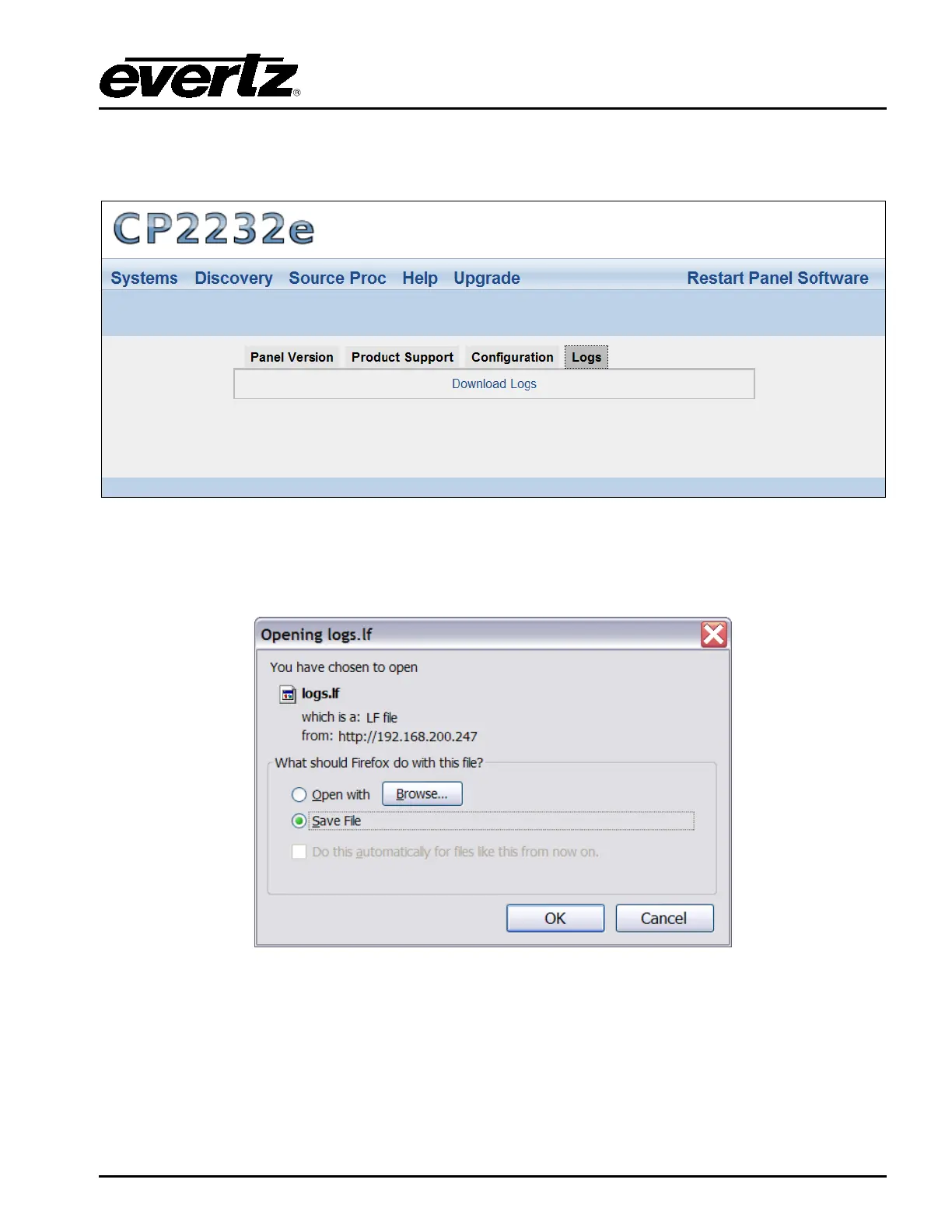

Figure 5-30: Logs Tab
Select the Download Logs text and an Opening logs.lf dialog box will appear which will prompt the
user to open or save the log file.
Figure 5-31: Opening logs.lf Dialog Box
