Maintenance

Optical Explorer 181

Replacing the Battery

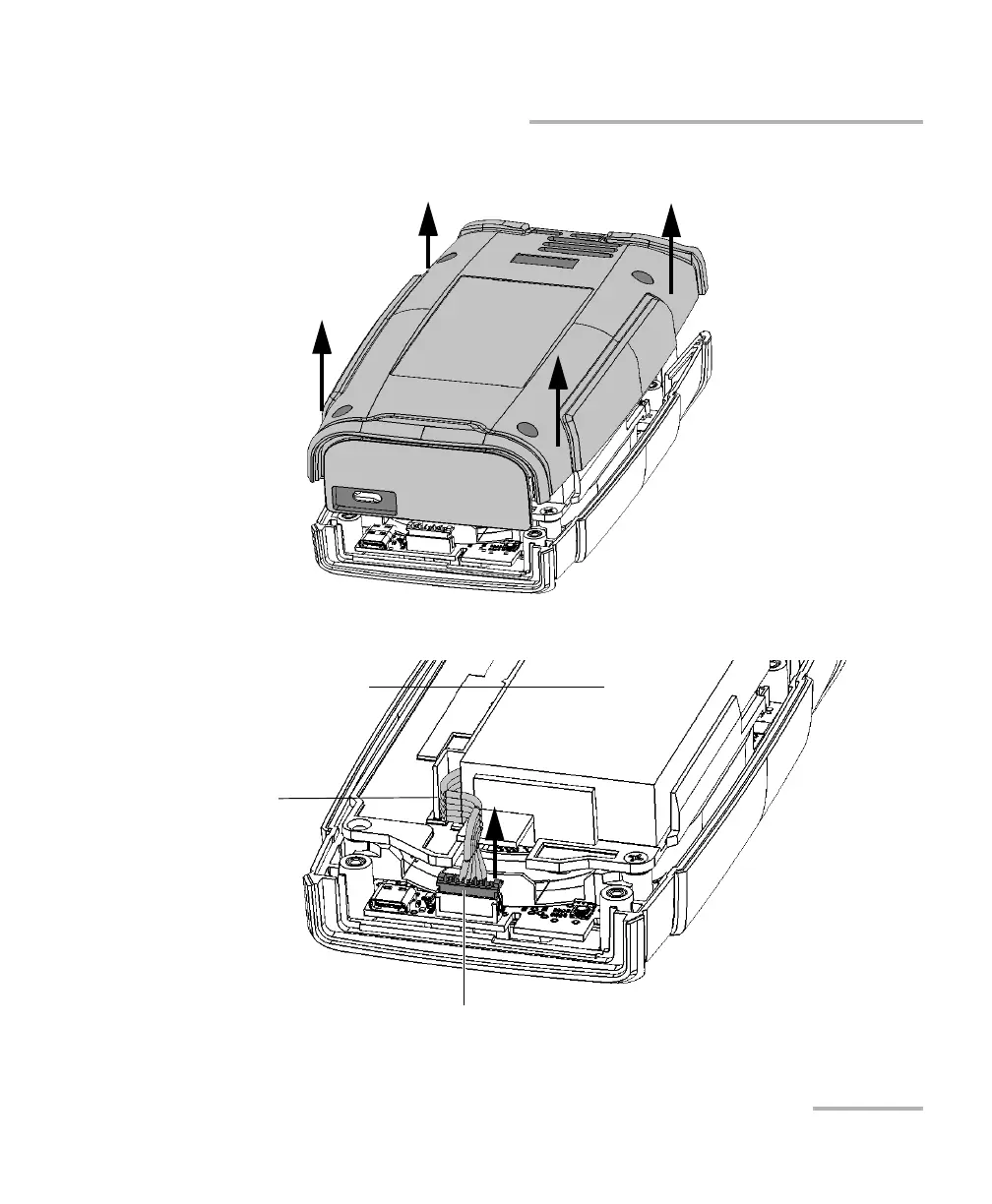

4. Hold the back panel by its sides and pull it up to remove it.

5. Gently pull on the battery’s connector to disconnect it from its socket.

Battery

Battery’s wires

Battery’s connector
