Maintenance

182 OX1

Replacing the Battery

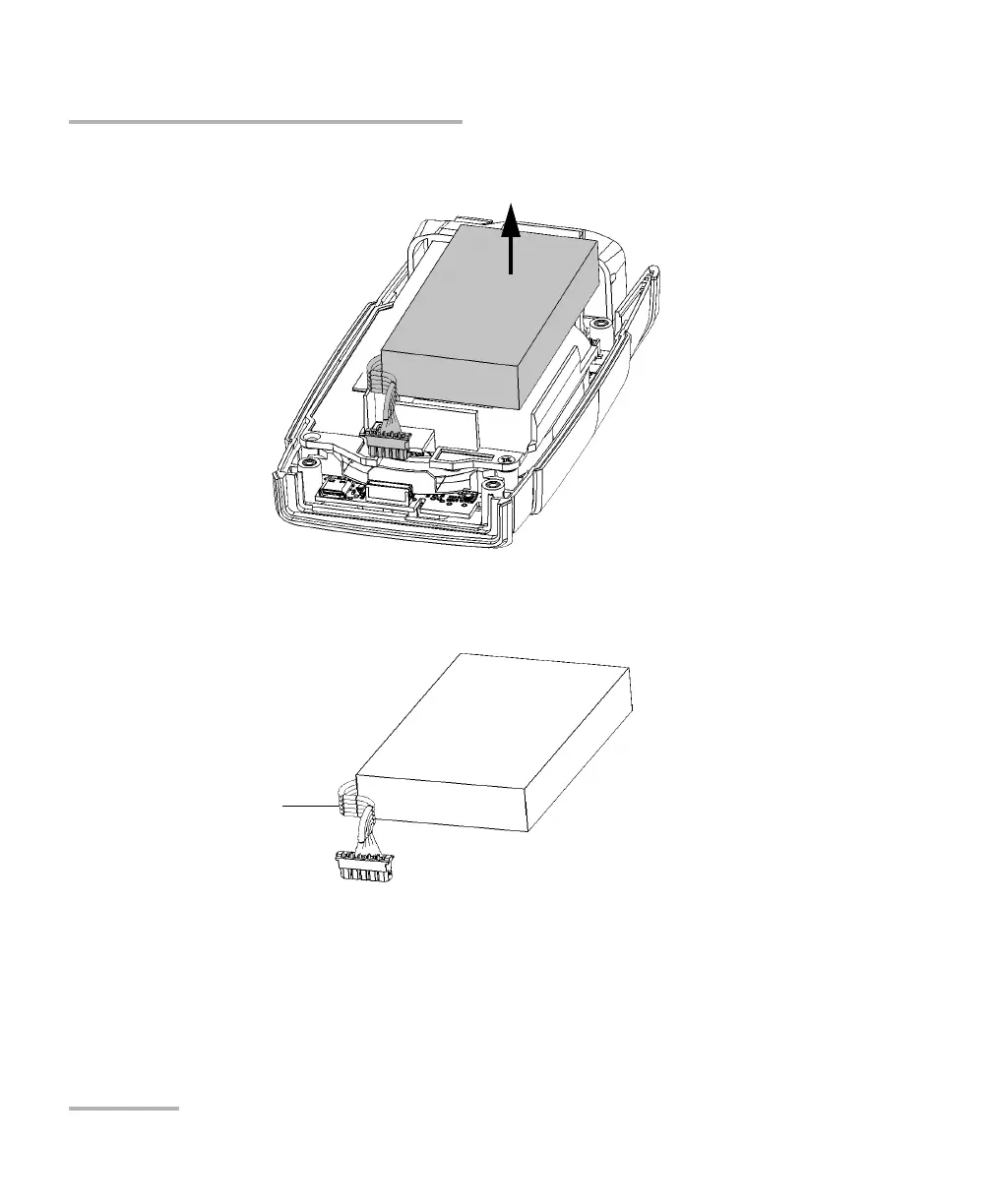

6. Pull the battery up to remove it.

7. Place the new battery so that its wires are located on the left side,

toward the front.

Wires
