Replacing the Battery

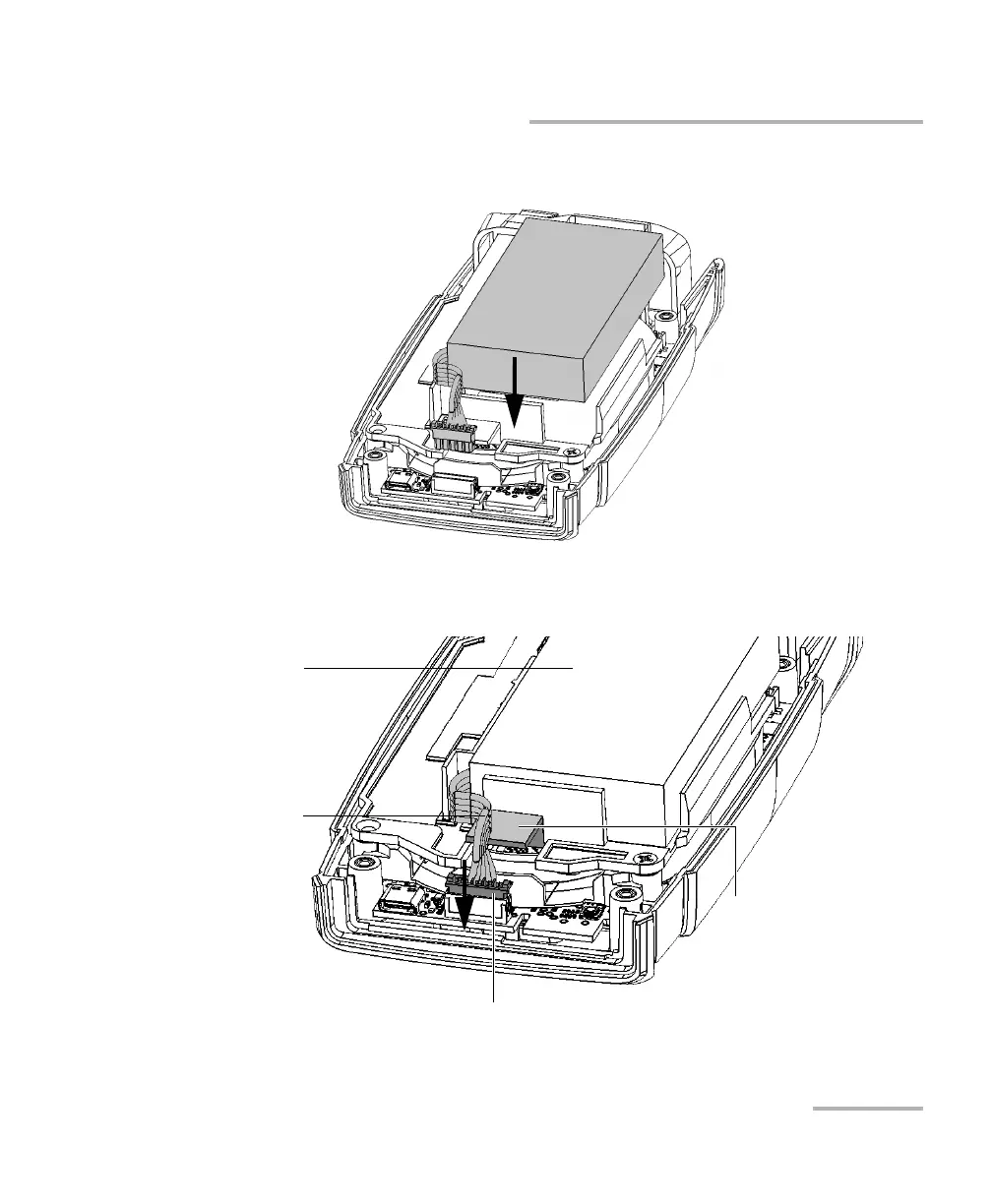

8. Push the new battery toward the bottom of the case until it stops.
9. Ensure that the battery’s wires are above the plastic tab (not under),
and then connect the battery’s connector to the corresponding socket.
Battery
Battery’s wires
Battery’s connector
Plastic tab
