Maintenance

Optical Explorer 185

Replacing the Battery

12. Reset the battery information as follows:

12a.Connect the unit to a power outlet using the USB power adapter.

12b.Turn on your unit.

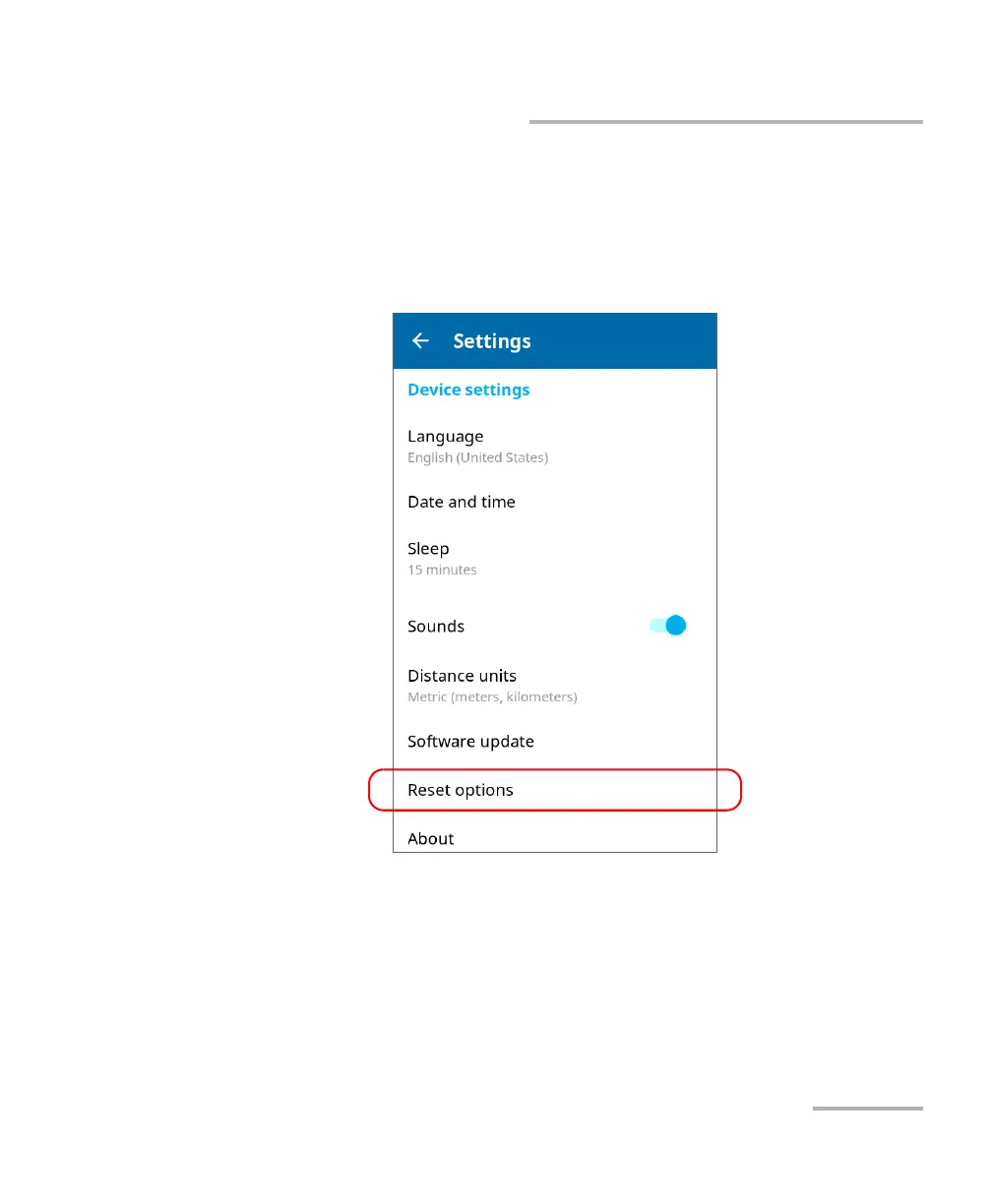

12c. From the main menu, go to Settings > Reset options.
