1 = 10/100/1000BASE-T ports 4 = 10/100/1000BASE-T out-of-band
management port
7 = SFP-DD
stacking ports
2 = Mode button 5 = RJ-45 serial console port 8 = 1/10G SFP+
ports
3 = USB Micro-B console port 6 = USB Type-A ports
The rear panel of the switch includes:
2 xed fan modules
Grounding lug
1 AC power inlet connector
1 power supply slot

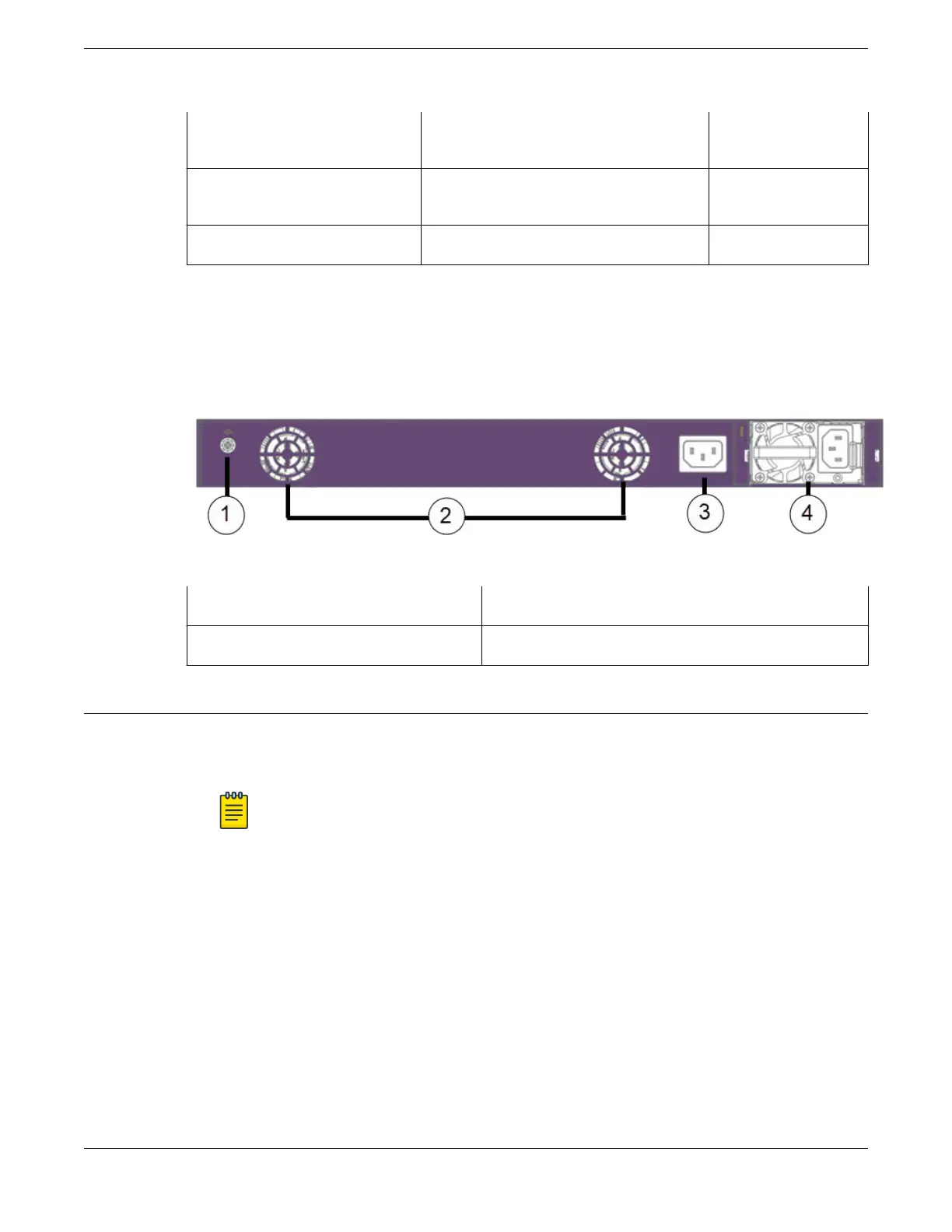

Figure 8: 5420F-24T-4XE Rear Panel
1 = Grounding lug
3 = AC power inlet connector
2 = Fixed fan modules 4 = Power supply slot
5420F-16MW-32P-4XE Switch Features
The front panel of the 5420F-16MW-32P-4XE switch includes:
16 100Mb/1Gb/2.5Gb MACsec capable ports with 802.3bt Type 4 PoE (90W).
Note
Half-duplex is not supported on these ports when operating at 1Gbps.
32 10/100/1000BASE-T full/half duplex (autosensing) MACsec capable ports with Type
2 PoE+ (30W)
4 1/10Gb SFP+ MACsec capable uplink ports (unpopulated)
2 Stacking/SFP-DD ports (unpopulated)
1 Serial console port (RJ-45)
1 10/100/1000BASE-T out-of-band management port
2 USB Type-A ports for management or external ash
1 USB Micro-B console port
5420F-16MW-32P-4XE Switch Features ExtremeSwitching 5420 Series Overview
20 ExtremeSwitching 5420 Series Hardware Installation Guide
