Extreme Networks ExtremeSwitching 5420 Series - 5420 M-48 T-4 YE Switch Features

1 = 10/100/1000BASE-T ports 4 = 10/100/1000BASE-T out-of-band
management port
7 = SFP-DD
stacking ports
2 = Mode button 5 = RJ-45 serial console port 8 = 1/10/25G SFP28
ports
3 = USB Micro-B console port 6 = USB Type-A ports
The rear panel of the switch includes:
• 1 fan module
• Grounding lug
• 2 power supply slots

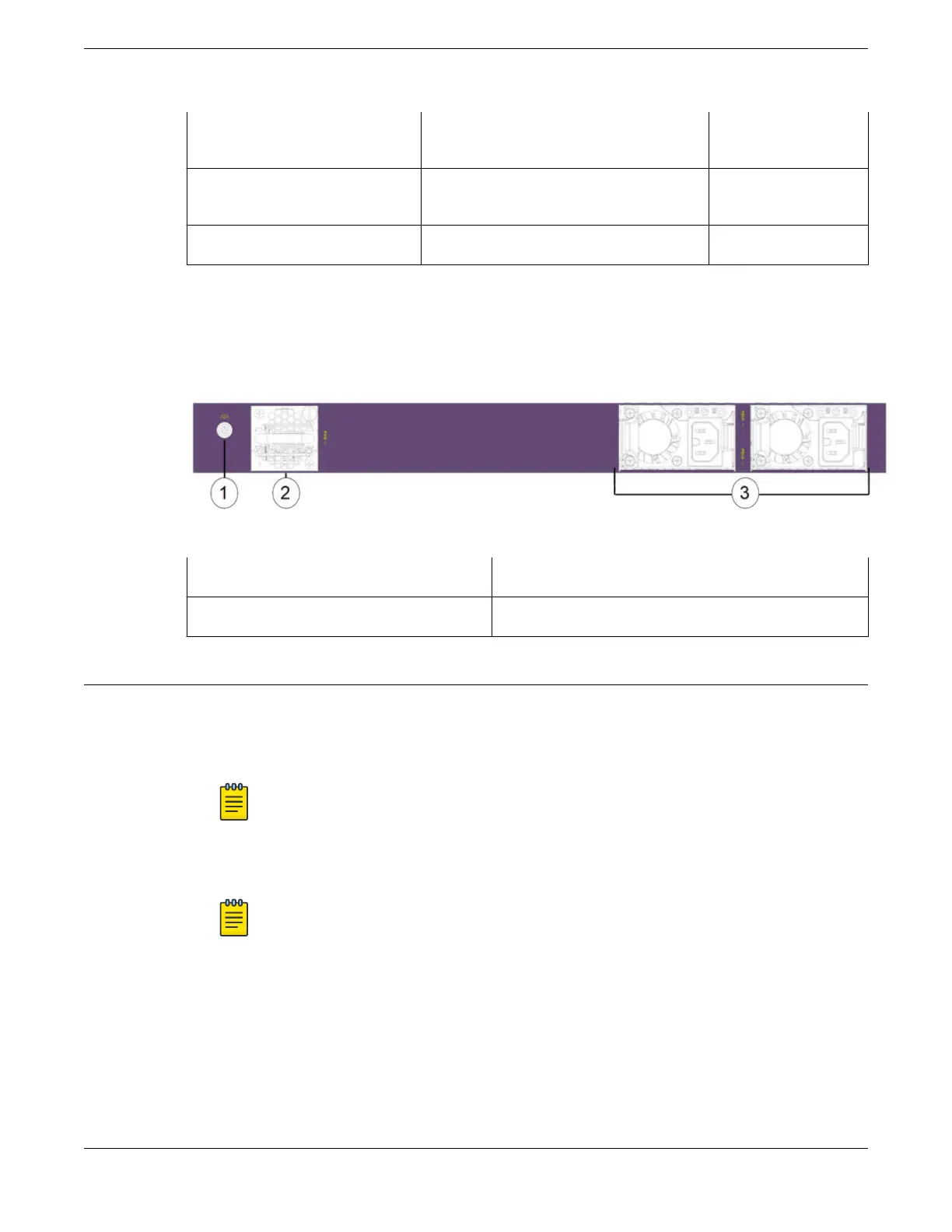

Figure 20: 5420M-24T-4YE Rear Panel
1 = Grounding lug
3 = Power supply slots
2 = Fan module
5420M-24W-4YE Switch Features
The front panel of the 5420M-24W-4YE switch includes:
• 24 10/100/1000BASE-T full/half duplex (autosensing) MACsec capable ports with
802.3bt Type 4 PoE (90W)
Note
Half-duplex is not supported on these ports when operating at 1Gbps.
• 4 1/10/25Gb SFP28 MACsec capable uplink ports (unpopulated)
• 2 Stacking/SFP-DD ports
Note
These ports can operate either as stacking ports, or as 10G Ethernet ports
with SFP+ optics using the disable stacking-support command.
• 1 Serial console port (RJ-45)
• 1 10/100/1000BASE-T out-of-band management port
• 2 USB Type-A ports for management or external ash
• 1 USB Micro-B console port
ExtremeSwitching 5420 Series Overview 5420M-24W-4YE Switch Features
