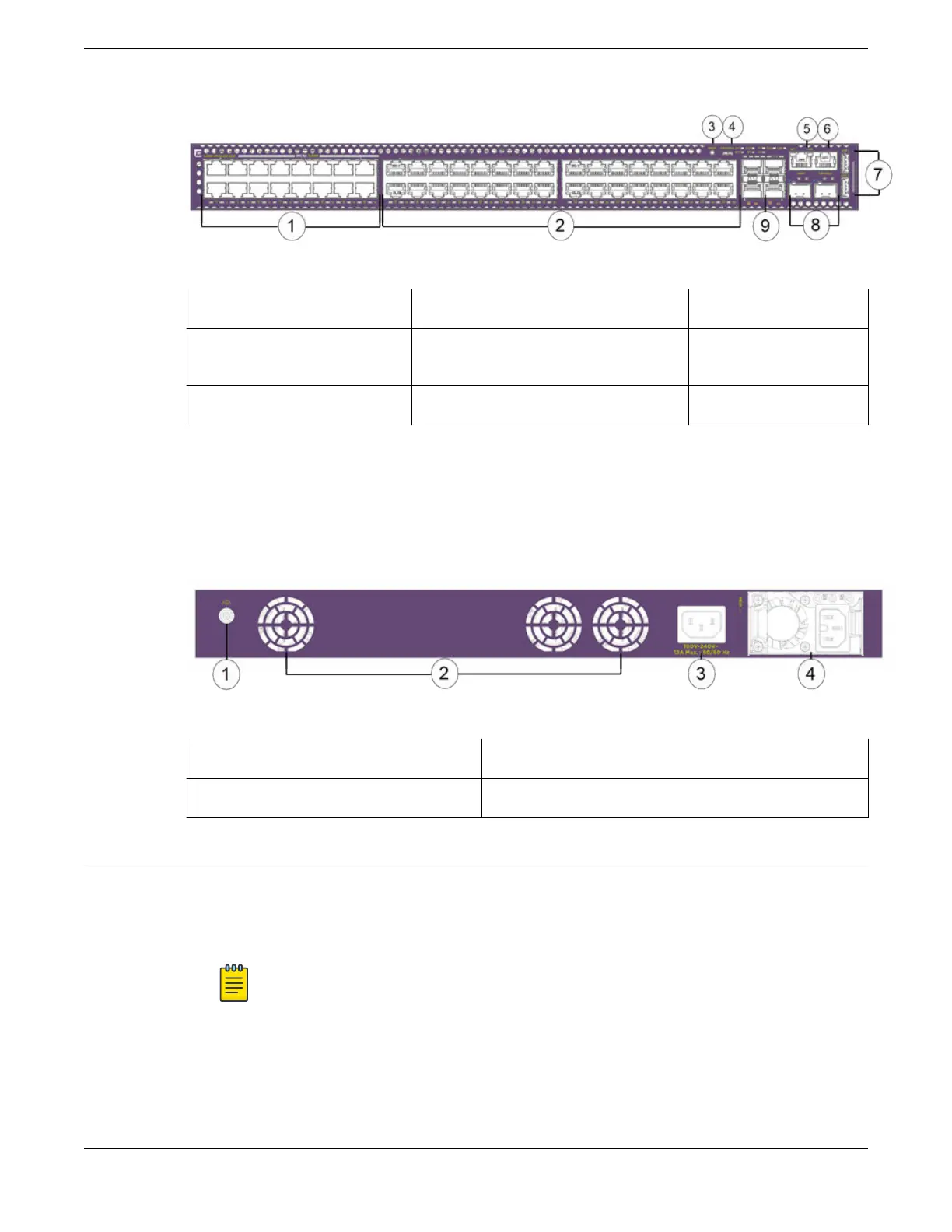

Figure 9: 5420F-16MW-32P-4XE Front Panel
1 = 100Mb/1Gb/2.5Gb ports 4 = USB Micro-B console port 7 = USB Type-A ports
2 = 10/100/1000BASE-T
ports
5 = 10/100/1000BASE-T out-of-
band management port
8 = SFP-DD stacking
ports
3 = Mode button 6 = RJ-45 serial console port 9 = 1/10G SFP+ ports
The rear panel of the switch includes:
• 3 xed fan modules
• Grounding lug
• 1 AC power inlet connector
• 1 power supply slot
Figure 10: 5420F-16MW-32P-4XE Rear Panel
1 = Grounding lug
3 = AC power inlet connector
2 = Fixed fan modules 4 = Power supply slot
5420F-16W-32P-4XE Switch Features
The front panel of the 5420F-16W-32P-4XE switch includes:
• 16 10/100/1000BASE-T full/half duplex (autosensing) MACsec capable ports with
802.3bt Type 4 PoE (90W).
Note
Half-duplex is not supported on these ports when operating at 1Gbps.
• 32 10/100/1000BASE-T full/half duplex (autosensing) MACsec capable ports with Type
2 PoE+ (30W).
• 4 1/10Gb SFP+ MACsec capable uplink ports (unpopulated)
• 2 Stacking/SFP-DD ports (unpopulated)
ExtremeSwitching 5420 Series Overview 5420F-16W-32P-4XE Switch Features
ExtremeSwitching 5420 Series Hardware Installation Guide 21
