Table 13: Extreme Networks 40Gb Direct-Attach Cables (continued)
Cable Type Part Number Length
QSFP+ to 4xSFP+ Breakout cable AA1404033-E6 1 meter
AA1404035-E6 3 meters
AA1404036-E6 5 meters
AA1404041-E6 10 meters active
optical
Use RJ45 Connector Jackets
Use RJ45 cable with connector jackets that are ush with the connector or that have
connectors with a no-snag feature.
Using cable with jackets that are wider than the connectors can cause:
• Connectors that are not properly aligned with the port.
• Crowded cable installation, which can cause connectors to pop out of the port.

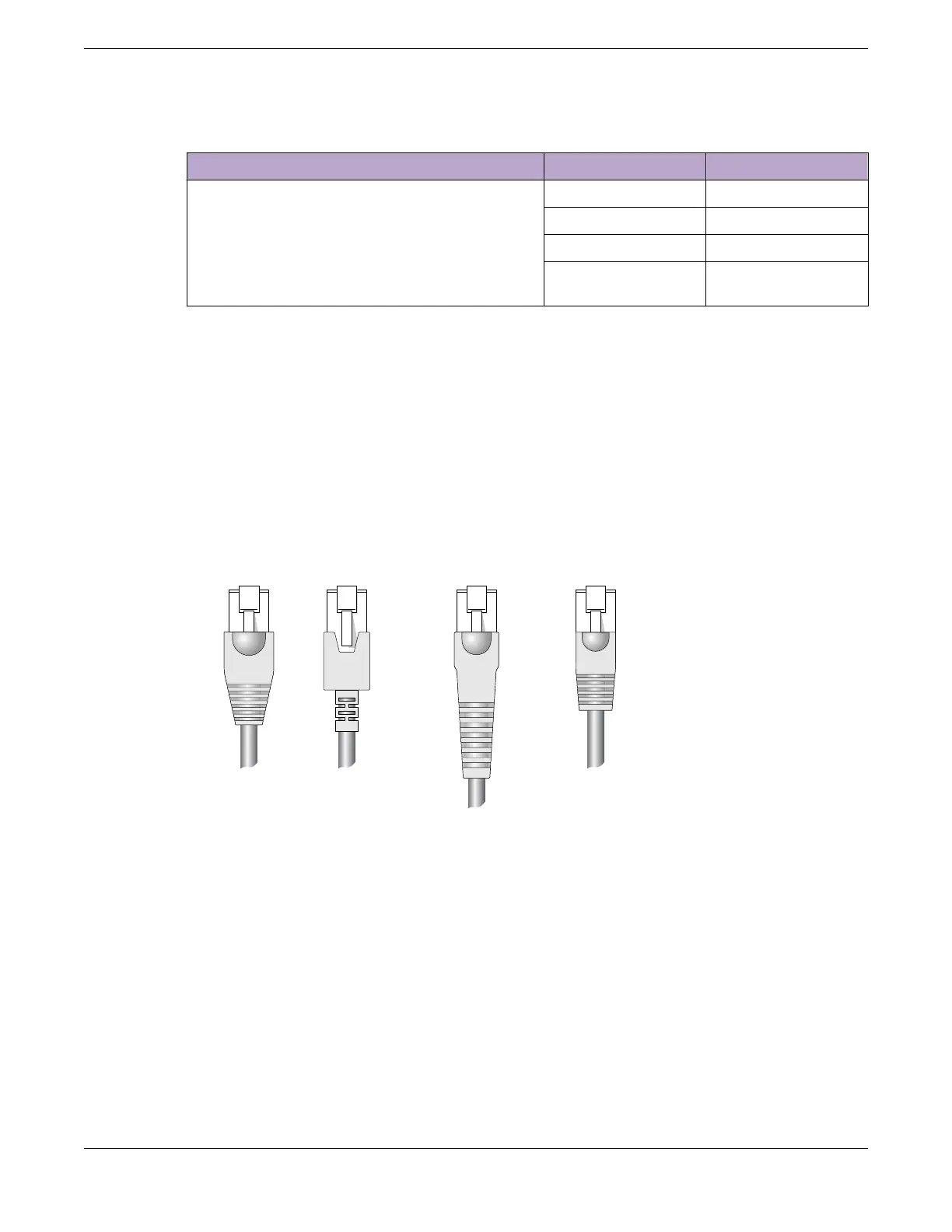

Figure 32 shows examples of recommended and non-recommended connector jacket
types.
0.1" = 1mm actual
39.37% : 254%
SPG_001
Not recommended
Better
Best
Figure 32: RJ45 Connector Jacket Types
Prevent Radio Frequency Interference (RFI)
If you use UTP cabling in an installation, take precautions to avoid radio frequency (RF)
interference.
RF interference can cause degradation of signal quality, and, in an Ethernet network
environment, can cause excessive collisions, loss of link status, or other physical layer
problems that can lead to poor performance or loss of communication.
Site Preparation Use RJ45 Connector Jackets
ExtremeSwitching 5420 Series Hardware Installation Guide 51
