2. Repeatedly fold the cleaning pads in half, as shown above. Fold twice on the long side, then turn
90° and fold twice more to create a soft pad that is about 30 mm (1.18 in) long.

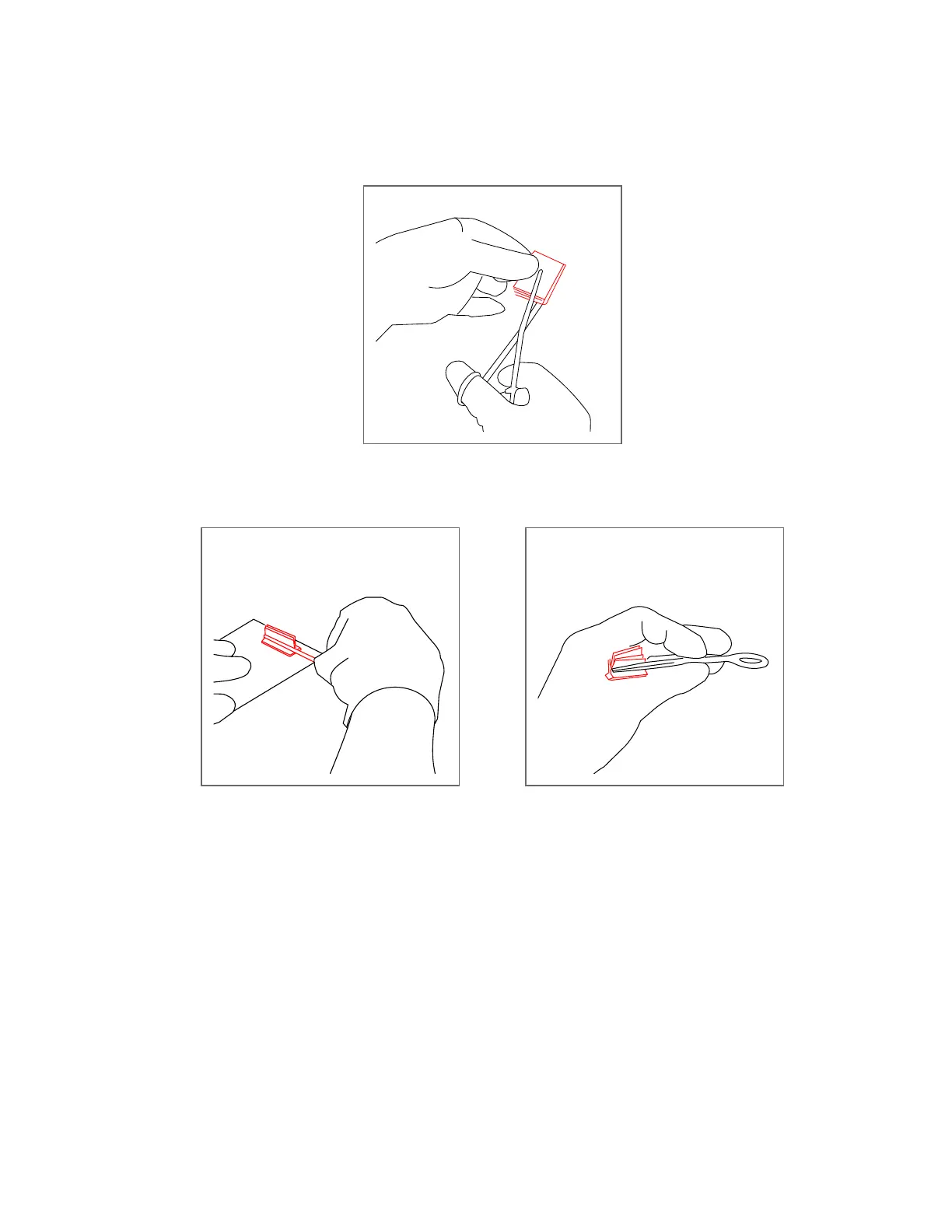

Figure 8-5 Fix the cleaning pad
3. Use the forceps to fix the cleaning pad, as shown above. Leave at least 2-3 mm (0.078 in - 0.118 in)
between the edge of the pad and the forceps.
Figure 8-6 Creating a T-shaped cleaning pad (1) Figure 8-7 Creating a T-shaped cleaning pad (2)
FARO
®
Focus Premium Laser Scanner User Manual
Chapter 8: Maintenance
FARO Focus Premium (March 2022) Page125of157
