Faro Focus Premium - Front Side

Front Side

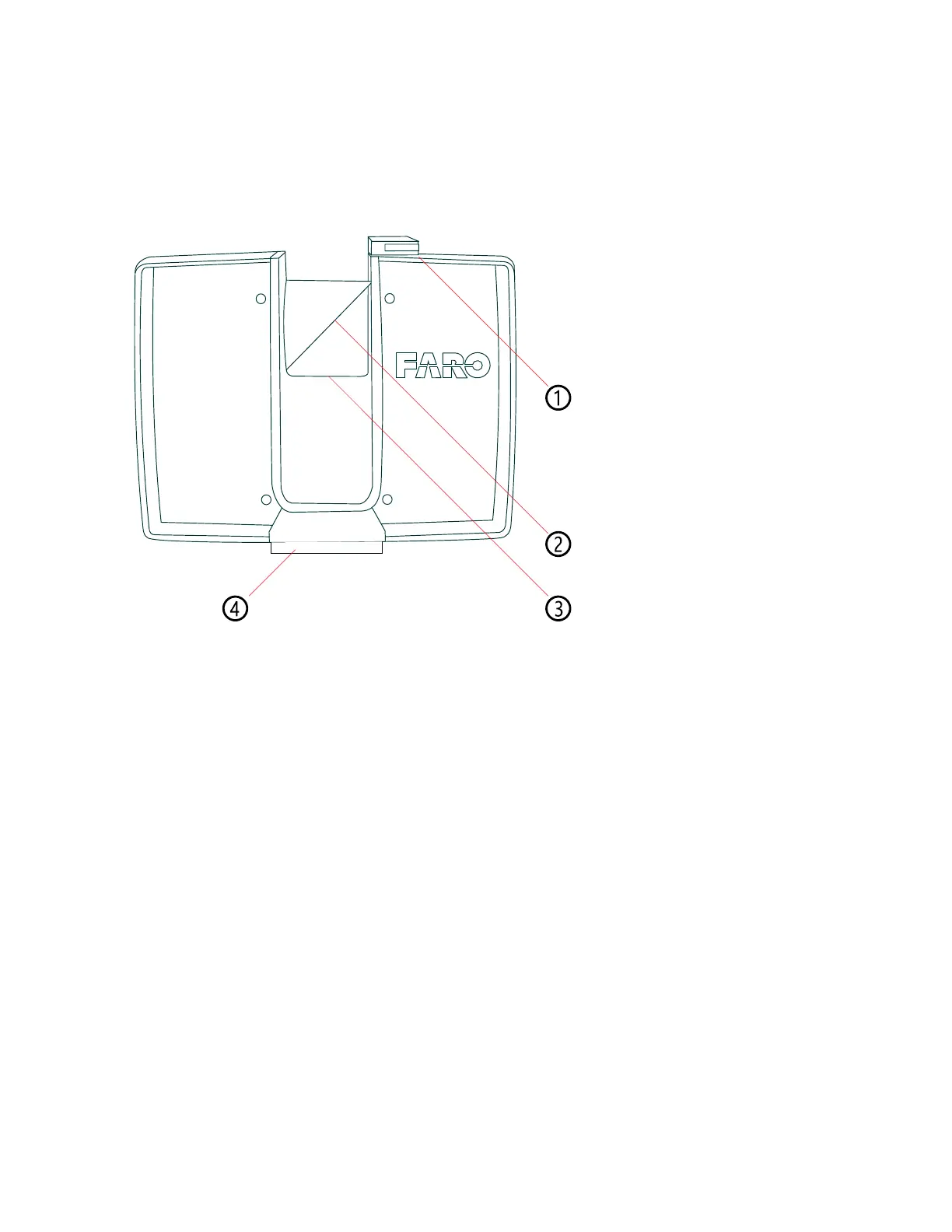

Figure 4-3 Front View of the FAROFocus Premium
①
Status Indicator
②
Scanner mirror - For safety and cleaning instructions,
see Mechanical Safety on page12 and Cleaning Instructions for Optics on page120.
③
Reference area - Used for self-referencing the distance measurements while scanning. Keep this area
clean and do not peel of the sticker.
④
Scanner mount
FARO
®
Focus Premium Laser Scanner User Manual
Chapter 4: Parts and Their Functions
FARO Focus Premium (March 2022) Page17of157
