FARO

Laser Scanner Focus

X 130 Manual

January 2014

Chapter 4: Parts and their Functions

Inside the cover

 SD card slot

 Micro USB port - Without function yet; reserved for future use.

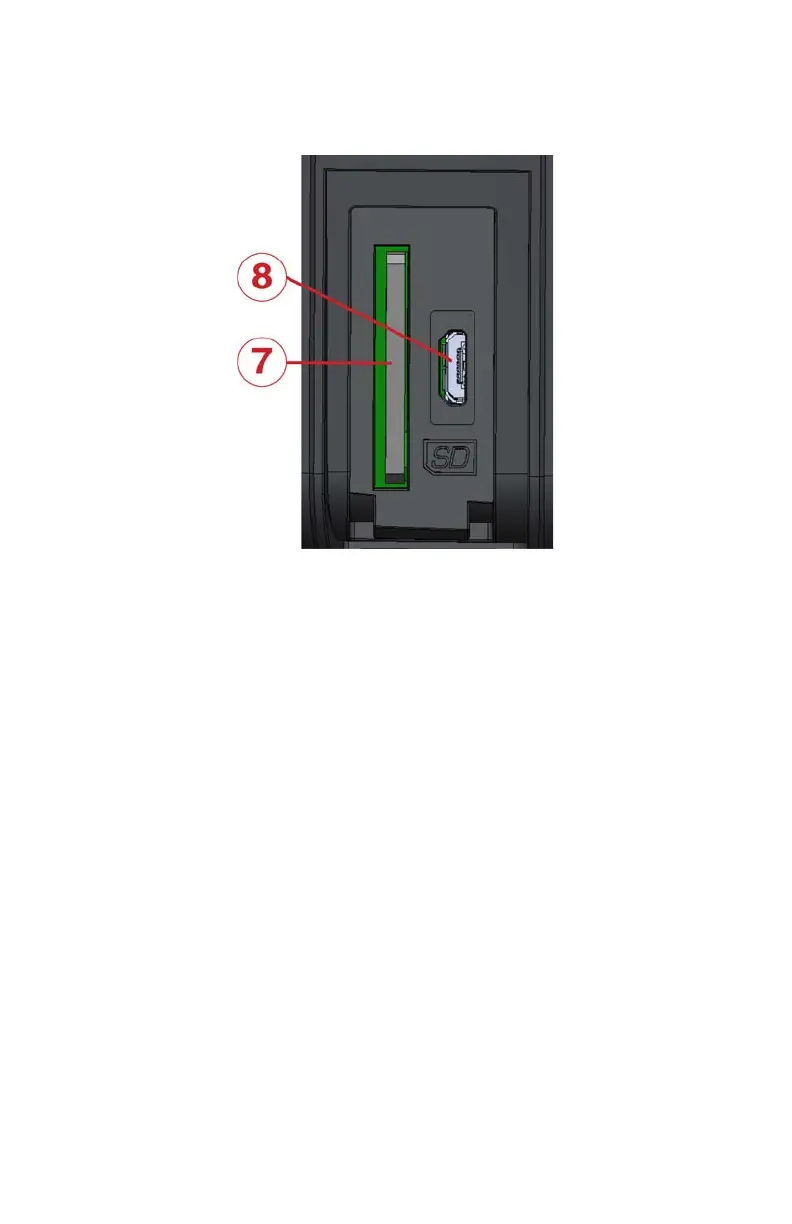

Figure 4-2 SD Memory Card Slot
