21
Chapter 4: Parts and their Functions
Left Side (Battery / Sensor Side)
 Battery cover with FCC compliance statement on the inside.
 Battery compartment
 Battery fastener - push the fastener to release the battery.
 LED sensor side

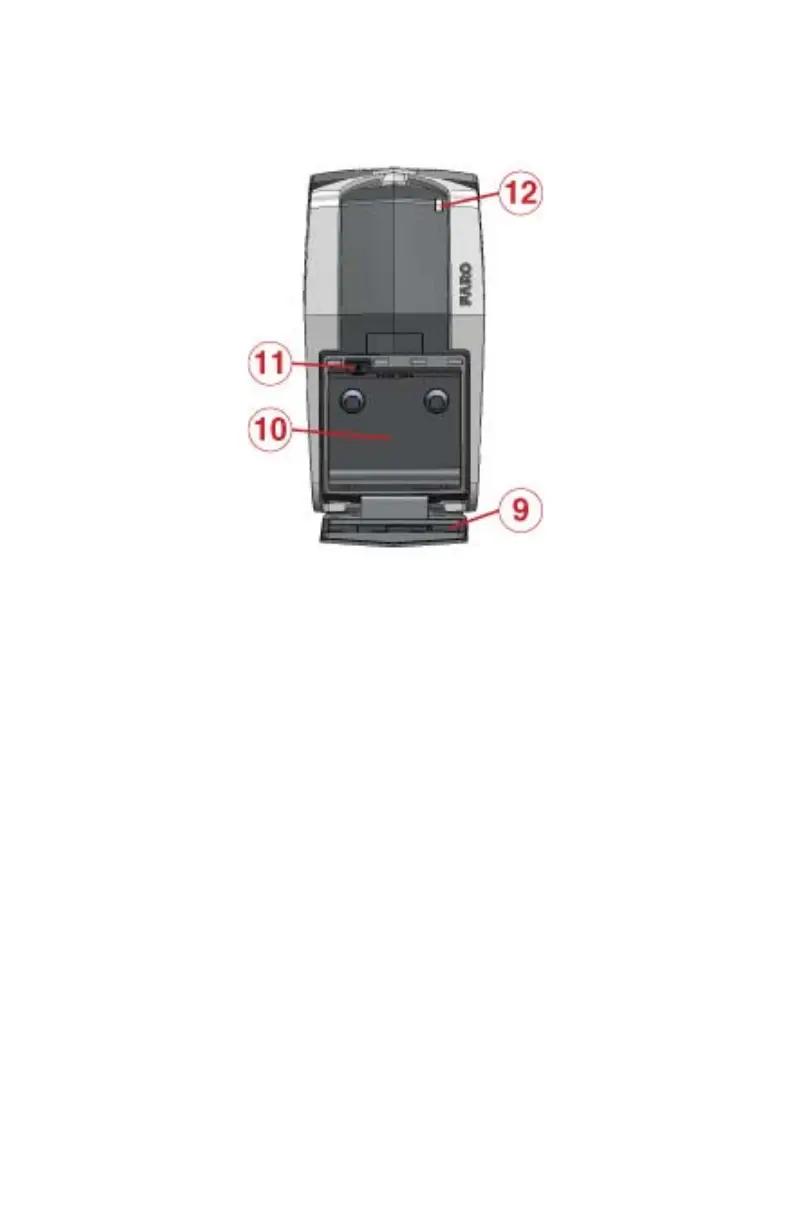

Figure 4-3 Sensor Side of the Focus
3D
X 130
