FARO
®
Laser Scanner Focus
3D
X 130 Manual
January 2014
22
Chapter 4: Parts and their Functions
Front
Scanner mirror - for safety and cleaning instructions see “Mechanical
Security” on page 13 and “Cleaning Instructions for Optics” on page 15.
Scanner mount - see Figure 4-5 for more information.
LED on scanner mount
Power socket - for the pin assignment of the power socket, see “Focus
3D
X
130 Power Socket” on page 118.
Reference area - used to adjust distance measurements while scanning. Avoid
soiling this area and do not touch it.

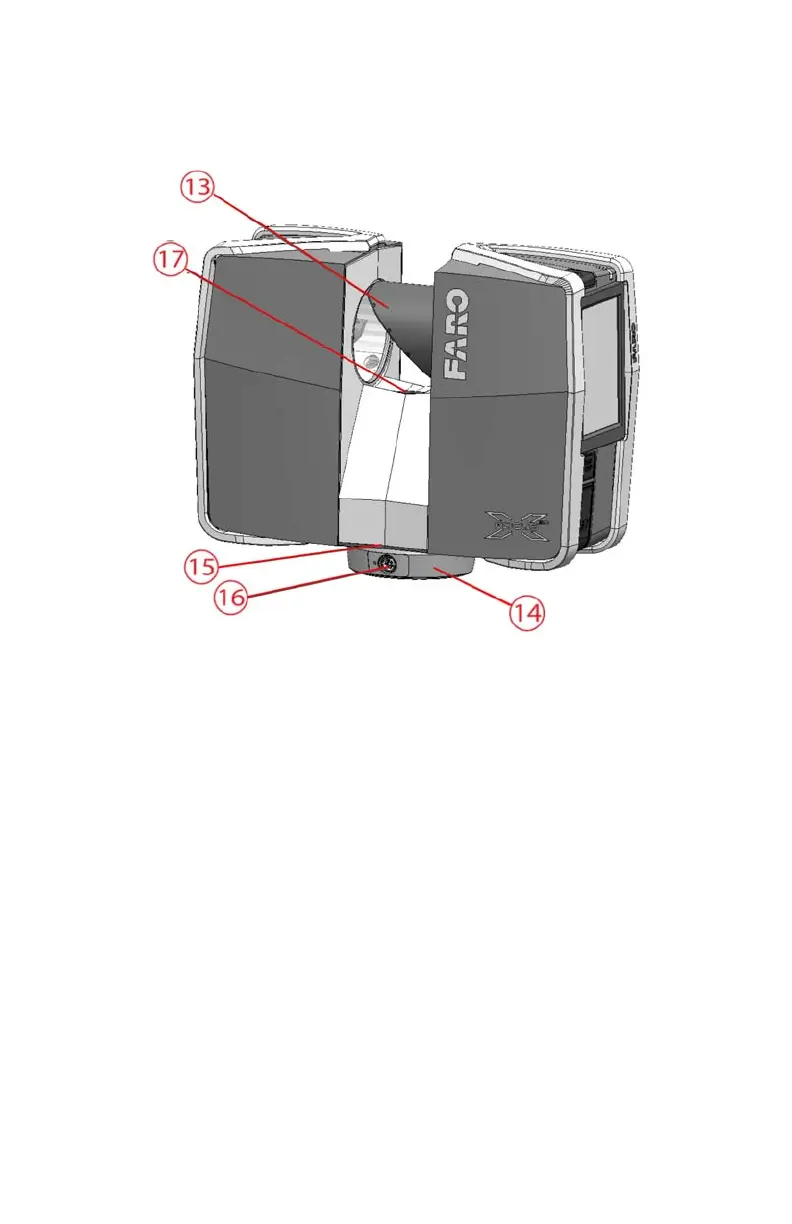

Figure 4-4 Side View of the Focus
3D
X 130
