Farr HD8625 - Page 101

Technical Manual
hD8625 8-
5
/
8
” 35K Tong
5.19

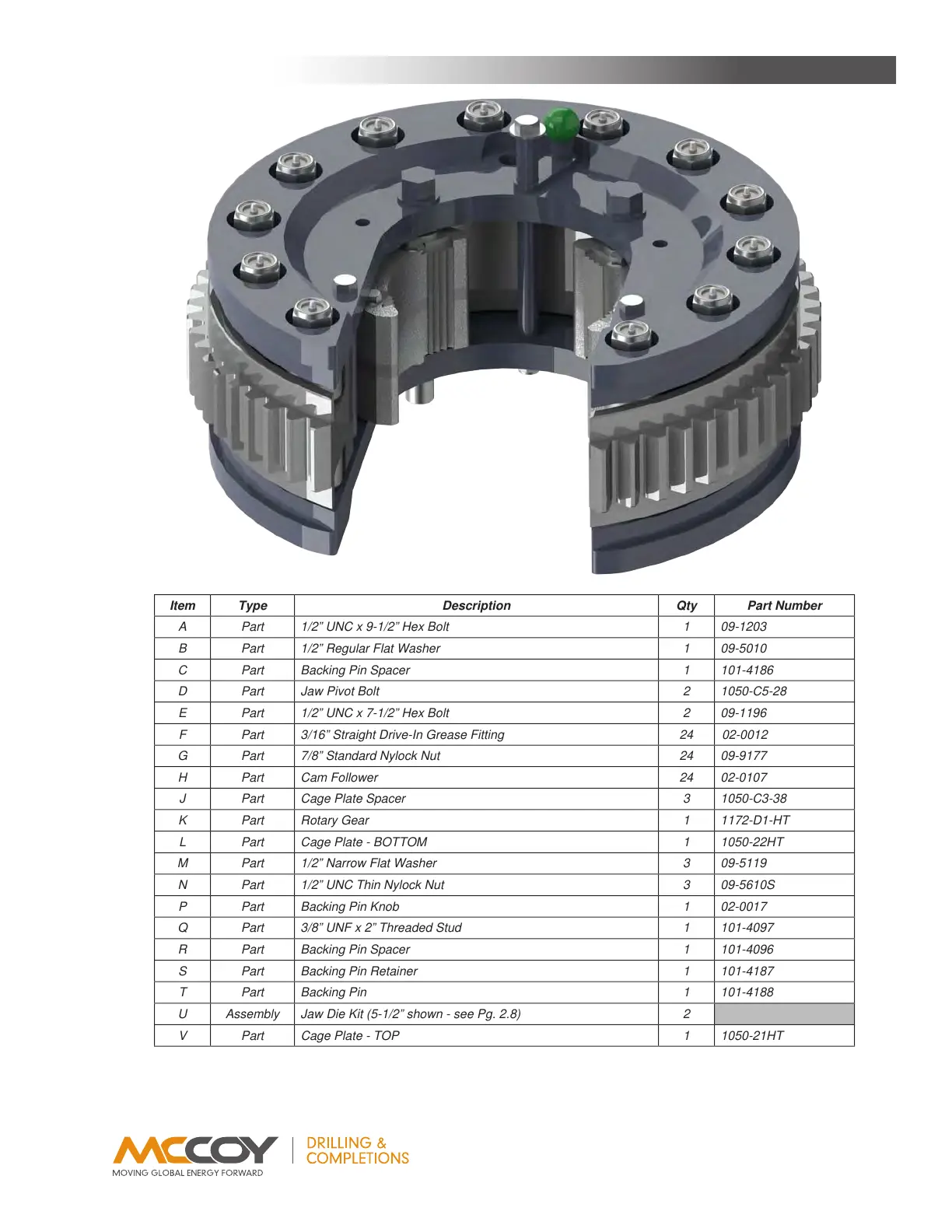

roTary asseMbly
Item Type Description Qty Part Number
A Part 1/2” UNC x 9-1/2” Hex Bolt 1 09-1203
B Part 1/2” Regular Flat Washer 1 09-5010
C Part Backing Pin Spacer 1 101-4186
D Part Jaw Pivot Bolt 2 1050-C5-28
E Part 1/2” UNC x 7-1/2” Hex Bolt 2 09-1196
F Part 3/16” Straight Drive-In Grease Fitting 24 02-0012
G Part 7/8” Standard Nylock Nut 24 09-9177
H Part Cam Follower 24 02-0107
J Part Cage Plate Spacer 3 1050-C3-38
K Part Rotary Gear 1 1172-D1-HT
L Part Cage Plate - BOTTOM 1 1050-22HT
M Part 1/2” Narrow Flat Washer 3 09-5119
N Part 1/2” UNC Thin Nylock Nut 3 09-5610S
P Part Backing Pin Knob 1 02-0017
Q Part 3/8” UNF x 2” Threaded Stud 1 101-4097
R Part Backing Pin Spacer 1 101-4096
S Part Backing Pin Retainer 1 101-4187
T Part Backing Pin 1 101-4188
U Assembly Jaw Die Kit (5-1/2” shown - see Pg. 2.8) 2
V Part Cage Plate - TOP 1 1050-21HT
