Technical Manual
THE DOOR IS AN IMPORTANT PART OF THE STRUCTURAL INTEGRITY OF THE TONG. IT IS
IMPERATIVE TO KEEP A SECURE FIT AT THE DOOR IN ORDER TO MAINTAIN PROPER GEAR
ALIGNMENT, AND TO MINIMIZE THE POSSIBILITY OF DAMAGE TO THE GEAR TRAIN WHEN
OPERATING THE TONG AT SPECIFIED TORQUE. A CLOSED DOOR ALSO ENSURES SAFETY OF
OPERATING PERSONNEL.
3. Shifter Detent Force Adjustment:
Overtimeweartotheshiftingshaft,weartothedetentball,andlossofspringtensioninthedetentspringmayresultinalooseor
“sloppy”fitwithinthetopshifterbushing.Thedetentpressuremaybeincreasedorotherwiseadjustedbylooseningthe7/16”UNF
lockingjamnut,andturningthe7/16”UNFdetentbolt.Shouldadequatedetentactionnotbeachieved,theshiftingshaft,detentball,
ordetentspring(orpossiblyallthree)mayneedtobereplaced(seePp.5.12-5.13).
Door Latch Adjustment (Continued);

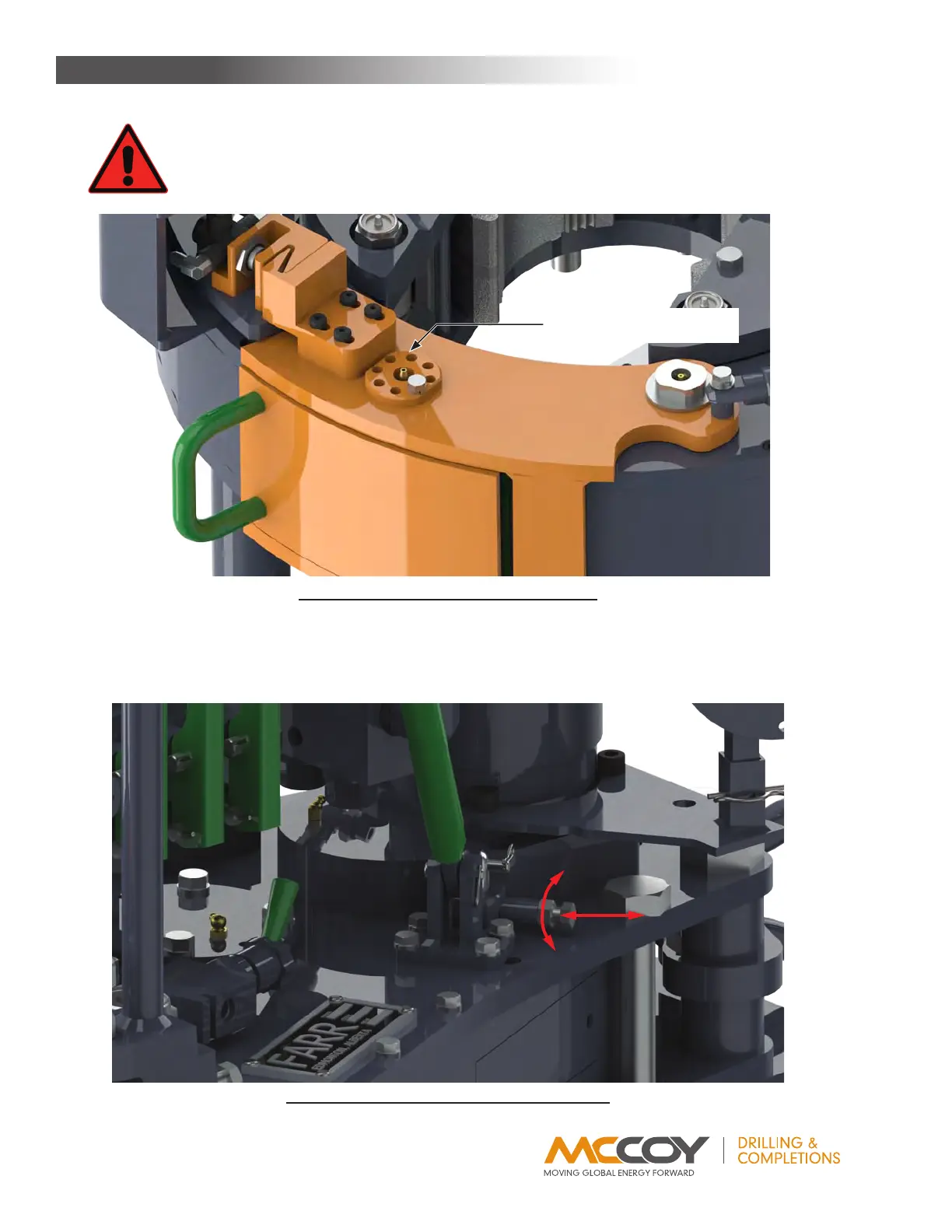

IllustratIon 3.e.2: tong Door latCH aDjustment
IllustratIon 3.e.3: sHIfter Detent forCe aDjustment
MainTenance
DOOR LATCH
ADJUSTMENT CAM
