3.4

hD8625 8-

” 35K Tong

Technical Manual

5. Pinion

Applygreasetothepinionbearingsthroughthegreasefittingslocatedonthebearingcapsonthetopandbottomfacesofthetong

(twolocationstop,twolocationsbottom).

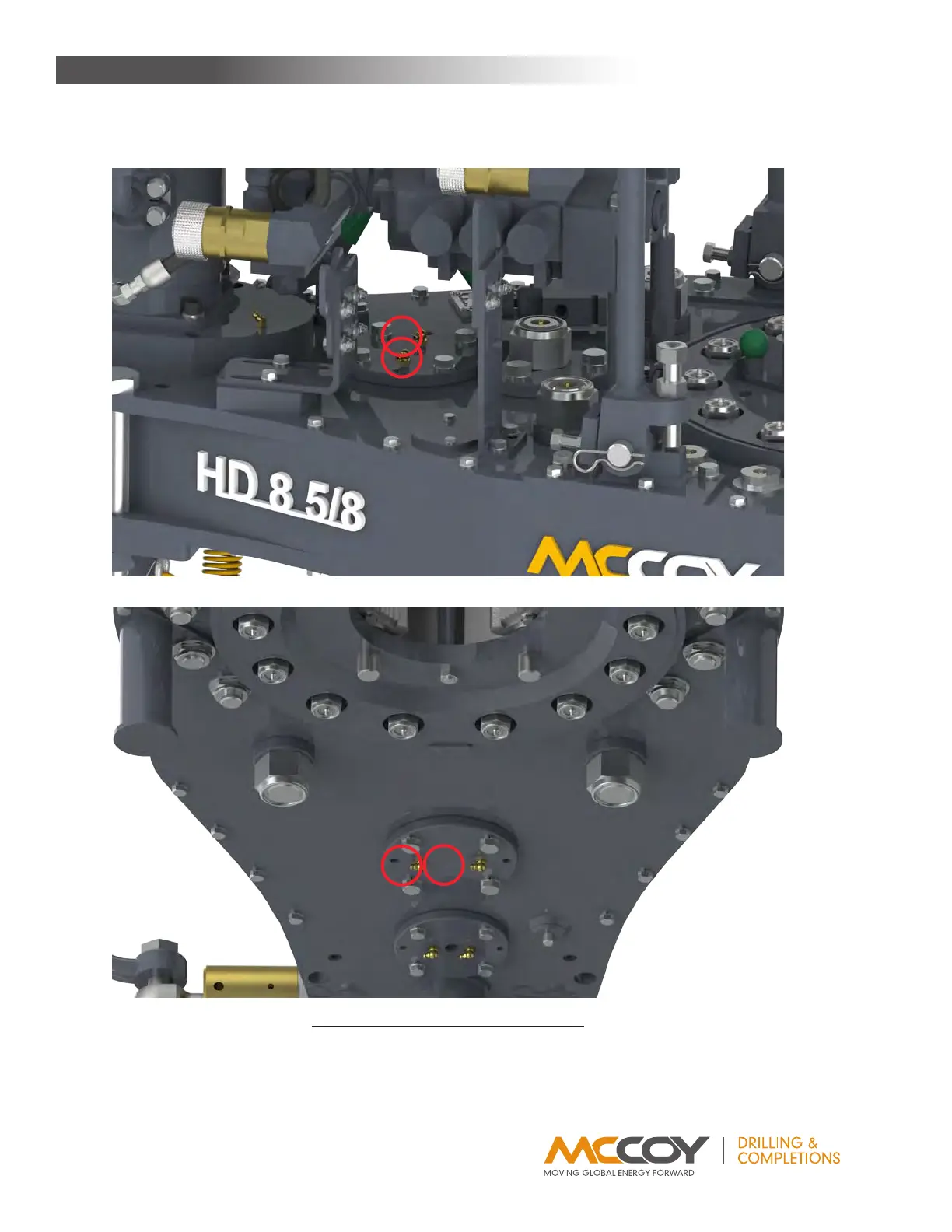

IllustratIon 3.D.5: PInIon luBrICatIon PoInts

MainTenance
