” 35K Tong
3.5
6. Clutch
Applygreasetotheclutchbearingsthroughthetwogreasefittingslocatedontheclutchbearingcaponthebottomfaceofthetong,
andthesinglegreasefittingrecessedintotheendoftheclutchshaft.(threelocationstotal).

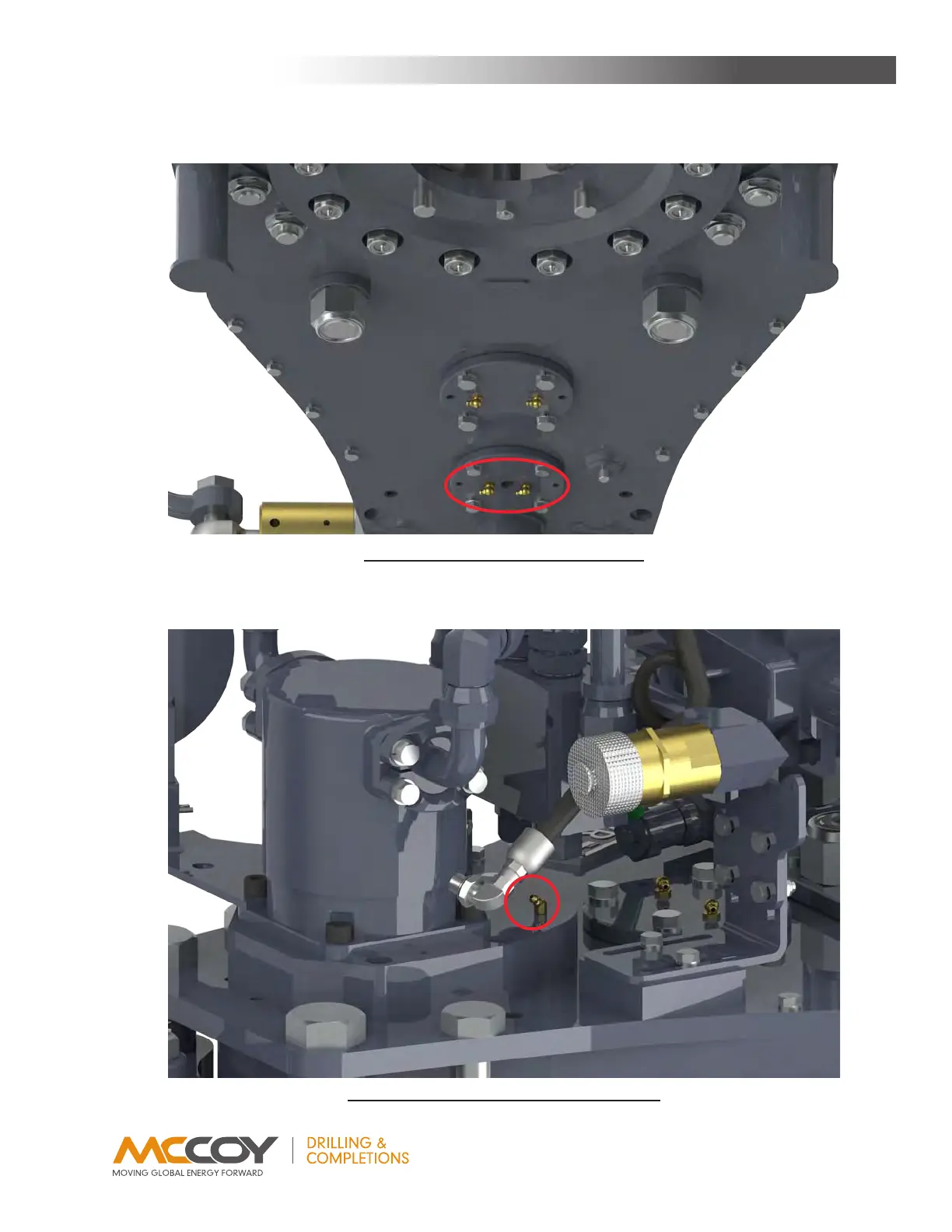

IllustratIon 3.D.6: ClutCH luBrICatIon PoInts
7. Motor Mount
Applygreasetothemotorgear/clutchdrivegearthroughthegreasefittinglocatedonthetopofthemotormount(onelocationonly).
IllustratIon 3.D.7: motor mount luBrICatIon PoInt
